DIGITAL MULTIMETER - CAT III 600 V / CAT IV 300 V - 1999 COUNTS

DVM895
Available
€64.95
Tax included

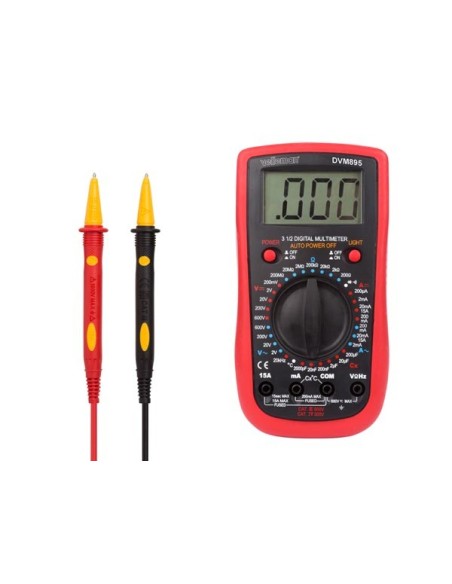

DIGITAL MULTIMETER - CAT III 600 V / CAT IV 300 V - 1999 COUNTS


Specification(s):
  • CAT III 600V / CAT IV 300 V
  • automatic polarity indication
  • automatic zero adjustment
  • voltage measurements: 600 VAC and 600 VDC max.
  • current measurements: DC 15 A and AC 15 A max.
  • resistance measurements: 200 MOhm max.
  • capacitance measurements: 200 µF max.
  • K-type thermocouple measurements: -50°C to 800°C
  • frequency measurements: 20 kHz

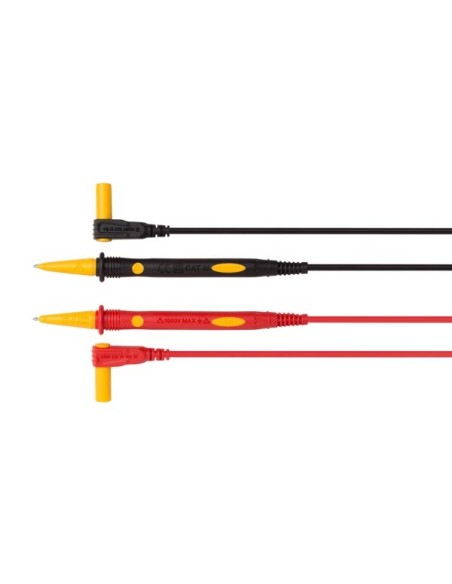

  • with separate test leads (incl.): [product name=TLM72]TLM72[/product]
  • pollution degree 2
  • [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
Feature(s):
  • Physical properties
  • Cable length: 0.75 m
  • Display height: 36 mm
  • Display width: 62 mm
  • Backlight: Yes
  • Maximum digits display: 1999
  • Display type: LCD
  • Electrical data
  • AC current measurements: 15 A, 2 mA, 20 mA, 200 µA, 200 mA
  • AC current:
    • basic accuracy: ± (1.5% rdg + 3 digits), ± (2.0% rdg + 3 digits) for 200mA range, ± (2.5% rdg + 5 digits) for 15 A range
    • overload protection: 500 mA / 600 V, 15 A / 600 V fuse
    • frequency range: 40-500 Hz
  • AC voltage measurements: 0-2 V, 20 V, 200 V, 600 V
  • AC voltage:
    • basic accuracy: ± (0.8% rdg + 3 digits) , ± (1.2% rdg + 3 digits) for 600 V range
    • input impedance: 1 megohm for 2 V range, 10 megohm for other ranges
    • frequency range: 40-500 Hz
    • maximum input: 600V DC or AC rms
    • test A: <= or <=
    • test B: >= or >=
  • Audible continuity measurement: Yes
  • Audible continuity:
    • built-in buzzer sounds if resistance is less than 50 Ohm
    • test voltage: approx. 3 V
  • Automatic polarity indication: Yes
  • Capacity measurements: 2 µF, 20 nF, 200 µF, 200 nF, 2000 pF
  • Capacity:
    • basic accuracy: ± (2.5% rdg + 10 digits) for 2000 pF range, ± (2.5% rdg + 5 digits) for 20nF to 20 µF range, ± (5.0% rdg + 10 digits) for 200 µF range
    • overload protection: 500 mA / 600 V fuse
  • DC current measurements: 0.2 mA, 15 A, 2 mA, 20 mA, 200 µA, 200 mA
  • DC current:
    • basic accuracy: ± (1.2% rdg + 2 digits), ± (1.5% rdg + 2 digits) for 200mA range, ± (2.0% rdg + 3 digits) for 15 A range
    • overload protection: 500 mA / 600 V, 15 A / 600 V fuse
  • DC voltage measurements: 0-200 mV, 2 V, 20 V, 200 V, 600 V
  • DC voltage:
    • basic accuracy: ± (0.5% rdg + 2 digits) , ±(0.8% rdg + 2 digits) for 600 V range
    • input impedance: 10 MOhm
    • maximum input: 600 V
    • overload protection: 600 V DC or AC rms
  • Diode test: Yes
  • Diode test specifications:

    test voltage: approx. 3 V (reversed DC voltage)

  • Frequency measurements: 20 kHz
  • Frequency:
    • basic accuracy: ± (2.0% rdg + 5 digits)
    • overload protection: 600 VDC or AC rms
    • sensitivity: sine wave 0.5 V rms
  • Fuse type: F 0.50 A / 600 VAC / 500 VDC, 5 x 20 mm, breaking capacity 1 kA, F 15 A / 1000 VAC / 1000 VDC, 6 x 32 mm, breaking capacity 10 kA
  • Out of range indication: Yes
  • Temperature measuring Celsius specifications:
    • -50-150°C / 150-800°C
    • basic accuracy: ± (3°C + 3 digits) for -50-150°C range, ± (3% + 3 digits) for 150-800°C range
    • overload protection: 500 mA / 600V fuse
    • NiCr-NiSi sensor
    • K thermocouple probe: included
  • Resistance measurements: 0-200 Ohm, 2 kOhm, 2 MOhm, 20 kOhm, 20 MOhm, 200 kOhm, 200 MOhm
  • Resistance:
    • basic accuracy: ± ( 1.0% rdg +3 digits) for 200 Ohm range, ± (1.0% rdg + 2 digits) for 2 KOhm to 2 Mohm range, ± (1.5% rdg + 3 digits) for 20 MOhm range, ± (5.0% rdg + 5 digits) for 200 MOhm range
    • overload protection: 600 VDC or AC rms
  • Transistor test: No
  • Technical data
  • Pollution degree: 2
  • Data-hold function: No
  • Safety rating: CAT III / 600 V, CAT IV / 300 V
  • Voltage tester type: AC/DC
  • Automatic power-off function: Yes
  • Environmental data
  • IP rating: IPx0
  • Usage location: Indoor only
  • Maximum storage humidity: <  90 %
  • Maximum operating humidity: <  80 %
  • Operating temperature °C: 0-40 °C
  • Operating temperature °F: 32-104 °F
  • Storage temperature °C: -20-60 °C
  • Storage temperature °F: -4-140 °F
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
  • Temperature measuring range °C: -50-800 °C
  • Range setting: Manual
  • Power supply
  • Number of batteries: 1
  • Batteries: Yes
  • Battery IEC size: E (6LR61, 6LP3146, 6F22, 6KR61, 6HR61 ,1604A, 1604D, 1604LC, 7.2H5, 11604, 11604M, PP3, 9 volts, 006P, MN1604)
  • Battery composition: Alkaline
  • Low-battery indicator: Yes
  • Included
  • Set contents: test lead probe : CAT III 1000 V / CAT IV 600 V, 15 A, L = 75 cm
  • Product basic info
  • Colour: Black
  • Additional colour: Red
  • Depth: 40 mm
  • Height: 190 mm
  • Weight: 300 g
  • Width: 100 mm
  • Material: ABS


  • EAN: 5410329642648
