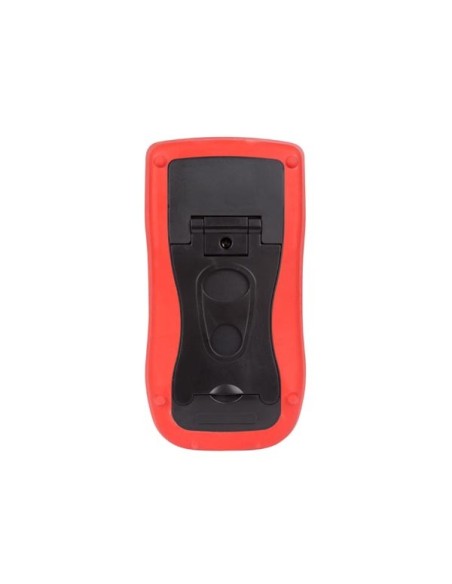

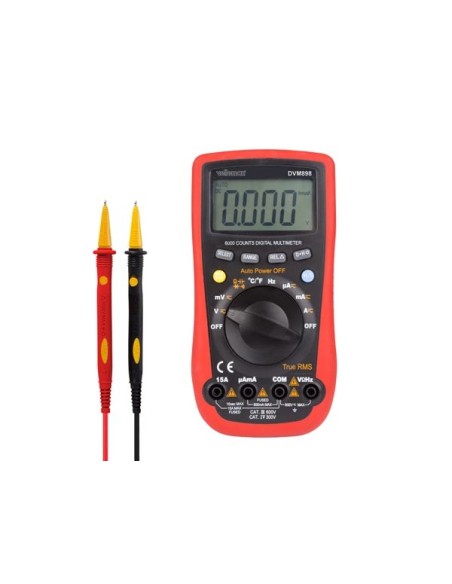

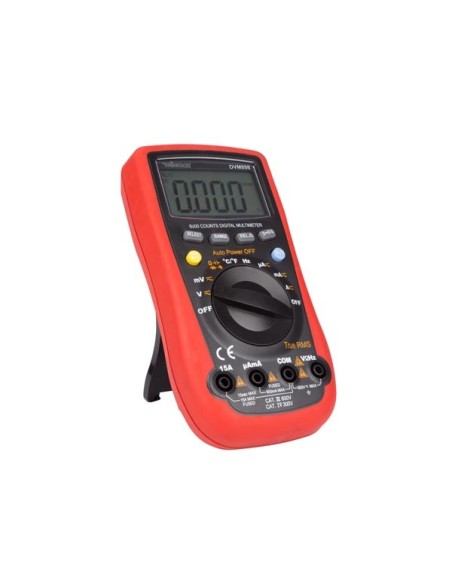

DIGITAL MULTIMETER - CAT III 600V / CAT IV 300V - 15A - 6000 COUNTS - TRUE RMS
DVM898
Out-of-Stock
€70.25
Tax included
DIGITAL MULTIMETER - CAT III 600V / CAT IV 300V - 15A - 6000 COUNTS - TRUE RMS
Specification(s):
- CAT III 600V / CAT IV 300V
- AC TRUE RMS
- auto and manual range function
- automatic polarity indication
- automatic zero adjustment
- voltage measurements: 600 VAC and 600 VDC max.
- current measurements: DC 15 A max. and AC 15 A max.
- resistance measurements: 60 MOhm max.
- capacitance measurements: 99.99 mF max.
- frequency measurements: 9.999 MHz max.
- temperature measurements: -20°C to 1000°C (-4°F to 1832 °F)

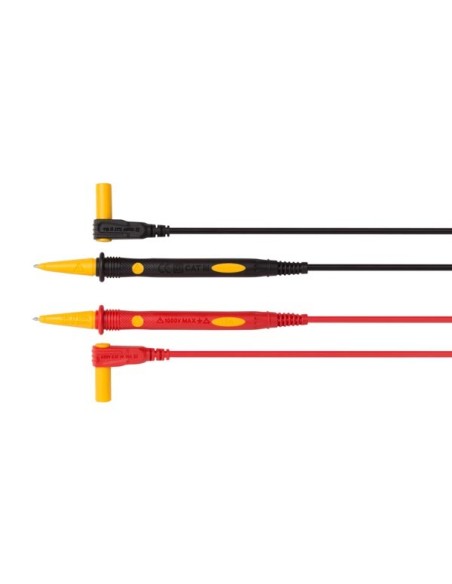

- with separate test leads (incl.): [product name=TLM72]TLM72[/product]
- pollution degree 2
- [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
- Physical properties
- Cable length: 0.75 m
- Display height: 28 mm
- Display width: 60 mm
- Backlight: Yes
- Maximum digits display: 6000
- Display type: LCD
- Electrical data
- AC current measurements: 0-600 µA, 15 A, 6 A, 600 mA, 6000 µA
- AC current:
- basic accuracy: ± (1.5% rdg + 3 digits) for 0 to 600 mA range, ± (2.5% rdg + 5 digits) for 6 A to 15 A range
- frequency range: 40 Hz - 1 kHz
- overload protection: 0.8 A / 600 V fuse in µA and mA range; 15 A / 1000 V fuse in 15 A range
- AC voltage measurements: 0-60 mV, 6 V, 60 V, 600 mV, 600 V
- AC voltage:
- basic accuracy: ± (1.2% rdg + 3 digits) for 0 to 600 mV range , ± (0.8% rdg + 3 digits) for 6V to 600 V range, ± (1.2% rdg + 3 digits) for 600V
- input impedance: > 10 MOhm
- frequency range: 40 Hz - 1 kHz
- overload protection: 600V DC or AC rms
- AC true RMS
- Audible continuity measurement: Yes
- Audible continuity:
- built-in buzzer sounds if resistance is less than 50 Ohm
- test voltage: approx. 1.0 V
- Automatic polarity indication: Yes
- Capacity measurements: 0-9.999 nF, 9.999 µF, 9.999 mF, 99.99 µF, 99.99 mF, 99.99 nF, 999.9 nF
- Capacity:
- basic accuracy: ± (3.0% rdg + 10 digits); ± (2.5% rdg + 5 digits) for 99.99 nF to 9.999 µF range; ± (5.0% rdg + 10 digits) for 99.99 µF; ± (10.0% rdg + 20 digits) for 999.9 µF to 99.99 mF range
- overload protection: 600 V DC or AC rms
- DC current measurements: 0-600 µA, 15 A, 6 A, 60 mA, 600 mA, 6000 µA
- DC current:
- basic accuracy: ± (1.2% rdg + 2 digits) for 0 to 600 mA range, ± (2.0% rdg + 3 digits) for 6 A to 15 A range
- overload protection: 0.8 A / 600 V fuse in µA and mA range; 15 A / 1000 V fuse in 15 A range
- DC voltage measurements: 0-60 mV, 6 V, 60 V, 600 mV, 600 V
- DC voltage:
- basic accuracy: ± (0.8% rdg + 2 digits) , ± (0.5% rdg + 2 digits) for 600mV to 600 V range, ± (0.8% rdg + 2 digits) for 600V
- input impedance: > 10 MOhm
- overload protection: 600 V DC or AC rms
- Diode test: Yes
- Diode test specifications:
test voltage: approx. 3.2 V
- Duty cycle:
- basic accuracy: ± (2.0% rdg + 2 digits)
- sensitivity: sine wave 0.6 V rms
- overload protection: 600 V DC or AC rms
- Frequency measurements: 0-9.999 Hz, 9.999 kHz, 9.999 MHz, 99.99 Hz, 99.99 kHz, 999.9 Hz, 999.9 kHz
- Frequency:
- basic accuracy: ± ( 0.1% rdg + 5 digits)
- sensitivity: sine wave 0.6 V rms (9.999 MHz = 1.5 V rms)
- overload protection: 600 V DC or AC rms
- Fuse type: F 0.50 A / 600 V, 5 x 20 mm, F 15 A / 1000 V, 5 x 20 mm
- Out of range indication: Yes
- Temperature measuring Celsius specifications:
- basic accuracy :
- ± (3 °C + 1 digit) for -20 0C to 150 °C range
- ± (3% rdg + 2 digits) for 151 °C to 1000 °C range
- basic accuracy :
- Temperature measuring Fahrenheit specifications:
- basic accuracy:
- ± (5 °F + 2 digits) for -4 °F to 302 °F range
- ± (3% rdg + 3 digits) for 303 °F to 1832 °F range
- basic accuracy:
- Resistance measurements: 0-600 Ohm, 6 kOhm, 6 MOhm, 60 kOhm, 60 MOhm, 600 kOhm
- Resistance:
- basic accuracy: ± ( 1.0% rdg +3 digits); ± (1.0% rdg + 2 digits) for 6 kOhm to 6 MOhm range, ± (1.5% rdg + 3 digits) for 60 MOhm range
- overload protection: 600 V DC or AC rms
- open circuit voltage: approx. 0.5 V
- Transistor test: No
- True RMS: No
- Duty cycle measurements: 0.1-99.9 %
- Technical data
- Data-hold function: Yes
- Safety rating: CAT III / 600 V, CAT IV / 300 V
- Voltage tester type: AC/DC
- Automatic power-off function: Yes
- Environmental data
- IP rating: IPx0
- Usage location: Indoor only
- Maximum storage humidity: < 90 %
- Maximum operating humidity: < 80 %
- Operating temperature °C: 0-40 °C
- Operating temperature °F: 32-104 °F
- Storage temperature °C: -20-60 °C
- Storage temperature °F: -4-104 °F
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Temperature measuring range °C: -20-1000 °C
- Temperature measuring range °F: -4-1832 °F
- Power supply
- Number of batteries: 1
- Batteries: Yes
- Battery IEC size: E (6LR61, 6LP3146, 6F22, 6KR61, 6HR61 ,1604A, 1604D, 1604LC, 7.2H5, 11604, 11604M, PP3, 9 volts, 006P, MN1604)
- Battery composition: Alkaline
- Low-battery indicator: Yes
- Included
- Set contents:
test lead probe : CAT III 1000 V / CAT IV 600 V, 15 A, L = 75 cm
- Product basic info
- Colour: Black
- Additional colour: Red
- Depth: 40 mm
- Height: 177 mm
- Weight: 320 g
- Width: 92 mm
- Material: ABS
- EAN: 5410329669683
