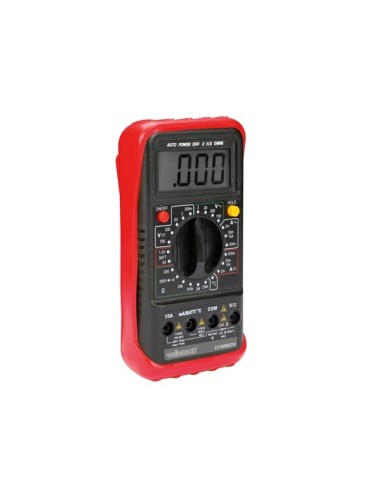

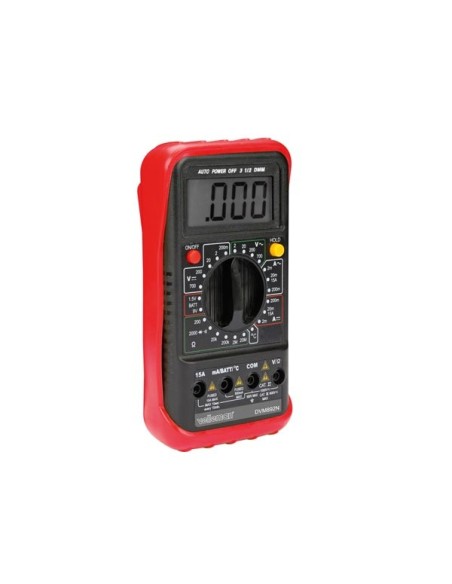

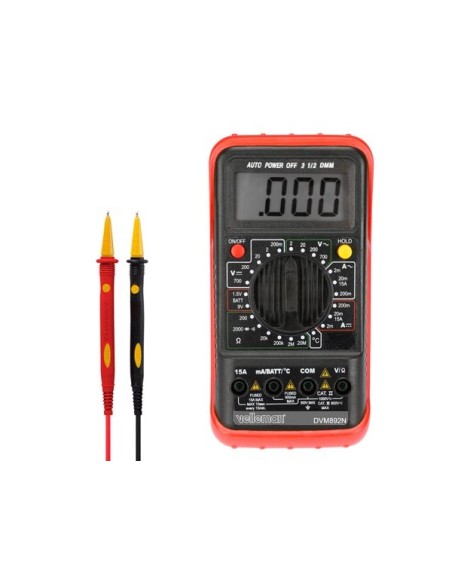

DIGITAL MULTIMETER - 24 RANGES / CAT II 700 V - CAT III 600 V / HOLD / AUTO POWER OFF / TEMP / 15 A AC & DC
DVM892N
Out-of-Stock
€47.95
Tax included
DIGITAL MULTIMETER - 24 RANGES / CAT II 700 V - CAT III 600 V / HOLD / AUTO POWER OFF / TEMP / 15 A AC & DC
Specification(s):
- CAT. II 700 V / CAT. III 600 V
- 24 ranges
- multimeter with automatic polarity indication and 3 ½-digit LCD display
- measurements: DC current up to 15A, AC and DC voltage up to 700 V resistance up to 20 megohm
- temperature, diode, battery and continuity test with buzzer
- low-battery indication and data-hold function

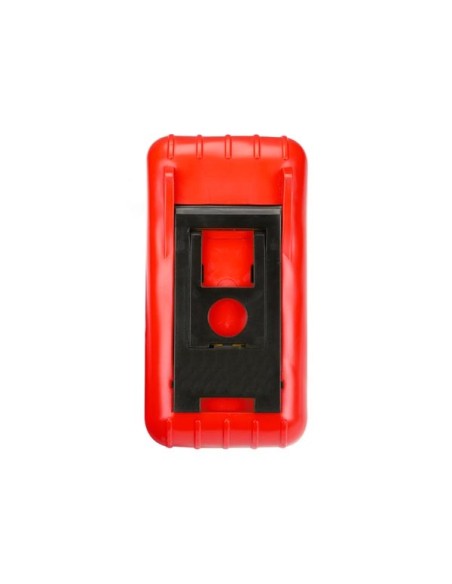

- with protective holster

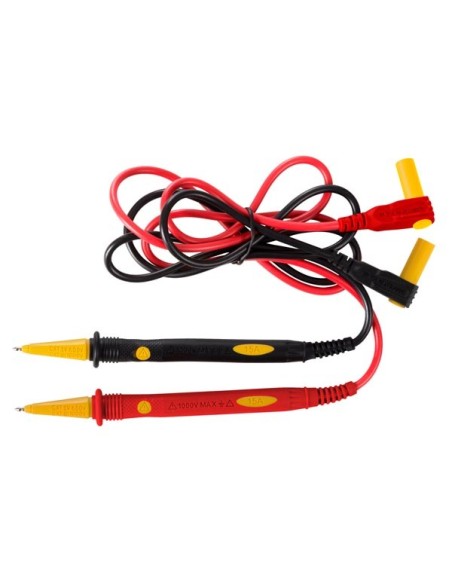

- with separate test leads (incl.): [product name=TLM72]TLM72[/product]
- [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
- Physical properties
- Cable length: 0.75 m
- Display height: 26 mm
- Display width: 61 mm
- Backlight: No
- Maximum digits display: 1999
- Display type: LCD
- Electrical data
- AC current measurements: 15 A, 2 mA, 20 mA, 200 mA
- AC current:
- basic accuracy: ± 1.5% of rdg ± 3 digits for 2 m - 20 mA range / ± 2.0% of rdg ± 3 digits for 200 mA range / ± 2.5% of rdg ± 5 digits for 15 A range
- overload protection: 0.5 A / 1000 V fuse in mA range, 15 A / 1000 V fuse in 15 A range
- frequency range: 40-500 Hz
- AC voltage measurements: 2 V, 20 V, 200 V, 700 V
- AC voltage:
- basic accuracy: ± 0.8% of rdg ± 3 digits for 2 V - 200 V range / ± 1.2% of rdg ± 3 digits for 700 V range
- input impedance: 10 Mohm
- frequency range: 40-500 Hz
- maximum input: 700 V
- Audible continuity measurement: Yes
- Audible continuity:
- basic accuracy: ± 0.8% of rdg ± 3 digits for 2 V - 200 V range / ± 1.2% of rdg ± 3 digits for 700 V range
- input impedance: 10 Mohm
- frequency range: 40-500 Hz
- maximum input: 700 V
- Automatic polarity indication: Yes
- Battery test measurements: 1.5 V, 9 V
- Battery test:
- basic accuracy: ± (5.0% rdg + 5 digits)
- overload protection: 0.5 A / 600 V fuse
- overload protection: 0.5 A / 1000 V fuse
- DC current measurements: 15 A, 2 mA, 20 mA, 200 mA
- DC current:
- basic accuracy: ± 1.2% of rdg ± 2 digits for 2 m - 20 mA range / ± 1.5% of rdg ± 2 digits for 200 mA range / ± 2.0% of rdg ± 3 digits for 15 A range
- overload protection: 0.5 A / 1000 V fuse in mA range, 15 A / 1000 V fuse in 15 A range
- DC voltage measurements: 2 V, 20 V, 200 mV, 200 V, 700 V
- DC voltage:
- basic accuracy: ± 0.5% of rdg ± 2 digits for 200 mV - 200 V range / ± 0.8% of rdg ± 2 digits for 700 V range
- input impedance: 10 Mohm
- maximum input: 700 V
- overload protection: 700 V DC or AC rms
- Diode test: Yes
- Diode test specifications:
test voltage: ± 3 V
- Out of range indication: Yes
- Temperature measuring Celsius specifications:
- basic accuracy: ± 3°C ± 1 digits for -50°C~150°C range / ± 3% of rdg ± 1 digits for 150°C~800°C range
- overload protection: 0.5 A / 1000 V fuse
- Resistance measurements: 2 kOhm, 2 MOhm, 20 kOhm, 20 MOhm, 200 kOhm, 200 Ohm
- Resistance:
- basic accuracy: ± 1.0% of rdg ± 3 digits for 200 Ohm range / ± 1.0% of rdg ± 2 digits for 2 kOhm~200 kOhm range / ± 1.5% of rdg ± 3 digits for 20 MOhm range
- overload protection: 700 V DC or AC rms
- Transistor test: No
- Technical data
- Data-hold function: Yes
- Safety rating: CAT II / 700 V, CAT III / 600 V
- Voltage tester type: AC/DC
- Automatic power-off function: Yes
- Environmental data
- IP rating: IPx0
- Usage location: Indoor only
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Temperature measuring range °C: -50-800 °C
- Number ranges: 24
- Range setting: Manual
- Power supply
- Number of batteries: 1
- Batteries: Yes
- Battery IEC size: E (6LR61, 6LP3146, 6F22, 6KR61, 6HR61 ,1604A, 1604D, 1604LC, 7.2H5, 11604, 11604M, PP3, 9 volts, 006P, MN1604)
- Battery composition: Alkaline
- Low-battery indicator: Yes
- Included
- Set contents:
testlead probe (incl.): CAT III 1000V / CAT IV 600, 15 A, L = 75 cm
- Product basic info
- Colour: Black
- Additional colour: Red
- Depth: 37 mm
- Height: 165 mm
- Weight: 215 g
- Width: 85 mm
- Material: ABS
- EAN: 5410329656553
