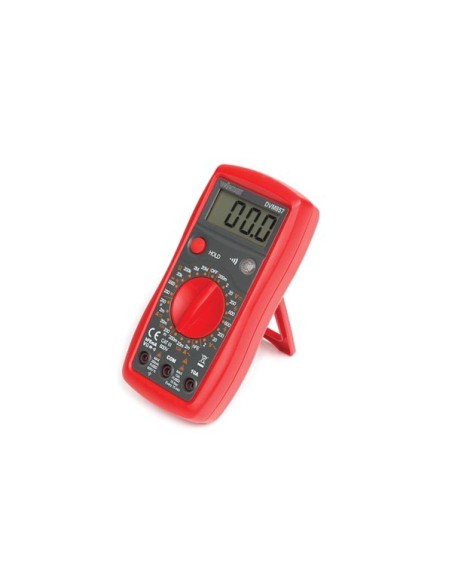

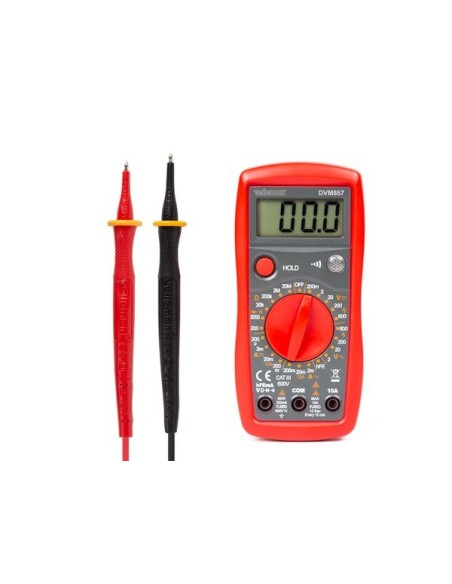

DIGITAL MULTIMETER - CAT III 600 V - 10 A
DVM857
Available
€24.90
Tax included
DIGITAL MULTIMETER - CAT III 600 V - 10 A
Specification(s):
- CAT III 600 V
- display: 3 1/2 digit LCD
- 23 ranges
- low battery display function
- including: test leads and battery
- accuracy: ± (a% reading + b digit)
- buzzer

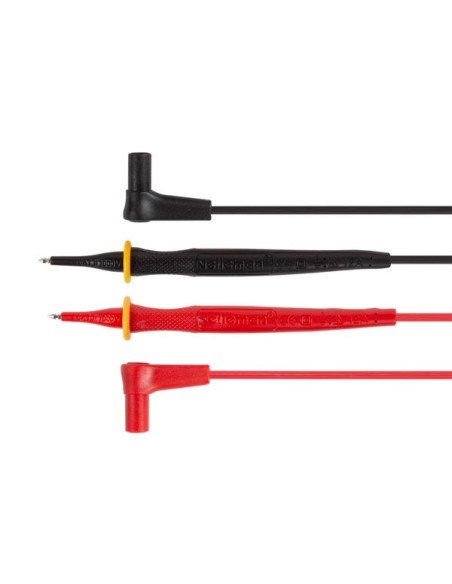

- with separate test leads TLM73 (incl.): [product name=TLM73]TLM73[/product]
- Physical properties
- Cable length: 0.7 m
- Backlight: No
- Display type: LCD
- Electrical data
- AC current measurements: 10 A, 20 mA, 200 mA
- AC current:
- basic accuracy: ± (1.5 % rdg + 3 digits) for 0 to 20 mA , ± (2.0 % rdg + 3 digits) for 200 mA, ± (2.5 % rdg + 5 digits) for 10 A
- frequency range: 40 - 500 Hz
- overload protection: 0.5 A / 600 V fuse in uA/mA range; 10 A / 600 V fuse in 10A range
- RMS of sine wave value (Average value)
- AC voltage measurements: 0-200 mV, 2 V, 20 V, 200 V, 600 mV
- AC voltage:
- basis accuracy: ± (1.2 % rdg + 3 digits) for 0 to 200 V , ± (1.5 % rdg + 3 digits) for 600 V
- input impedance: 10 MOhm
- RMS of sine wave value (average value)
- overload protection: 600 V DC or AC rms
- frequency range: 40 - 500 Hz
- Audible continuity measurement: Yes
- Audible continuity:
< 50 Ohm built-in buzzer sounds
- DC current measurements: 0-600 µA, 15 A, 6 A, 60 mA, 600 mA, 6000 µA
- DC current:
- basic accuracy: ± (1.2 % rdg + 2 digits) for 0 to 20 mA , ± (1.5 % rdg + 2 digits) for 200 mA, ± (2.0 % rdg + 3 digits) for 10 A
- overload protection: 0.5 A / 600 V fuse in µA/mA range; 10 A / 600 V fuse in 10 A range
- DC voltage measurements: 0-200 mV, 2 V, 20 V, 200 V, 600 V
- DC voltage:
- basic accuracy: ± (1.0 % rdg + 2 digits) for 0 to 200 V , ± (1.2 % rdg + 2 digits) for 600 V
- input impedance: 10 MOhm
- overload protection: 600 V DC or AC rms
- Diode test: Yes
- Diode test specifications:
test voltage: approx. 1.8 V
- Resistance measurements: 0-200 Ohm, 2 kOhm, 2 MOhm, 20 kOhm, 20 MOhm, 200 kOhm
- Resistance:
- basic accuracy: ± (1.0% rdg + 3 digits) for 0 to 200 Ohm , ± (1.0 % rdg + 2 digits) for 2 kOhm to 2 mOhm , ± (1.5% rdg + 3 digits) for 20 mOhm
- overload protection: 600 V DC or AC rms
- open circuit voltage: approx. 0.6 V
- Transistor test: Yes
- Transistor test:
- hFE: transistor hFE 0-1000
- test voltage: approx. 1.8 V
- hFE: transistor hFE 0-1000
- Technical data
- Data-hold function: Yes
- Safety rating: CAT III / 600 V
- Voltage tester type: AC/DC
- Automatic power-off function: Yes
- Environmental data
- IP rating: IPx0
- Usage location: Indoor only
- Maximum operating humidity: < 80 %
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Number ranges: 23
- Range setting: Manual
- Power supply
- Number of batteries: 2
- Batteries: Yes
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
- Battery composition: Alkaline
- Low-battery indicator: Yes
- Included
- Set contents:
test lead probe : CAT III 600 V - 12 A - 18 AWG - 70 cm
- Product basic info
- Colour: Grey
- Additional colour: Red
- Depth: 40 mm
- Height: 155 mm
- Weight: 155 g
- Width: 74 mm
- Material: ABS
- EAN: 5410329719432
