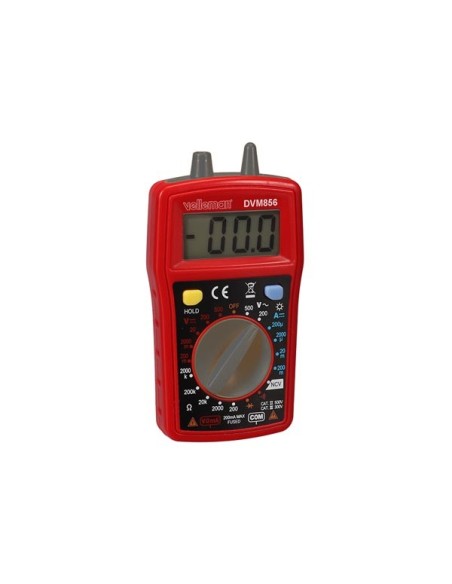

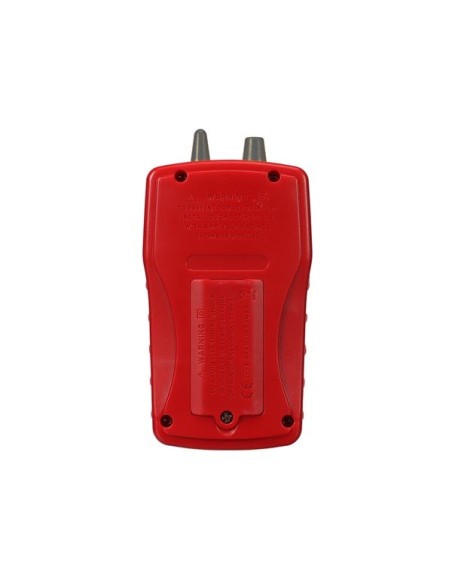

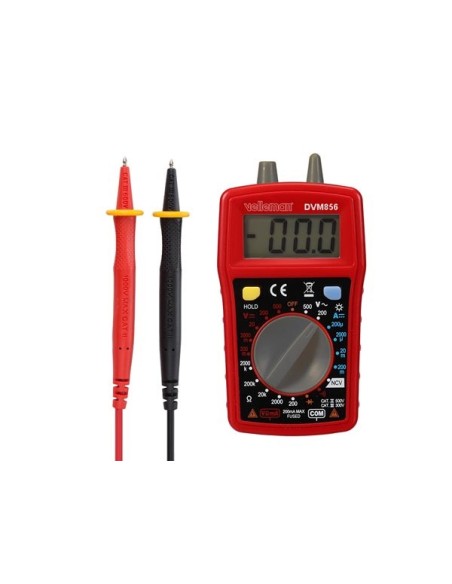

DIGITAL MULTIMETER - CAT III 300 V / CAT II 500 V - 10 A - 1999 COUNTS - NCV / LED TORCH / DATA HOLD / BACKLIGHT / BUZZER

Specification(s):

• manual range
• data hold function
• NCV function
• display with backlight
• led torch
• low battery indicator

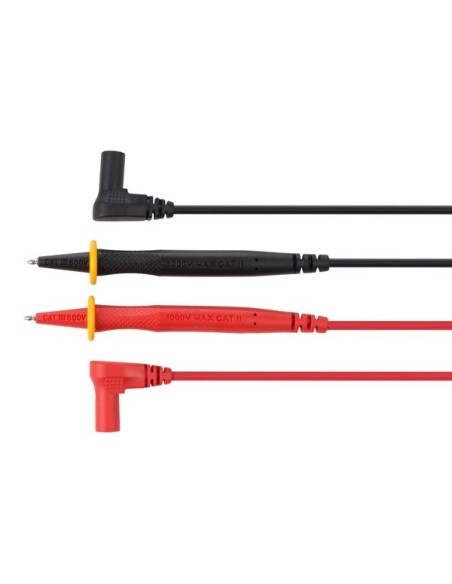

• battery and test leads included
• [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]

Feature(s):

• DC voltage (manual range): 0-200 mV / 2000 mV / 20 V / 200 V / 500 V
• basic accuracy: ± (1.0 % rdg + 2 digits )
• input impedance: 1 Mohm
• overload protection: 500 V DC or AC RMS
• AC voltage: 0-200 V / 500 V
• basic accuracy: ± (1.5 % rdg + 3 digits)
• input impedance: 450 kOhm
• overload protection: 500 V DC or AC RMS
• frequency range: 40-500 Hz
• display: RMS of sine wave value (average value)
• resistance: 0-200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 2000 kOhm
• basic accuracy: ± (1.0 % rdg + digits); ± (2.0 % rdg + 2 digits)
• resolution: 0.1 u A / 1 u A / 10 u A / 100 u A
• overload protection: 0.5 V / 500 V fuse
• DC current: 0-200 µA / 2000 µA / 20 mA / 200 mA
• basic accuracy: ± (1.5 % rdg + 2 digits)
• overload protection: 0.5 A / 500 V fuse
• diode measurement: test forward voltage of diode
• test voltage: approx. 1.8 V
• overload protection: 0.5 A / 500 V fuse
• audible continuity measurement: built-in buzzer sounds of resistance is less than 50 Ohm
• test voltage: approx. 1.8 V
• non contact AC voltage: (NCV) detection
• buzzer: built-in buzzer sounds when live voltage being detected
• test voltage range: 90 v - 1000 V AC RMS
• accuracy: ± (a% reading + b digit)
• display: 3 1/2 digit LCD
• battery: 1.5 V x 2 AAA R03P (incl.)
• dimensions: 125 x 75 x 25 mm
• weight: 110 g

• EAN: 5410329696092
