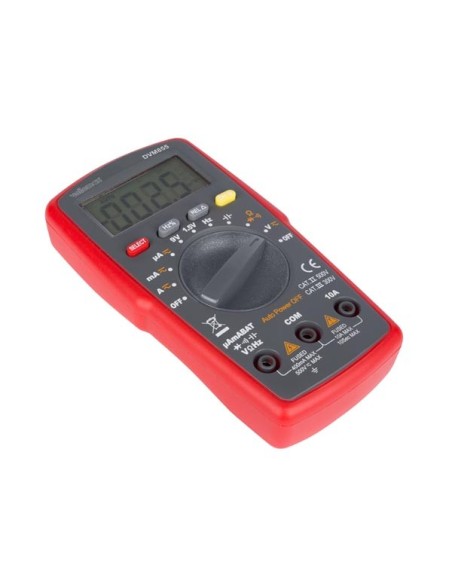

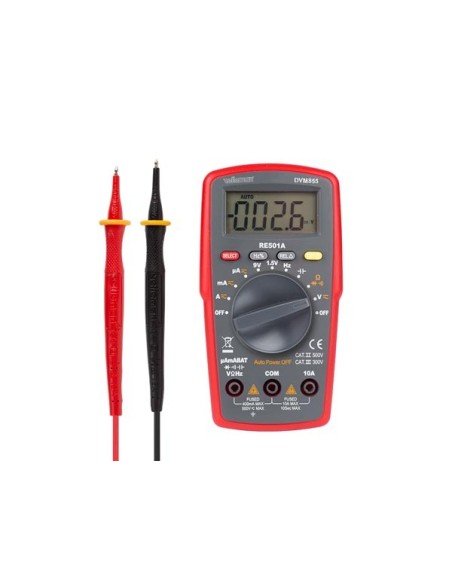

DIGITAL MULTIMETER - CAT. II 500 V / CAT. III 300 V - 10 A - AUTO RANGE - 4000 COUNTS
DVM855
Out-of-Stock
€29.96
Tax included
DIGITAL MULTIMETER - CAT. II 500 V / CAT. III 300 V - 10 A - AUTO RANGE - 4000 COUNTS
Specification(s):
- CAT II 500 V / CAT III 300 V
- auto range and manual range function
- automatic polarity indication
- automatic zero adjustment
- voltage measurements: 500 VAC and 500 VDC max.
- current measurements: DC 10 A and AC 10 A max.
- resistance measurements: 40 MOhm max.
- capacitance measurements: 100 µF max.
- frequency measurements: 5.12 MHz max.

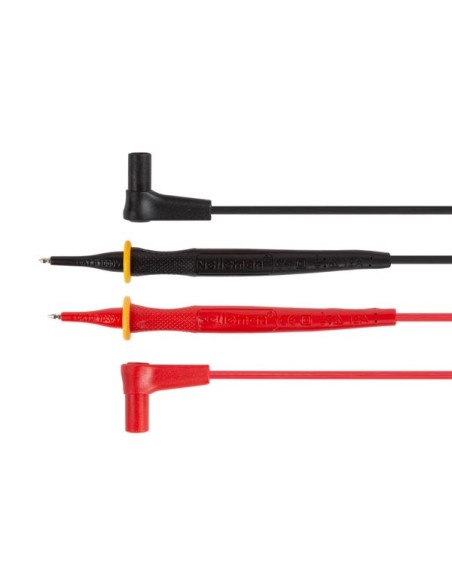

- with separate test leads TLM73 (incl.): [product name=TLM73]TLM73[/product]
- pollution degree 2
- [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
- Physical properties
- Cable length: 0.7 m
- Display height: 21 mm
- Display width: 47 mm
- Backlight: Yes
- Maximum digits display: 4000
- Display type: LCD
- Electrical data
- AC current measurements: 0-400 µA, 10 A, 4 A, 4 mA, 40 mA, 400 mA
- AC current:
- basic accuracy: ± (1.5% rdg + 3 digits), ± (2.5% rdg + 5 digits) for 4 A to 10 A range
- overload protection: 0.5 A / 500 V fuse for µA and mA range; 10 A / 500 V for 10 A range
- AC voltage measurements: 0-4 V, 40 V, 400 V, 500 V
- AC voltage:
- basic accuracy: ± (0.8% rdg + 3 digits) , ± (1.2% rdg + 3 digits) for 500 V range
- input impedance: 10 MOhm
- frequency range: 40-500 Hz
- maximum input: 500V DC or AC rms
- Audible continuity measurement: Yes
- Audible continuity:
built-in buzzer sounds if resistance is less than 50 Ohm
- Automatic polarity indication: Yes
- Battery test measurements: 1.5 V, 9 V
- Battery test:
- basic accuracy: ± (5.0% rdg + 5 digits)
- overload protection: 0.5 A / 500 V fuse
- Capacity measurements: 0-51.2 nF, 100 µF, 51.2 µF, 512 nF
- Capacity:
- basic accuracy: ± (3.0% rdg + 10 digits), ± (2.5% rdg + 5 digits) for 512 nF to 51.2 µF range; ± (5.0% rdg + 10 digits) for 100 µF range
- overload protection: 500V DC or AC rms
- DC current measurements: 0-0.4 mA, 10 A, 4 A, 4 mA, 40 mA, 400 mA
- DC current:
- basic accuracy: ± (1.2% rdg + 2 digits), ± (2.0% rdg + 3 digits) for 4 A to 10 A range
- overload protection: 0.5 A / 500 V fuse for µA and mA range; 10 A / 500 V for 10 A range
- DC voltage measurements: 0-400 mV, 4 V, 40 V, 400 V, 500 V
- DC voltage:
- basic accuracy: ± (0.5% rdg + 2 digits) , ± (0.8% rdg + 2 digits) for 500 V range
- input impedance: > 10 MOhm
- overload protection: 500 V DC or AC rms
- Diode test: Yes
- Diode test specifications:
- test forward voltage of diode
- test voltage: approx. 1.5 V
- test forward voltage of diode
- Duty cycle:
- 0.1% to 99.9%
- basic accuracy: ± (2.0% rdg + 2 digits)
- sensitivity: sine wave 0.6 V rms
- overload protection : 500V DC or AC rms
- 0.1% to 99.9%
- Frequency measurements: 0-5.12 Hz, 5.12 kHz, 5.12 MHz, 51.2 Hz, 51.2 kHz, 512 Hz, 512 kHz
- Frequency:
- basic accuracy: ± (0.1% rdg + 5 digits)
- sensitivity: sine wave 0.6 V rms (10 MHz = 1.5 V rms)
- overload protection: 500V DC or AC rms
- Fuse type: F 0.50 A / 500 V, 5 x 20 mm, F 10 A / 1000 VAC / 1000 VDC, 5 x 20 mm
- Out of range indication: Yes
- Resistance measurements: 0-400 Ohm, 4 kOhm, 4 MOhm, 40 kOhm, 40 MOhm, 400 kOhm
- Resistance:
- basic accuracy: ± ( 1.0% rdg +3 digits); ± (1.0% rdg + 2 digits) for 4 kOhm to 4MOhm range, ± (1.5% rdg + 3 digits) for 40 MOhm range
- overload protection: 500 V DC or AC rms
- Transistor test: No
- Duty cycle measurements: 0.1-99.9 %
- Technical data
- Pollution degree: 2
- Data-hold function: Yes
- Safety rating: CAT II / 500 V, CAT III / 300 V
- Voltage tester type: AC/DC
- Automatic power-off function: Yes
- Environmental data
- IP rating: IPx0
- Usage location: Indoor only
- Maximum storage humidity: < 90 %
- Maximum operating humidity: < 80 %
- Operating temperature °C: 0-40 °C
- Operating temperature °F: 32-104 °F
- Storage temperature °C: -20-60 °C
- Storage temperature °F: -4-140 °F
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Range setting: Automatic, Manual
- Power supply
- Number of batteries: 2
- Batteries: Yes
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
- Battery composition: Alkaline
- Low-battery indicator: Yes
- Included
- Set contents:
test lead probe : CAT III 600 V - 12 A - 18 AWG - 70 cm
- Product basic info
- Colour: Grey
- Additional colour: Red
- Depth: 30 mm
- Height: 138 mm
- Weight: 120 g
- Width: 74 mm
- Material: ABS
- EAN: 5410329669713
