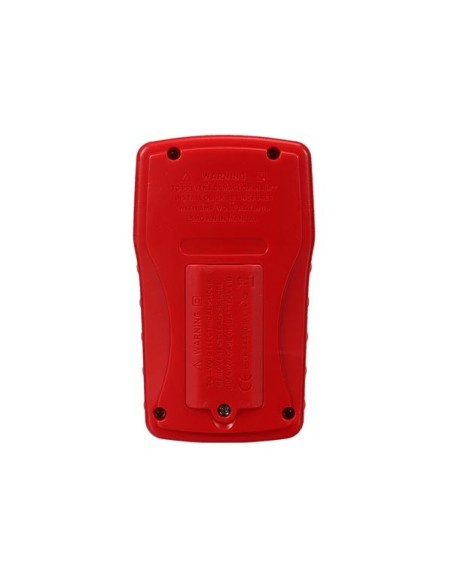

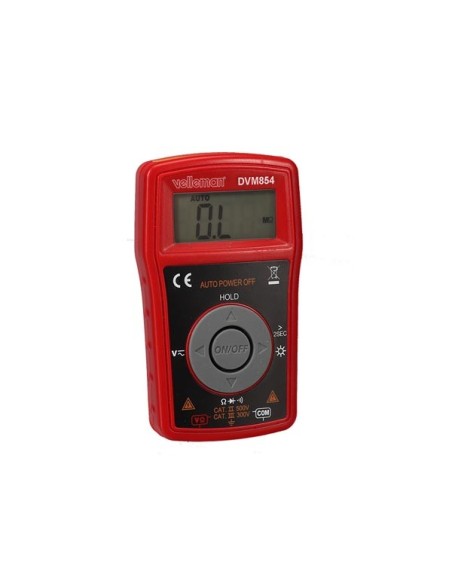

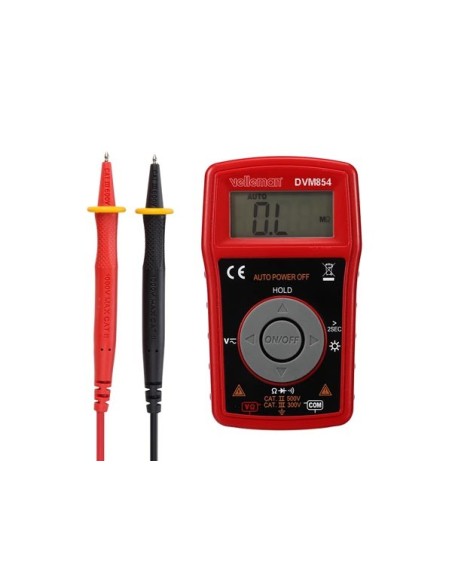

DIGITAL MULTIMETER AUTOMATIC - CAT III 300 V / CAT II 500 V - 2000 COUNTS WITH DATA HOLD / BACKLIGHT FUNCTIONS

Specification(s):

• CAT II 500 V / CAT III 300 V
• auto range
• display with backlight
• data hold function
• automatic polarity indication
• auto power-off (15 minutes)
• voltage measurements: 500 VAC and 500 VDC max.
• resistance measurements: 20 MOhm max.

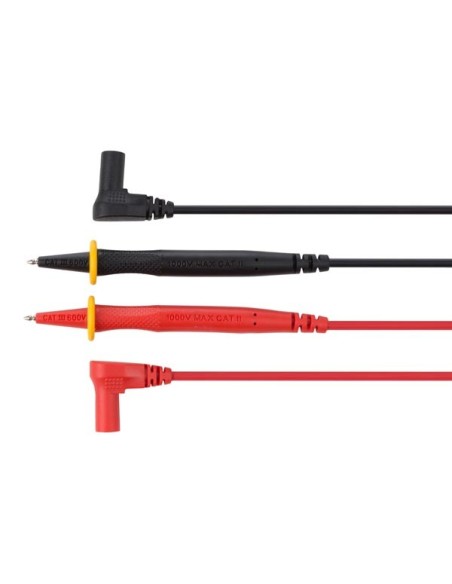

• with separate test leads (incl.): [product name=TLM73]TLM73[/product]
• pollution degree 2
• IMPORTANT: THIS DEVICE DOES NOT MEASURE THE CURRENT
• [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]

Feature(s):

• environmental temperature: 23° C ± 5° C
• relative humidity: < 80 %
• accuracy: ± (a% reading + b digit)
• DC voltage (manual range): 0-200 mV / 2000 mV / 20 V / 200 V / 500 V
• basic accuracy: ± (0.5 % rdg + 2 digits )
• input impedance: 10 Mohm
• overload protection: 500 V DC or AC RMS
• AC voltage: 0-2 V / 20 V / 200 V / 500 V
• basic accuracy: ± (0.8 % rdg + 3 digits)
• input impedance: 10 Ohm
• overload protection: 500 V DC or AC RMS
• frequency range: 40-500 Hz
• display: RMS of sine wave value (average value)
• resistance: 0-200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm
• basic accuracy: ± (1.0 % rdg + digits); ± (1.5 % rdg + 2 digits)
• resolution: 0.1 Ohm / 1 Ohm / 10 Ohm / 100 Ohm / 1 k Ohm / 10 k Ohm
• overload protection: 250 V DC or AC RMS
• open circuit voltage: approx. 0.5 V
• diode measurement: test forward voltage of diode
• test voltage: approx. 1.5 V
• overload protection: 250 V DC or AC RMS
• audible continuity measurement: built-in buzzer sounds of resistance is less than 50 Ohm
• test voltage: approx. 0.5 V
• display: 3 1/2 digit LCD
• battery: 1.5 V x 2 AAA R03P (incl.)
• dimensions: 125 x 75 x 25 mm
• weight: 110 g

• EAN: 5410329696108
