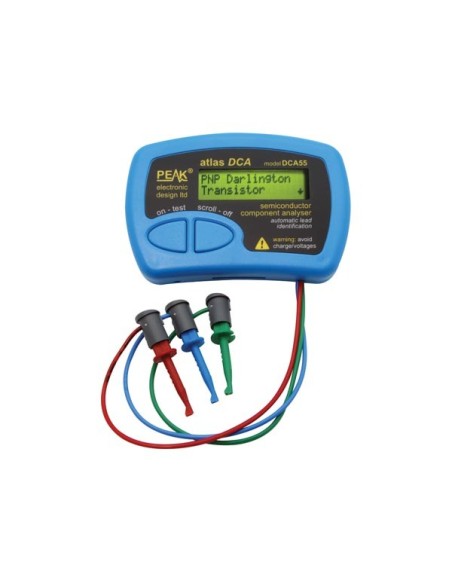

SEMICONDUCTOR COMPONENT ANALYZER
DCA55
Available
€99.96
Tax included
SEMICONDUCTOR COMPONENT ANALYZER
Specification(s):
- automatic component type identification
- automatic pinout identification
- special feature identification such as protection diodes and resistor shunts
- bipolar transistors: gain and leakage current measurements, silicon and germanium detection
- gate threshold measurement for Enhancement Mode MOSFETs
- semiconductor forward voltage measurement for diodes, LEDs and transistor Base-Emitter junctions
- automatic and manual power-off
- Technical data
- Maximum peak test current into S/C: 5.5 mA
- Maximum peak test voltage across O/S: 5.1 V
- Diode specs: * Test current: 5.0 mA * Voltage accuracy: -2% -20 mV to +2% +20 mV * Vf for LED identification: 1.50 V - 4.00 V * Short circuit threshold: 10 Ohm
- SCR/triac specs: * Gate test current: 4.5 mA * Load test current: 5.0 mA
- Transistor specs: * Gain range (Hfe): 4-65000 * Gain accuracy: ± 3% ± 5 Hfe * Vceo test voltage: 2.0 V - 3.0 V * Vbe accuracy: -2% -20 mV to +2% +20 mV * VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V) * Base-emitter shunt threshold: 50 kOhm - 70 kOhm * BJT collector test current: 2.45 mA - 2.55 mA * BJT acceptable leakage: 0.7 mA * MOSFET: - Gate threshold range: 0.1 V - 5.0 V - Threshold accuracy: -2% -20 mV to +2% +20 mV - Drain test current: 2.45 mA - 2.55 mA - Gate resistance: 8 kOhm * Depletion drain test current: 4.5 mA * JFET drain-source test current: 0.5 mA - 5.5 mA
- Environmental data
- Operating temperature: 0-50 °C
- Power supply
- Number of batteries: 1
- Batteries: No
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
- Battery composition: Alkaline
- Battery voltage rating: 1.5 V
- Product basic info
- Colour: Black
- Additional colour: Blue
- Depth: 20 mm
- Height: 70 mm
- Weight: 98 g
- Width: 103 cm
- EAN: 5410329460648
