ZEN50
Available
€94.96
Tax included

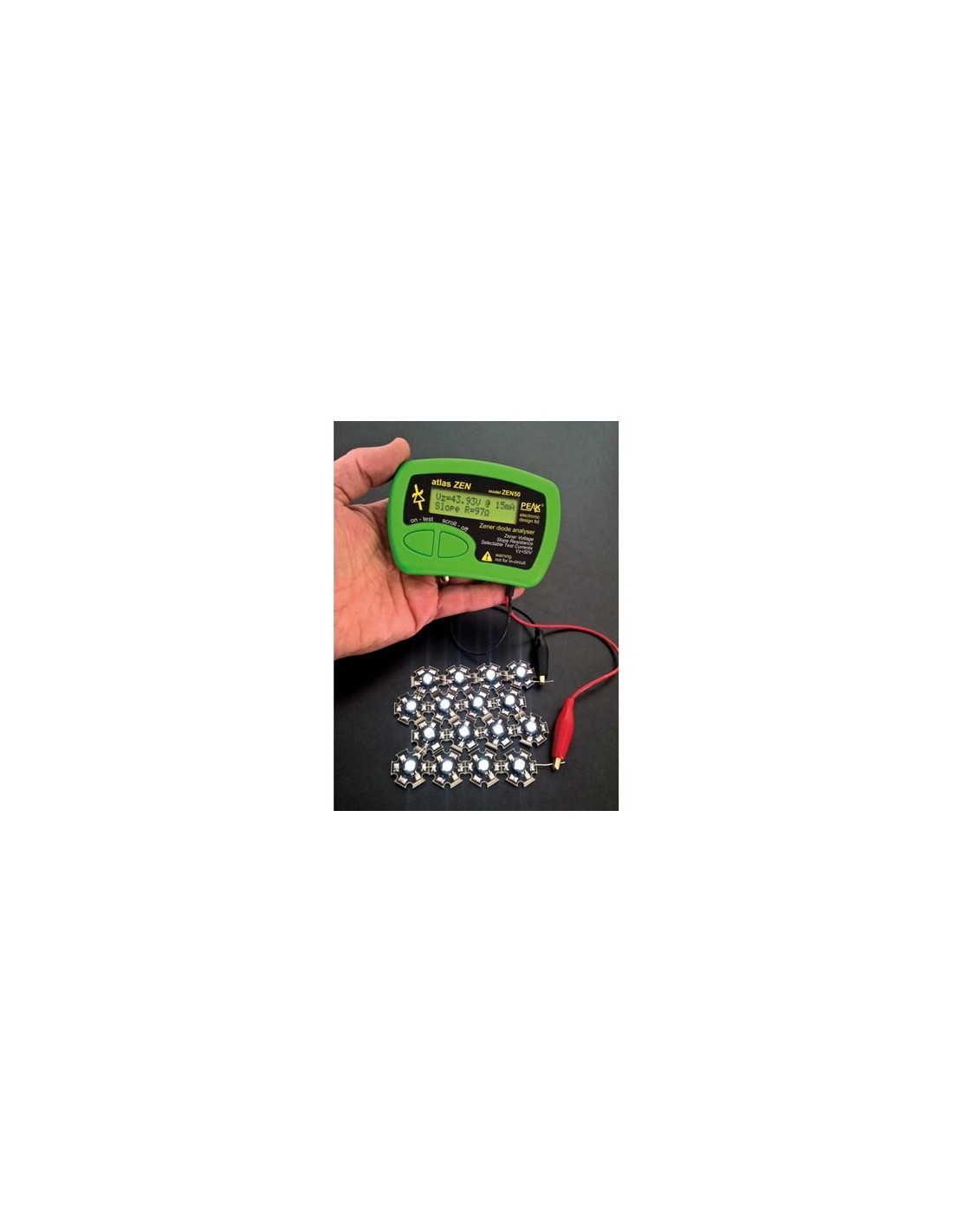

ATLAS ZEN - ZENER DIODE ANALYSER (0 - 50 V)


Specification(s):
  • test Zener diodes, Avalanche diodes, VDRs, TVSs, LED strings and much more (up to 50 V)
  • measures breakdown voltage (0.00 V to 50.00 V) with a resolution as fine as 20 mV
  • measures slope resistance (up to 1 kO at 15 mA with a 1O resolution)
  • supports most Zeners, Avalanche diodes and reference diodes from 0 V up to 50 V
  • great for testing VDRs, TVSs and other types of voltage protection devices
  • selectable test currents: 2 mA, 5 mA, 10 mA, 15 mA
  • tiny duty cycle of test current to minimise heating of your component, even when testing at 50 V and 15 mA
  • single alkaline AAA battery (incl.)
  • long battery life and regulated test conditions even when the battery voltage is as low as 1.0 V
  • continuous measurement display (updated 3 times per second)
  • hold-function to hold displayed values even if component is removed
  • fitted gold plated crocodile (alligator) clips
  • comprehensive printed user guide available (English - German - Italian)
Feature(s):
  • specification summary at 20-25 °C (68-77 °F) unless otherwise specified
  • Zener voltage range (Vz): 0.0 V - 50.0 V
  • nominal test currents (Iz) : 2mA, 5mA, 10mA, 15mA
  • set test current accuracy: ± 1 % ± 0.2 mA
  • Zener voltage measurement accuracy: ± 1% ± 40 mV
  • Zener voltage measurement resolution : 20 mV - 40 mV
  • test frequency accuracy: -1.5% ~ +1.5%
  • 60 V pulsed DC satisfies lower limit of 75 V(DC) for Low Voltage Directive 2006/95/EC
  • test current into a short circuit (pulsed) : 35 mA
  • test current duty cycle :
  • min: 0.1%
  • max: 5%
  • typical: 1%
  • duty cycle of test current designed to keep power dissipation of Zener under test to very low levels
  • maximum external voltage: ± 50 V
  • slope resistance measurement range:
  • Iz = 2 mA: 0-8000 Ohm
  • Iz = 5 mA: 0-3200 Ohm
  • Iz = 10 mA: 0-1600 Ohm
  • Iz = 15 mA: 0-1000 Ohm
  • displayed slope resistance resolution:
  • Iz = 2 mA: 5 Ohm
  • Iz = 5 mA: 2 Ohm
  • Iz = 10 mA: 1 Ohm
  • Iz = 15 mA: 1 Ohm
  • slope resistance measurement accuracy:
  • Iz = 2 mA: ±1% ±10 Ohm
  • Iz = 5 mA: ±1% ±4 Ohm
  • Iz = 10 mA: ±1% ±2 Ohm
  • Iz = 15 mA: ±1% ±2 Ohm
  • slope resistance current span: (Iz-50%) to (Iz+50%)
  • slope resistance measurement method :
  • differentiation of curve that fits:: (Iz-50%, Vz1), (Iz, Vz2), (Iz+50%, Vz3)
  • measurement rate: 3 Hz
  • auto-off period: 60 sec.
  • battery:
  • type: 1 x AAA alkaline
  • voltage range: 0.9 V - 1.6 V
  • low battery warning: 1.0 V ± 0.05 V
  • operating temperature: 10-40°C
  • dimensions (excl. leads): 103 x 70 x 20 mm
  • weight: 98 g
  • fundamental materials: plastic, glass and metal


  • EAN: 5410329632564
