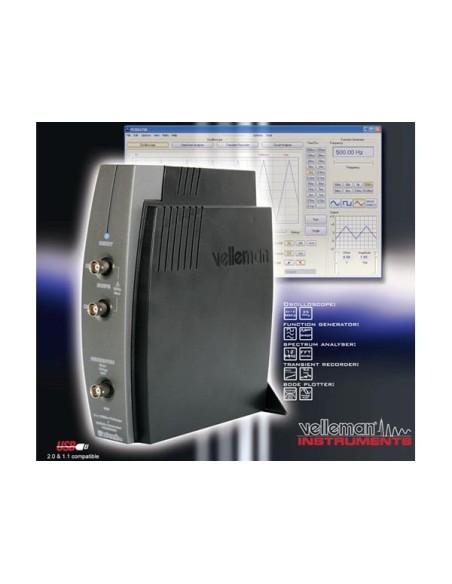

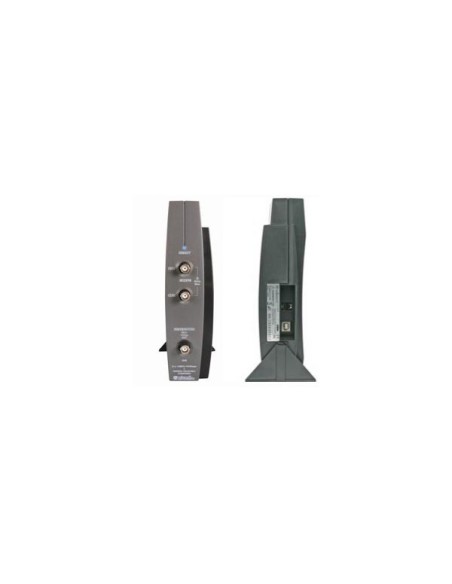

USB-PC SCOPE + GENERATOR (2 CHANNELS)
A complete USB-powered lab-in-a-box

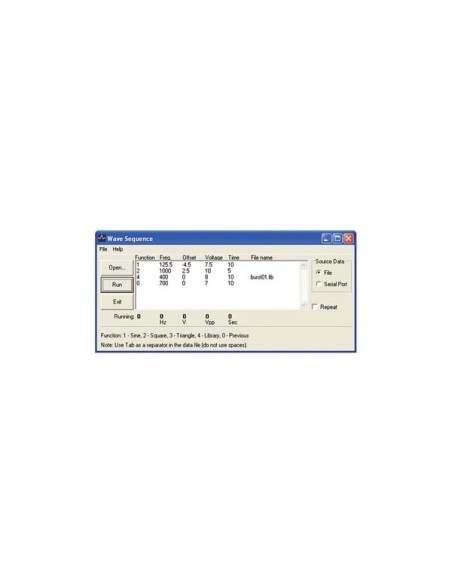

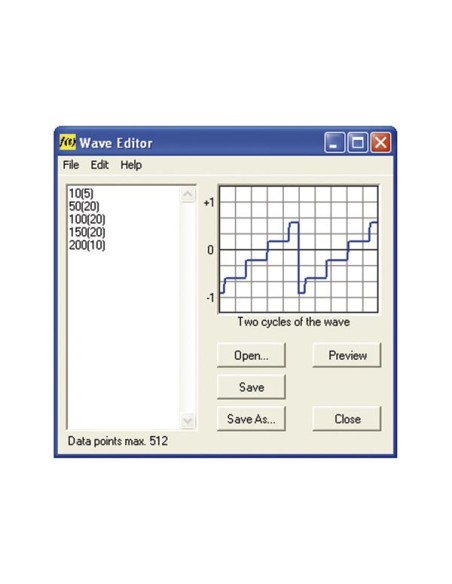

Feature-packed PcLab2000-LT software for two channel oscilloscope, spectrum analyser, recorder, function generator and bode plotter. With the generator, you can create your own waveforms using the integrated signal wave editor. For automated measurements, it is even possible to generate wave sequences, using file or computer RS232 input.
Specification(s):
Specification(s):
- function generator:
- crystal-based stability
- standard waveforms: sine, square and triangle
- predefined library waveforms included: sine(x)/x, DCV, sweep...

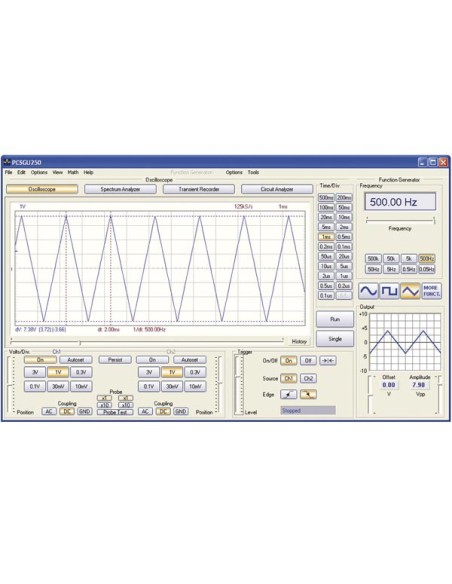

- oscilloscope:
- auto set-up function and X10 option
- pre-trigger function

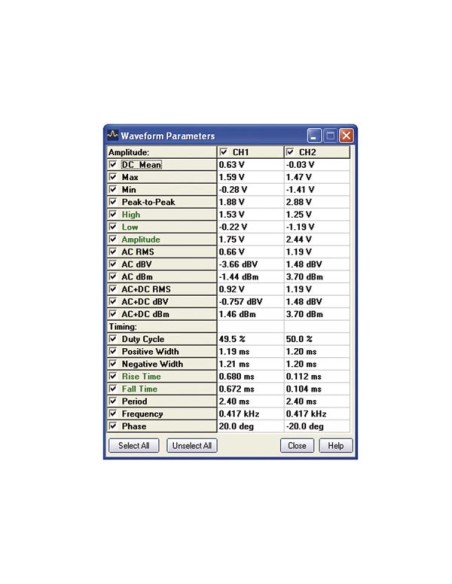

- readouts: true RMS, dBV, dBm, p to p, duty cycle, frequency...

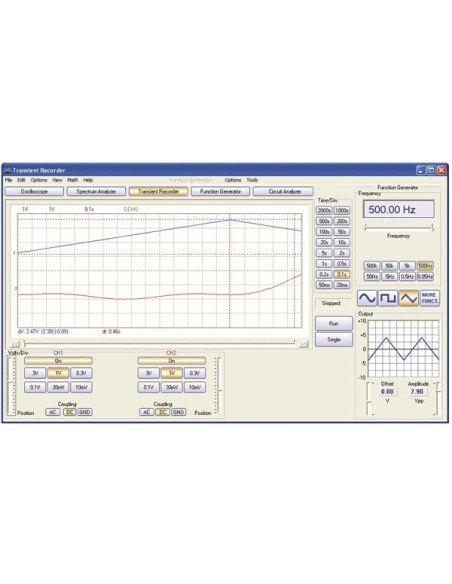

- transient recorder:
- automatic storage of data
- automatic recording for more than 1 year
- record and display of screens

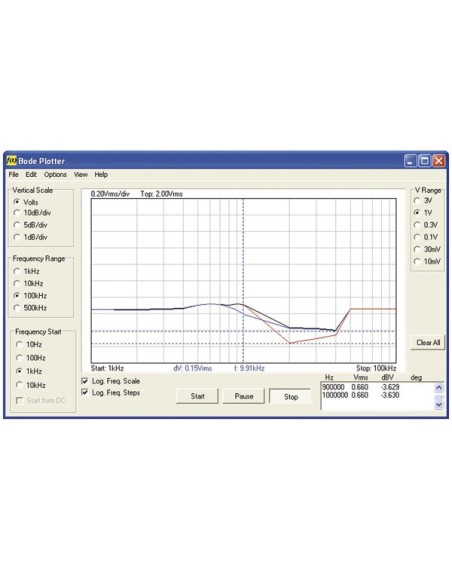

- bode plotter
- automated sync between oscilloscope and generator
- logatithmic scale option
- Volt or dB display scale
- phase plot option

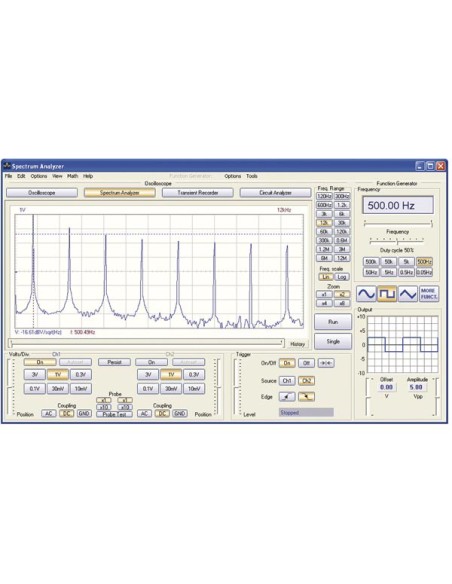

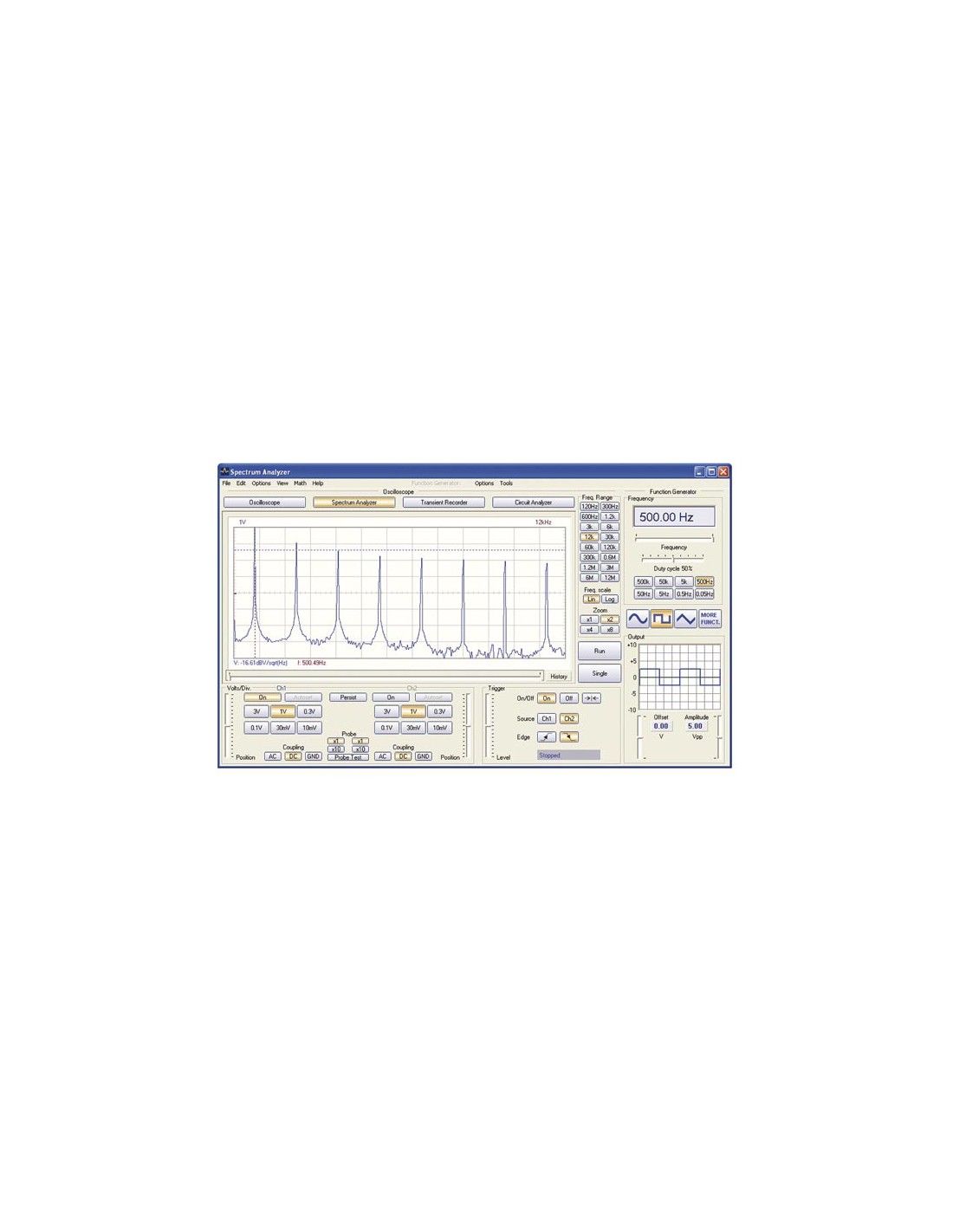

- spectrum analyser:
- linear or logarithmic timescale
- operating principle: FFT (Fast Fourier Transform)
- FFT input channel: CH1 or CH2
- zoom function

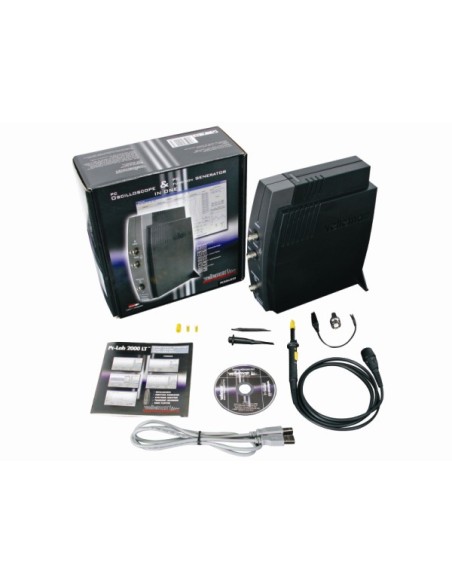

- in the box:
- getting started manual
- USB PC scope + generator unit
- USB cable
- software on CD
- 1 x 60 MHz scope probe ([product name=PROBE60S]PROBE60S[/product])
- BNC adapter, BNC male to RCA female ([product name=CBNC15]CBNC15[/product])
- Technical data
- Bode plotter specs:
- Voltage Range: 10 mV, 30 mV, 0.1 V, 0.3 V, 1 V, 3 V
- Frequency Range: 1 kHz, 10 kHz, 100 kHz, 500 kHz
- Frequency Start: 10 Hz, 100 Hz, 1 kHz, 10 kHz
- Function generator specs:
- Amplitude Range: 100 mVpp to 10 Vpp @ 1 kHz // 600 Ohm Load / 0 V Offset
- Offset: from 0 to -5 V or +5 V Maximum (Resolution 0.4 % of Full Scale)
- Vertical Resolution: 8 bits
- Square Wave Rise/Fall Time: 0.2 µs
- Sample Rate: 12.5 MHz
- Typical Sine Wave Distortion (THD): < 1 %
- Output Impedance: 50 Ohm
- Frequency Range: from 0.005 Hz to 500 kHz
- Oscilloscope specs:
- Bandwidth: Two Channels DC to 12 MHz ± 1 dB
- Input Impedance: 1 Mohm / 30 pF
- Maximum Input Voltage: 30 V (AC + DC)
- Time Base: 0.1 µs to 500 ms per Division
- Input Range: 10 mV to 3 V per Division
- Input Sensitivity: 0.3 mV Display Resolution
- Record Length: 4k Samples per Channel
- Sampling Frequency: 250 Hz to 25 MHz
- Spectrum analyser specs:
- Frequency Range: 0 .. 120 Hz to 12 MHz
- FFT Resolution: 2048 Lines
- Transient recorder specs:
- Timescale: 20 ms per Division to 2000 s per Division
- Maximum Record Time: 9.4 Hour per Screen
- Maximum Number of Samples: 100/s
- Minimum Number of Samples: 1/20s
- Set-up options
- Bode plotter: Yes
- Function generator: Yes
- Oscilloscope: Yes
- Spectrum analyser: Yes
- Transient recorder: Yes
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Digital scope and function generators general specs:
- Markers for: Amplitude / Voltage and Frequency / Time
- Input Coupling: DC, AC and GND
- Supply from USB Port (500 mA)
- Power supply
- USB-operated: Yes
- USB input current: 0.5 A
- Compatibility
- Minimum system requirements:
- IBM Compatible PC
- Windows® 2000, XP, Vista
- SVGA Display Card (Minimum 1024 x 768)
- Mouse
- Free USB Port 1.1 or 2.0
- CD-ROM Drive
- Product basic info
- Colour: Black
- Additional colour: Grey
- Depth: 175 mm
- Height: 205 mm
- Weight: 750 g
- Width: 55 mm
- EAN: 5410329409975
