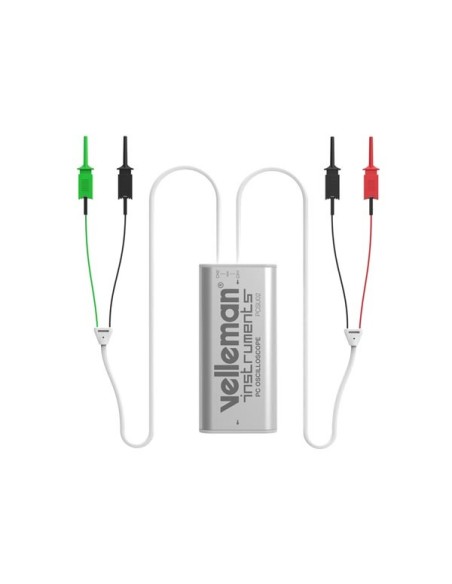

Oscilloscopes are expensive and complicated instruments? Not this one!
This small and easy to use 2 channel oscilloscope has all the features of a full blown oscilloscope and it also has a bandwidth of 500 kHz ±3 dB!
Complete with instructions (download), test leads and software (download) and it comes in a design enclosure.
Specification(s):
Specification(s):
- test leads
- software download
- USB cable included
- design enclosure
- storage of display and data
- Physical properties
- Number of channels: 2
- Technical data
- Markers for: Amplitude/voltage, Frequency/time
- Sampling resolution: 8-bit

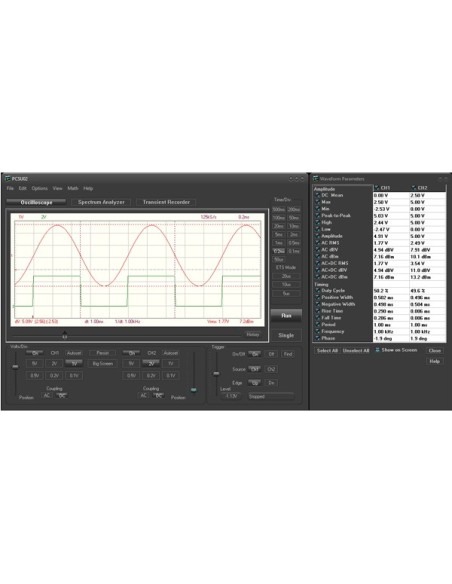

- Oscilloscope specs:
- Bandwidth: DC to 2 x 500 kHz ± 3 dB
- Input Impedance: 100 kOhm / 20 pF
- Maximum Input Voltage: 30 V (AC + DC)
- Time Base: 5 µs to 500 ms Per Division
- Input Range: 100 mV to 5 V Per Divison
- Input Sensitivity: 3 mV
- Display Resolution Readouts: True RMS, dBV , dBm , ptp, Duty Cycle, Frequency...
- Record Length: 2 x 1k Samples
- Sampling Frequency: 50 Hz to 2.5 MHz
- Sample History Function
- Auto Set-up Function
- Pre-trigger Function: on 50 µs/div ... 500 ms/div
- Ranges Persistence Options: Colour Graded, Variable and Infinite
- Spectrum analyser specs:
- Frequency Range: 0 … 125 Hz to 125 kHz
- Operating Principle: FFT (Fast Fourier Transform)
- FFT Resolution: 512 Lines

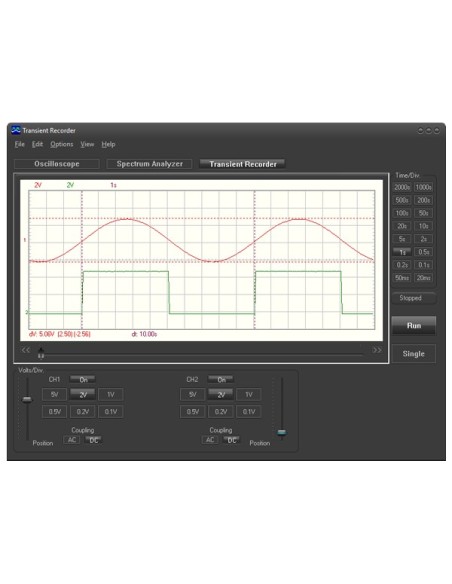

- Transient recorder specs:
- Timescale: 20 ms/div to 2000 s/div
- Maximum Recording Time: 9.4 h/screen
- Automatic Storage of Data
- Record and Display of Screens
- Maximum Number of Samples: 100/s
- Minimum Number of Samples: 1 sample/20s
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- IT connections
- USB type: USB 1.1, USB 2.0
- Power supply
- Input coupling: AC/DC
- Compatibility
- Minimum system requirements:
- Windows® XP, Vista, 7, 8, 10
- Mouse (or mouse pad)
- Free USB port 1.1 or 2.0
- Included
- USB cable: Yes
- Product basic info
- Colour: White
- Additional colour: Grey
- Depth: 14 mm
- Height: 40 mm
- Weight: 80 g
- Width: 85 mm
- EAN: 5410329668228
