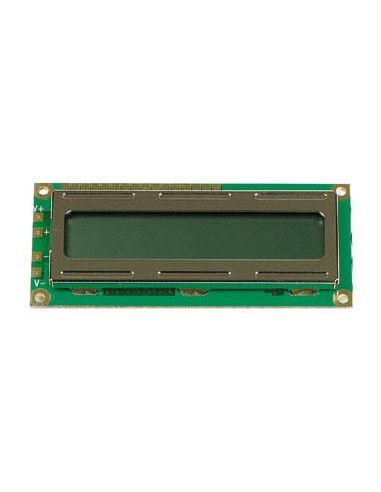

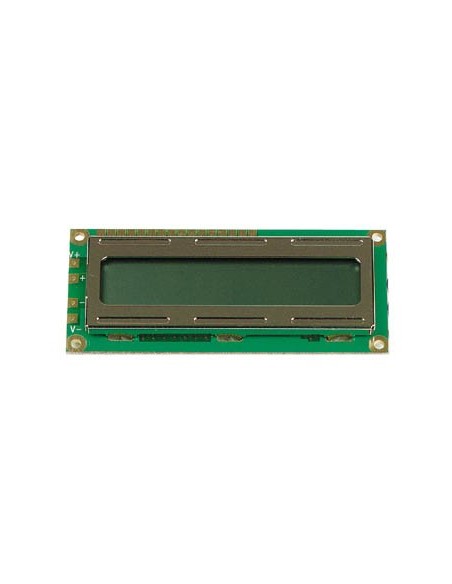

SUPERTWIST LCD 16 x 2 - BACKLIGHT WITH LEDS


Specification(s):
  • number of characters: 16 x 2
  • character font: 5 x 7 dots
  • duty-bias: 1/16 - 1/4
  • type: positive
Feature(s):
  • backlight: LED
  • LCD type + colour: STN yellow-green
  • ratings:
  • supply for LCD driver (Vdd-Vo):
  • at -20°C: -
  • at 0°C: 4.8V typ.
  • at 25°C: 4.4V typ.
  • at 50°C: 4.1V typ.
  • at 70°C: -
  • supply for logic (Vdd-Vss):
  • at 25°C: 5.0V typ.
  • operating temperature: 0°C to +50°C
  • storage temperature: -20°C to +60°C

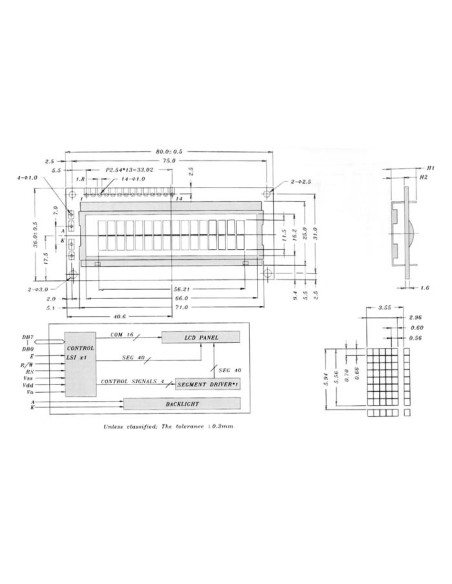

  • mechanical:
  • overall dimensions: 80.0 x 36.0mm
  • viewing area: 66.0 x 16.2mm
  • dot size: 0.56 x 0.66mm
  • character size: 2.96 x 5.56mm
  • module: H2/H1
  • without backlight: 5.1/9.7 ± 0.5mm
  • EL backlight: 5.1/9.7 ± 0.5mm
  • LED backlight: 9.4/14.0 ± 0.5mm
  • pin assignment:
  • power supply (GND): 1 (Vss)
  • power supply (+5V): 2 (Vdd)
  • contrast adjust: 3 (Vo)
  • signal for register selection: 4 (RS)
  • data read & write: 5 (R/)
  • enable signal: 6 (E)
  • data bus line: 7 (DB0)
  • data bus line: 8 (DB1)
  • data bus line: 9 (DB2)
  • data bus line: 10 (DB3)
  • data bus line: 11 (DB4)
  • data bus line: 12 (DB5)
  • data bus line: 13 (DB6)
  • data bus line: 14 (DB7)


  • EAN: 5410329293567
