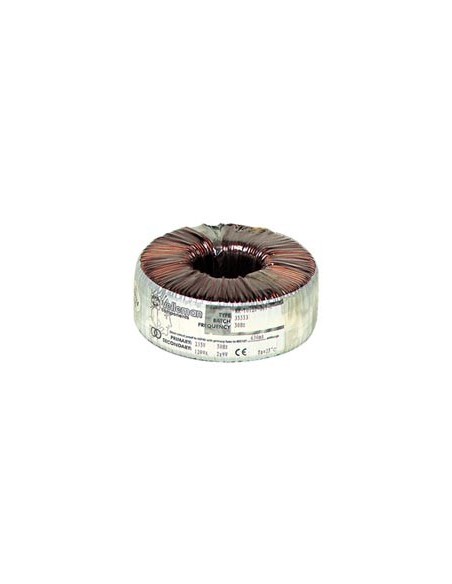

TOROIDAL TRANSFORMER 160VA 2 x 18V / 2 x 4.44A
TOROIDAL TRANSFORMER 160VA 2 x 18V / 2 x 4.44A
TOROIDAL TRANSFORMER 160VA 2 x 18V / 2 x 4.44A
TOROIDAL TRANSFORMER 160VA 2 x 18V / 2 x 4.44A

TOROIDAL TRANSFORMER 160VA 2 x 18V / 2 x 4.44A

16018
Available
€78.95
Tax included
TOROIDAL TRANSFORMER 160VA 2 x 18V / 2 x 4.44A


Specification(s):
  • approvals: EN 60742/BS3535
  • fuse: 130°C thermal fuse
Feature(s):
  • voltage: 2 x 18V
  • current: 2 x 4.44A
  • regulation: 7%
  • power: 160VA
  • weight: 2.30kg
  • Ø: 115mm max.
  • height: 66mm max.
  • fixing bolt: M8 x 70mm
  • nut: M8
  • metal washer: Ø92mm
  • rubber washer: Ø96mm
  • connections: 200mm PVC, 10mm stripped and tinned leads
  • primary: 1672 18AWG black - black : 1 x 230V
  • secondary: *red - yellow / *blue - grey (* = start)
  • primary voltage: 230V / 50Hz
  • primary-secondary insulation: 500Vdc
  • secondary-secondary insulation: 500Vdc
  • insulation category: class A, 105°C


  • EAN: 5410329240660
