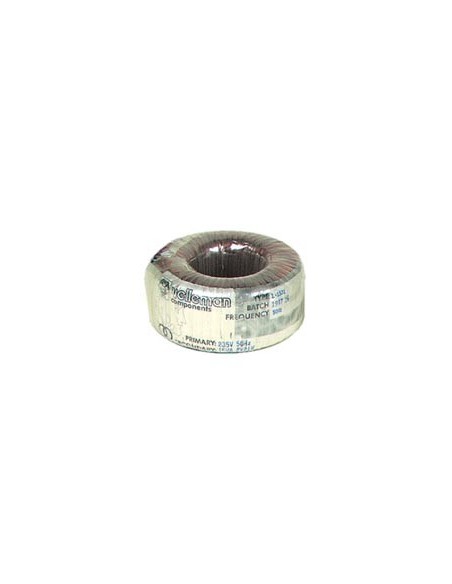

TOROIDAL TRANSFORMER 50VA 2 x 18V / 2 x 1.38A
TOROIDAL TRANSFORMER 50VA 2 x 18V / 2 x 1.38A
TOROIDAL TRANSFORMER 50VA 2 x 18V / 2 x 1.38A
TOROIDAL TRANSFORMER 50VA 2 x 18V / 2 x 1.38A

TOROIDAL TRANSFORMER 50VA 2 x 18V / 2 x 1.38A

5018
Out-of-Stock
€33.95
Tax included
TOROIDAL TRANSFORMER 50VA 2 x 18V / 2 x 1.38A


Specification(s):
  • approvals: EN 60742/BS3535
  • fuse: 130°C thermal fuse
Feature(s):
  • voltage: 2 x 18V
  • current: 2 x 1.38A
  • regulation: 12%
  • power: 50VA
  • weight: 0.79kg
  • Ø: 93mm max.
  • height: 40mm max.
  • fixing bolt: M6 x 45mm
  • nut: M6
  • metal washer: Ø72mm
  • rubber washer: Ø74mm
  • connections: 200mm PVC, 10mm stripped and tinned leads
  • primary: 1672 18AWG black - black : 1 x 230V
  • secondary: *red - yellow / *blue - grey (* = start)
  • primary voltage: 230V / 50Hz
  • primary-secondary insulation: 500Vdc
  • secondary-secondary insulation: 500Vdc
  • insulation category: class A, 105°C


  • EAN: 5410329238155
