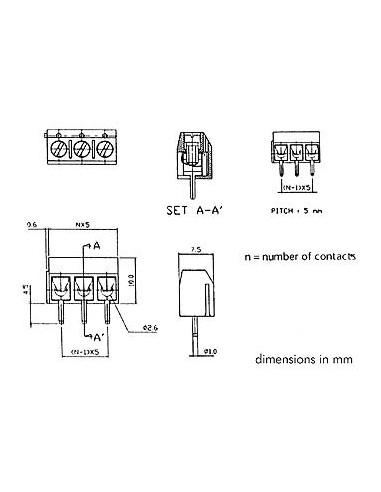

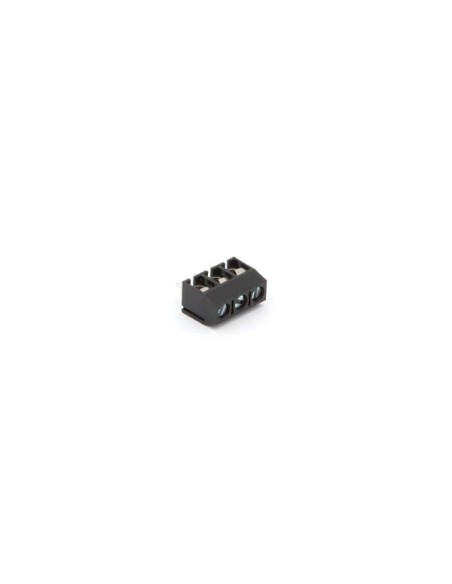

SCREW CONNECTOR PRINT, 3 POLES, LOW TYPE, 5mm PITCH
SCREW03BL
Available
€0.61
Tax included
SCREW CONNECTOR PRINT, 3 POLES, LOW TYPE, 5mm PITCH
Specification(s):
- this is a small design, only 10.0mm (.394") high. Ideal for confined spaces
- with wire guard
- blocks are stackable
- Physical properties
- Diameter lead: 1 mm
- Stackable: Yes
- Shape: Square
- Solder pins material: Tin-plated
- Contact material: Brass
- Electrical data
- Dielectric strength voltage rating VAC: 2000 V
- Insulation resistance at 1000 VDC: 5000 megohm
- Maximum current per way: 16 A
- Voltage rating VAC per way: 300 V
- Technical data
- Pitch: 5 mm
- Mounting type: PCB, Through hole
- Number of contacts: 3
- Flammability rating: UL 94 V-0
- Environmental data
- Operating temperature: -33-120 °C
- Soldering tip temperature: 260 °C
- Operational properties
- Mounting hole diameter: 1.5 mm
- Connections
- Wire size AWG: 14-26 AWG
- Wire size: 2.5 mm²
- Wire guard: Yes
- Electrical connections
- Connector shape: Straight
- IT connections
- Connection type: Screw connection
- Product basic info
- Colour: Black
- Depth: 7.5 mm
- Height: 10 mm
- Weight: 2.7 g
- Width: 15 mm
- Material: Glass-filled polyester
- Additional material: Polyamide 66
- EAN: 5410329271398
