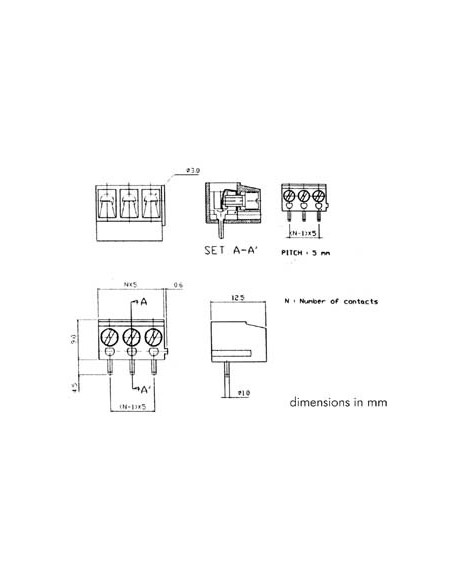

SCREW CONNECTOR, 3 POLES, SQUARE TYPE, IVORY, PITCH   5mm

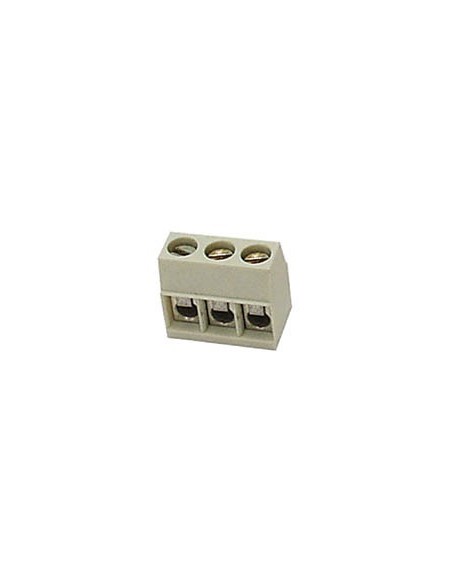

SCREW CONNECTOR, 3 POLES, SQUARE TYPE, IVORY, PITCH   5mm

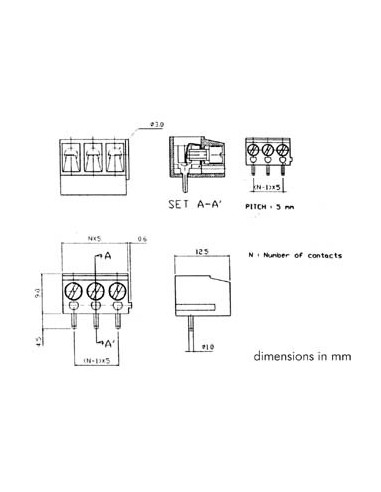

SCREW CONNECTOR, 3 POLES, SQUARE TYPE, IVORY,...
SCREW CONNECTOR, 3 POLES, SQUARE TYPE, IVORY,...

SCREW CONNECTOR, 3 POLES, SQUARE TYPE, IVORY, PITCH 5mm

SCREW03/H
Available
€1.10
Tax included
SCREW CONNECTOR, 3 POLES, SQUARE TYPE, IVORY, PITCH 5mm

The minimum purchase order quantity for the product is 5.


Specification(s):
  • this standard version offers an economical and reliable solution for the connection of cables to PC boards
  • with wire guard
  • blocks are stackable
Feature(s):
  • Physical properties
  • Diameter lead: 1 mm
  • Stackable: Yes
  • Shape: Square
  • Solder pins material: Tin-plated
  • Contact material: Brass
  • Electrical data
  • Dielectric strength voltage rating VAC: 500 V
  • Insulation resistance at 1000 VDC: 5000 megohm
  • Maximum current per way: 16 A
  • Insulation withstand voltage (VAC per min): 2000 V
  • Voltage rating VAC per way: 300 V
  • Technical data
  • Pitch: 5 mm
  • Mounting type: PCB, Through hole
  • Number of contacts: 3
  • Flammability rating: UL 94 V-0
  • Environmental data
  • Operating temperature: -33-120 °C
  • Soldering tip temperature: 260 °C
  • Operational properties
  • Mounting hole diameter: 1.5 mm
  • Connections
  • Wire size AWG: 14-22 AWG
  • Wire size: 2.5 mm²
  • Wire guard: Yes
  • Electrical connections
  • Connector shape: Straight
  • IT connections
  • Connection type: Screw connection
  • Power supply
  • Voltage rating VAC: 300 V AC
  • Product basic info
  • Colour: White
  • Depth: 9 mm
  • Height: 12.5 mm
  • Weight: 3.7 g
  • Width: 15 mm
  • Material: Glass-filled polyester
  • Additional material: Brass, Polyamide 66, PBT, Stainless steel, Steel


  • EAN: 5410329271381
