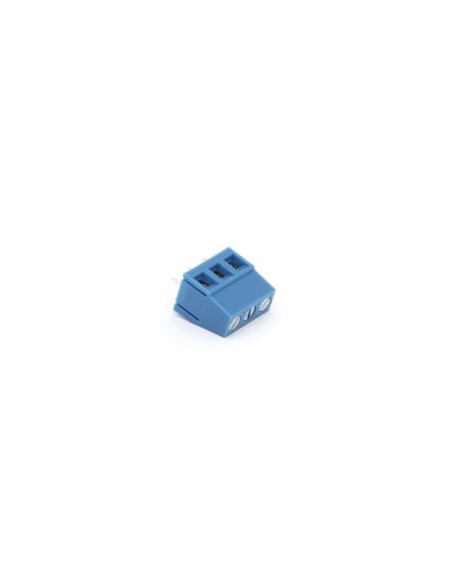

PROFESSIONAL SCREW CONNECTOR PRINT, 3 POLES, CLAMPING TYPE, 5mm PITCH
SCREW03P
Available
€0.86
Tax included
PROFESSIONAL SCREW CONNECTOR PRINT, 3 POLES, CLAMPING TYPE, 5mm PITCH
Specification(s):
- blocks are stackable
- Physical properties
- Diameter lead: 0.9 mm
- Stackable: Yes
- Shape: Square
- Contact material: Tin-plated brass
- Electrical data
- Minimum insulation resistance at 500 VDC: 500 megohm
- Dielectric strength voltage rating VAC: 2000 V
- Maximum current per way: 10 A
- Voltage rating VAC per way: 3000 V

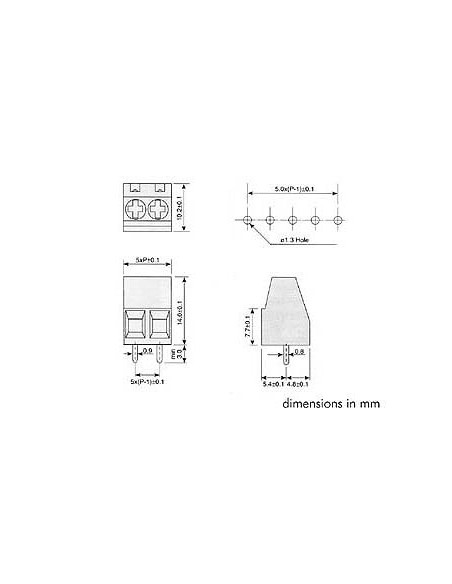

- Technical data
- Pitch: 5 mm
- Mounting type: PCB, Through hole
- Number of contacts: 3
- Flammability rating: UL 94 V-0
- Environmental data
- Operating temperature: -40-105 °C
- Operational properties
- Mounting hole diameter: 1.3 mm
- Connections
- Wire size AWG: 12-24 AWG
- Wire size: 2.5 mm²
- Electrical connections
- Connector shape: Straight
- IT connections
- Connection type: Clamping, Screw connection
- Product basic info
- Colour: Blue
- Depth: 10.2 mm
- Height: 14 mm
- Weight: 3.5 g
- Width: 15 mm
- Material: Polyamide 66
- EAN: 5410329308063
