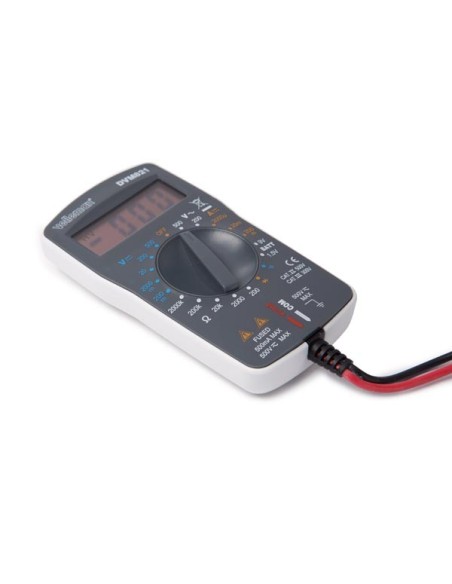

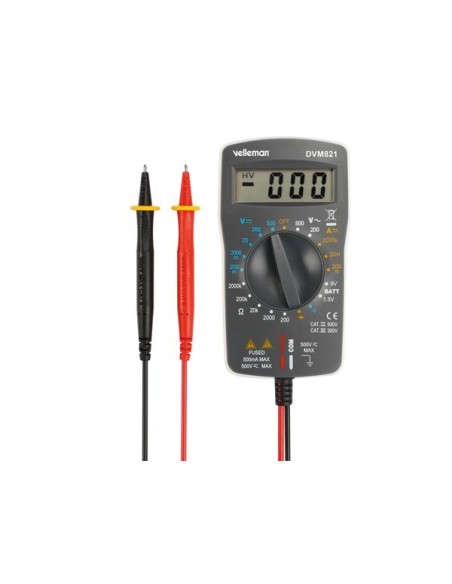

DIGITAL MULTIMETER - CAT II 500V / CAT III 300 V - 1999 COUNTS

Specification(s):

• CAT II 500V / CAT III 300V
• 19 ranges
• automatic polarity indication
• automatic zero adjustment
• voltage measurements: 500 VAC and 500 VDC max.
• current measurements: DC 0.5 A max.
• resistance measurements: 2 MOhm
• with wired test leads
• [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]

Feature(s):

• Physical properties
• Cable length: 0.7 m
• Display height: 15 mm
• Display width: 47 mm
• Backlight: No
• Maximum digits display: 1999
• Display type: LCD
• Electrical data
• AC voltage measurements: 0-200 V, 500 V
• AC voltage:
  • 0-200 V / 500 V
    • basic accuracy: ± (1.5% rdg + 3 digits)
    • input impedance: 450 kOhm
    • frequency range: 40-500 Hz
    • maximum input: 500 V RMS
• Audible continuity measurement: Yes
• Audible continuity:

  built-in buzzer sounds if resistance is less than 50 Ohm

• Automatic polarity indication: Yes
• Battery test measurements: 1.5 V, 9 V
• Battery test:
  • basic accuracy: ± (5.0% rdg + 5 digits)
  • overload protection: 0.5 A / 600 V fuse
• DC current measurements: 20 mA, 200 mA, 2000 µA
• DC current:
  • basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200 mA range
  • overload protection: 0.5A / 600 V fuse in mA range
• DC voltage measurements: 0-200 mV, 2 V, 200 V, 500 V
• DC voltage:
  • basic accuracy: ±(1.0% rdg + 2 digits) , ±(1.2% rdg + 2 digits) for 500V range
  • input impedance: 1MOhm
  • maximum input: 500V
  • overload protection: 500V DC or AC rms
• Diode test: Yes
• Diode test specifications:

  test voltage: approx. 1.8 V

• Fuse type: F 0.50 A / 600 V, 5 x 20 mm (not-replaceable)
• Out of range indication: Yes
• Resistance measurements: 0-200 Ohm, 20 kOhm, 200 kOhm, 2000 kOhm, 2000 Ohm
• Resistance:
  • basic accuracy: ± ( 1.0% rgd + 3 digits); ± (1.0% rdg + 5 digits) for 200 Ohm range, ± (1.5% rdg + 3 digits) for 2 kOhm range
  • overload protection: 0.5 A / 600 V fuse
• Transistor test: No
• True RMS: No
• Technical data
• Data-hold function: No
• Safety rating: CAT II / 500 V, CAT III / 300 V
• Voltage tester type: AC/DC
• Automatic power-off function: No
• Environmental data
• IP rating: IPx0
• Usage location: Indoor only
• Maximum storage humidity: <  90 %
• Maximum operating humidity: <  80 %
• Operating temperature °C: 0-40 °C
• Operating temperature °F: 32-104 °F
• Storage temperature °C: -20-60 °C
• Storage temperature °F: -4-140 °F
• Operational properties
• Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
• Number ranges: 19
• Range setting: Manual
• Power supply
• Number of batteries: 2
• Batteries: Yes
• Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
• Battery composition: Alkaline
• Low-battery indicator: Yes
• Included
• Set contents:

  wired test leads

• Product basic info
• Colour: Grey
• Additional colour: White
• Depth: 35 mm
• Height: 173 mm
• Weight: 177 g
• Width: 113 mm
• Material: ABS

• EAN: 5410329639808
