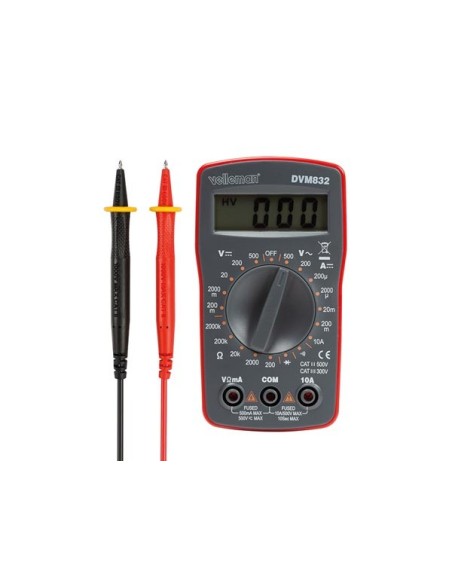

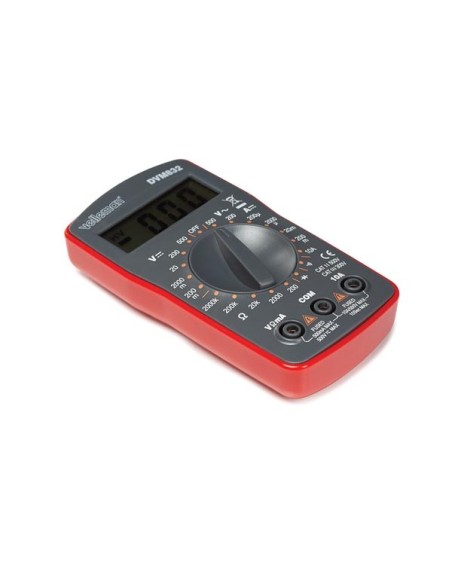

DIGITAL MULTIMETER - CAT II 500 V / CAT III 300 V - 10 A - 1999 COUNTS
DVM832
Out-of-Stock
€17.96
Tax included
DIGITAL MULTIMETER - CAT II 500 V / CAT III 300 V - 10 A - 1999 COUNTS
Specification(s):
- CAT II 500V / CAT III 300V
- 19 ranges
- automatic polarity indication
- automatic zero adjustment
- voltage measurements: 500 VAC and 500 VDC max.
- current measurements: DC 0.5 A max.
- resistance measurements: 2 MOhm
- with separate test leads (incl.): [product name=TLM71]TLM71[/product]
- [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
- Physical properties
- Cable length: 0.9 m
- Display height: 15 mm
- Display width: 47 mm
- Backlight: No
- Maximum digits display: 1999
- Display type: LCD
- Electrical data
- AC voltage measurements: 0-200 V, 500 V
- AC voltage:
- 0-200 V / 500 V
- basic accuracy: ± (1.5% rdg + 3 digits)
- input impedance: 450 kOhm
- frequency range: 40-500 Hz
- maximum input: 500V RMS
- 0-200 V / 500 V
- Audible continuity measurement: Yes
- Audible continuity:
built-in buzzer sounds if resistance is less than 50 Ohm
- Automatic polarity indication: Yes
- DC current measurements: 10 A, 20 mA, 200 µA, 200 mA, 2000 µA
- DC current:
- basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200mA range; ± (2.0% rdg + 3 digits) for 10 A range
- overload protection: 0.5 A / 600 V fuse in mA range; 10 A / 600 V fuse in 10 A range
- DC voltage measurements: 0-200 mV, 20 V, 200 V, 500 V
- DC voltage:
- basic accuracy: ± (1.0% rdg + 2 digits) , ±(1.2% rdg + 2 digits) for 500 V range
- input impedance: 1 MOhm
- maximum input: 500 V
- overload protection: 500 V DC or AC rms
- Diode test: Yes
- Diode test specifications:
- test forward voltage of diode
- test voltage: approx. 1.8 V
- test forward voltage of diode
- Fuse type: F 0.50 A / 600 V, 5 x 20 mm (not-replaceable), F 10 A / 600 V, 5 x 20 mm (not-replaceable)
- Out of range indication: Yes
- Resistance measurements: 0-200 Ohm, 20 kOhm, 200 kOhm, 2000 kOhm, 2000 Ohm
- Resistance:
- basic accuracy: ± ( 1.0% rdg +3 digits); ± (1.0% rdg + 5 digits) for 200Ohm range, ± (1.5% rdg + 3 digits) for 2kOhm range
- overload protection: 0.5 A / 600 V fuse
- Transistor test: No
- True RMS: No
- Technical data
- Data-hold function: No
- Safety rating: CAT II / 500 V, CAT III / 300 V
- Voltage tester type: AC/DC
- Automatic power-off function: No
- Environmental data
- IP rating: IPx0
- Usage location: Indoor only
- Maximum storage humidity: < 90 %
- Maximum operating humidity: < 80 %
- Operating temperature °C: 0-40 °C
- Operating temperature °F: 32-104 °F
- Storage temperature °C: -20-60 °C
- Storage temperature °F: -4-140 °F
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Number ranges: 19
- Range setting: Manual
- Power supply
- Number of batteries: 2
- Batteries: Yes
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
- Low-battery indicator: Yes
- Included
- Set contents:

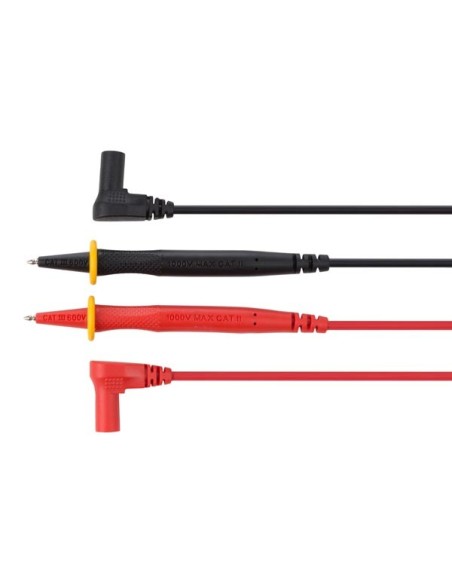

test lead probe : CAT II 500 V / CAT III 300 V, 10 A, L = 90 cm
- Product basic info
- Colour: Grey
- Additional colour: Red
- Depth: 30 mm
- Height: 118 mm
- Weight: 180 g
- Width: 65 mm
- Material: ABS
- EAN: 5410329639921
