DVM101
Out-of-Stock
€49.90
Tax included

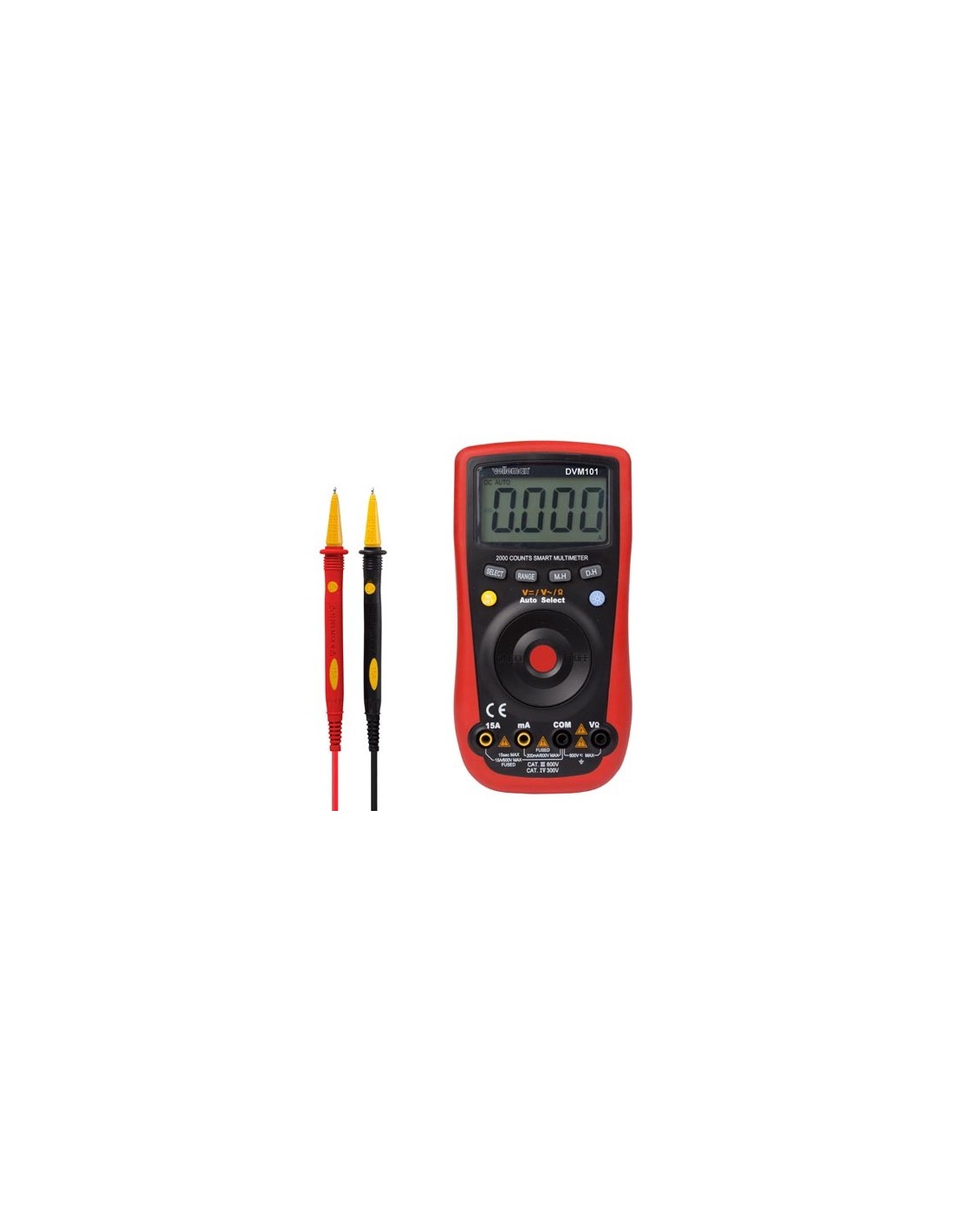

DIGITAL MULTIMETER - CAT III 600 V / CAT IV 300 V - 2000 COUNTS - AUTO SELECT - SMART RANGE


Specification(s):
  • CAT. III 600 V / CAT. IV 300 V
  • auto select and auto range
  • DMM with automatic polarity indication and 3 ½-digit LCD display
  • voltage measurements: 600 VAC and 600 VDC max.
  • current measurements: DC 15 A and AC 15 A max.
  • resistance measurements: 20 MOhm max.
  • with separate test leads (incl.): [product name=TLM72]TLM72[/product]
  • IMPORTANT: This device cannot measure positive voltage less than <2V and the manual mV setting is not possible.
  • [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
Feature(s):
  • DC voltage: 2 V / 20 V / 200 V / 600 V
  • basic accuracy: ± (0.5% rdg + 2 digits) , ±(0.8% rdg + 2 digits) for 600 V range
  • input impedance: 10 MOhm
  • maximum input: 600 V
  • AC voltage: 2 V / 20 V / 200 V / 600 V
  • basic accuracy: ± (0.8% rdg + 3 digits) , ±(1.2% rdg + 3 digits) for 600 V range
  • input impedance: 10 MOhm
  • frequency range: 40 - 500 Hz
  • maximum input: 600 V
  • DC current: 20 mA / 200 mA / 2 A / 15 A
  • basic accuracy: ± (1.2% rdg + 2 digits) , ±(2.0% rdg + 3 digits) for 2 A to 15 A range
  • overload protection: F500 mA / 600 V - 15 A / 600 V
  • AC current: 20 mA / 200 mA / 2 A / 15 A
  • basic accuracy: ± (1.5% rdg + 3 digits) , ±(2.5% rdg + 5 digits) for 2 A to 15 A range
  • overload protection: F500 mA / 600 V - 15 A / 600 V
  • resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm
  • basic accuracy: ± ( 1.0% rdg + 2 digits), ± (1.5% rdg + 3 digits) for 20 MOhm range
  • overload protection: 600 VDC or rms AC
  • capacitance: -
  • accuracy: -
  • inductance: -
  • accuracy: -
  • frequency: -
  • basic accuracy: -
  • overload protection: -
  • temperature: -
  • basic accuracy: -
  • battery test: -
  • basic accuracy: -
  • overload protection: -
  • audible continuity measurement: built-in buzzer sounds if resistance is less than 50 Ohm
  • test voltage: approx. 0.5 V
  • diode measurement: test forward voltage of diode
  • test voltage: approx. 1.5 V
  • overrange: yes
  • continuity buzzer: yes
  • transistor test: no
  • diode test: yes
  • low-battery indication: yes
  • maximum display: 3 ½
  • LCD display size:
  • size: 61 x 32 mm
  • digits: max. 1999
  • ranging mode: auto range and manual range
  • data hold: yes
  • backlight: yes
  • auto power-off: no
  • operating environment:
  • temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • humidity: < 80% RH
  • storage environment:
  • temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • humidity: < 90% RH
  • fuse:
  • F0.5 A / 600 V 5 x 20 mm (replaceable)
  • F15 A / 1000 V 5 x 20 mm (replaceable)
  • test lead probe: CAT III 1000 V / CAT IV 600 V, 15 A, L = 75 cm
  • dimensions: 177 x 92 x 40 mm
  • weight (with battery): 320 g
  • power supply: 1 x 9 V 6F22 battery (incl.)
  • packing: double blister


  • EAN: 5410329659288
