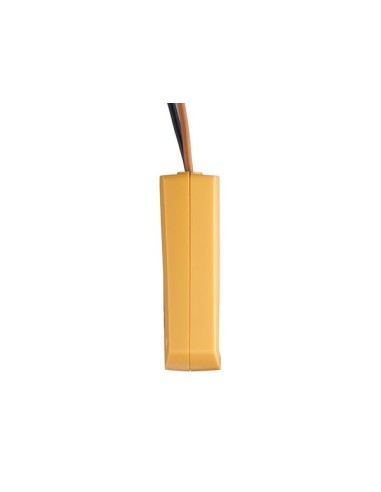

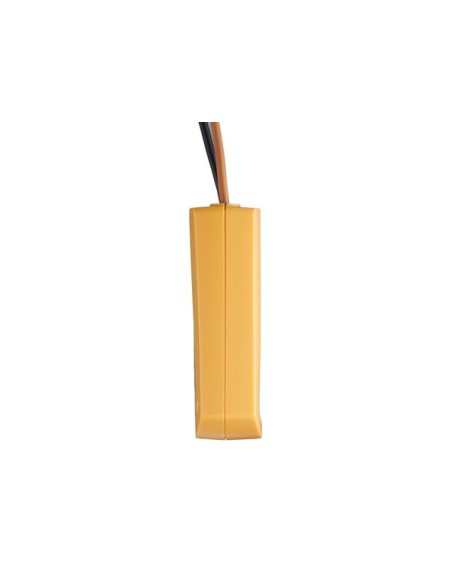

Wiha rotational field indicator 100-700 VAC - CAT IV (45221)

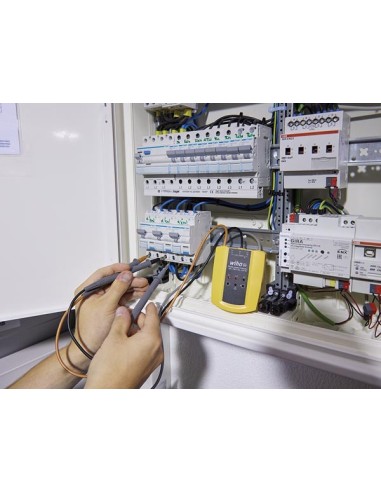

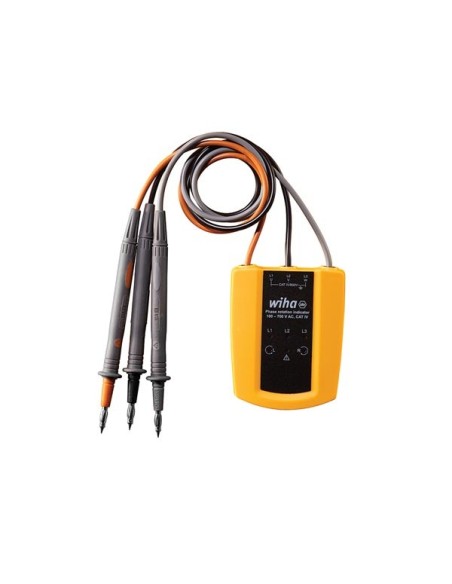

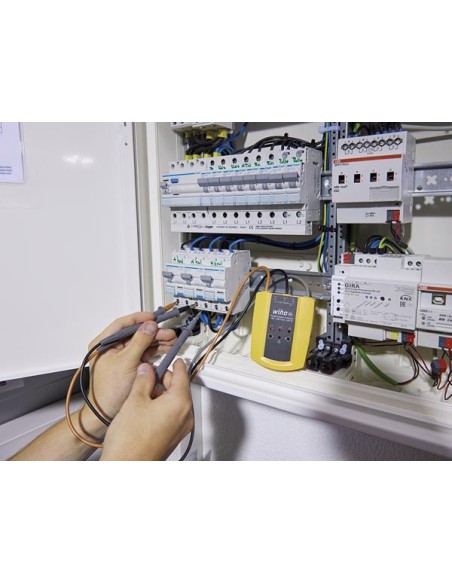

[youtube]KR0-UyhdWnc[/youtube] Determining the direction of rotation in a three-phase power supply to check electrical connections? Not a problem with the Wiha rotational field indicator with integrated phase display. The rotation direction as well as the live phases are reliably indentified with the help of an LED display. A crocodile clip included with the delivery allows a simple connection, e.g. with a motor terminal board. In combination with the included test tips, the rotation indicator from Wiha offers great testing flexibility. The rotational field indicator works with the mains voltage itself, so no batteries are required. According to the measurement category CAT III up to 1,000 V and CAT IV up to 600 V the rotation indicator offers maximum safety for working directly on the source of low voltage installations. IEC/EN 61010-1; IEC/EN 61577-7; IEC/EN 611010-031.

Specification(s):

• Simplifies your work: LED display for easy to read measurement results.
• Increases your efficiency: Simple determination of the rotary field and phase indication in a single tool.
• Increases your flexibility: Testing tips for variable application options.
• Application: Determination of the rotation direction and monitoring the phases.
• Measuring category: CAT IV up to 600 V.
• Standard: IP40

Feature(s):

• Physical properties
• Number of phases: 3
• Electrical data
• Phase display: LED L1, LED L2, LED L3
• Rotation field indication: LED L, LED R
• Technical data
• Pollution degree: 2
• Safety rating: CAT IV / 600 V
• Safety standard: EN 61010-031, EN 61010-1, EN 61577-7
• Overvoltage protection: 600 V
• Set-up options
• Alarm sound type: Buzzer, Optical
• Environmental data
• IP rating: IP40
• Usage location: Indoor & outdoor
• Operating temperature: 0-40 °C
• Operational properties
• Instruction manual languages: Danish, Dutch, English, French, German, Italian, Polish, Spanish, Swedish
• Power supply
• Input current rating: 3.5 mA
• Input voltage rating VAC: 100-700 V
• Input voltage rating VDC: 100/700 V
• Maximum voltage range phase against phase: 700 V
• Maximum input voltage per phase (LX) against neutral (N): 400 V
• Included
• LED indicators: Yes
• Product basic info
• Colour: Yellow
• Additional colour: Black, Grey
• Depth: 31 mm
• Height: 93 mm
• Weight: 100 g
• Width: 75 mm

• EAN: 4010995452216
