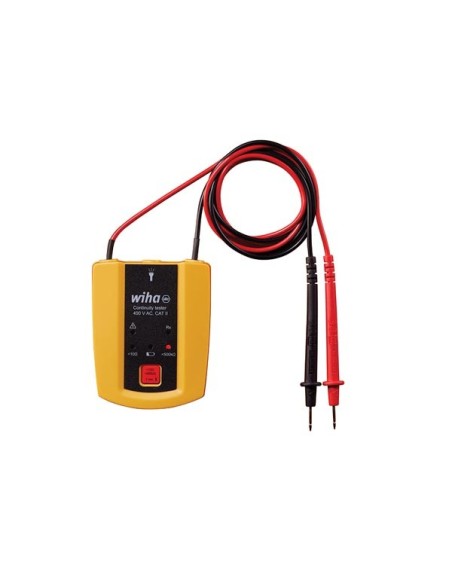

Wiha continuity tester 400 VAC - CAT II (45222)

[youtube]KR0-UyhdWnc[/youtube] Was the installation carried out correctly? With the continuity tester from Wiha, electrical circuits and electrical consumers can be quickly and easily tested for continuity. Thanks to a signal sound and LED display the continuity measurement is easy to read. If the device is not in use for 30 seconds, it automatically switches off to save energy. In addition, the continuity tester from Wiha has an integrated flashlight function, providing optimal illumination conditions even in poorly lit working environments. Both in the area of tested current and in various resistance areas, the continuity tester from Wiha offers reliable test results coupled with maximum safety according to CAT II up to 600 V. EN 61010-1.

Specification(s):

• Simplifies your work:
• Simple testing thanks to LED display and signal sound.
• An integrated flashlight function ensures optimal illumination.
• Increases your flexibility: Quick continuity test up to 20 mA tested current and two large resistance ranges up to 10 Ohm and up to 500 kOhm.

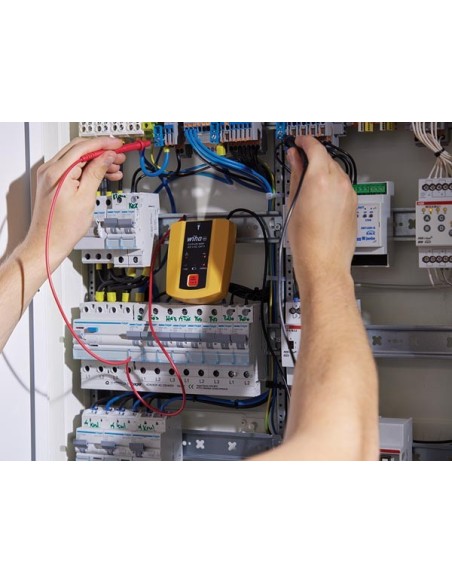

• Application: For testing electrical connections, components, and equipment.
• Measuring category: CAT II up to 600 V.
• Standard: IP40., CE certified.

Feature(s):

• Electrical data
• AC current:
  • area 1: < 5 µA
  • area 2: < 20 mA
• AC voltage measurements: 400 V
• Resistance measurements: 0-10 Ohm, 0-500 kOhm
• Resistance:
  • area 1: 0 - 500 kohm
  • area 2: 0 - 10 ohm
• Continuity test: Yes
• Technical data
• Safety rating: CAT I / 600 V
• Safety standard: EN 61010-1
• Overvoltage protection: 400 V
• Automatic power-on function: Yes
• Set-up options
• Alarm sound type: Buzzer, Optical
• Environmental data
• IP rating: IP40
• Usage location: Indoor & outdoor
• Operating temperature: 0-40 °C
• Operational properties
• Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
• Power supply
• Battery required: Yes
• Battery operated: Yes
• Number of batteries: 2
• Batteries: Yes
• Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
• Battery composition: Alkaline
• Battery voltage rating: 3 V
• Included
• LED indicators: Yes
• Product basic info
• Colour: Yellow
• Additional colour: Black
• Depth: 31 mm
• Height: 93 mm
• Weight: 100 g
• Width: 75 mm

• EAN: 4010995452223
