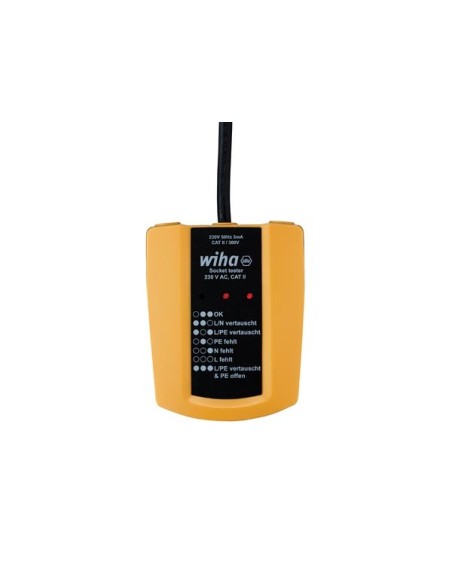

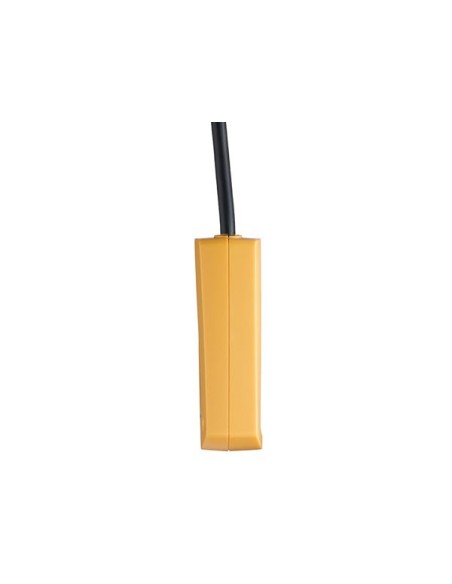

Wiha socket tester 230 VAC - CAT II (45220)

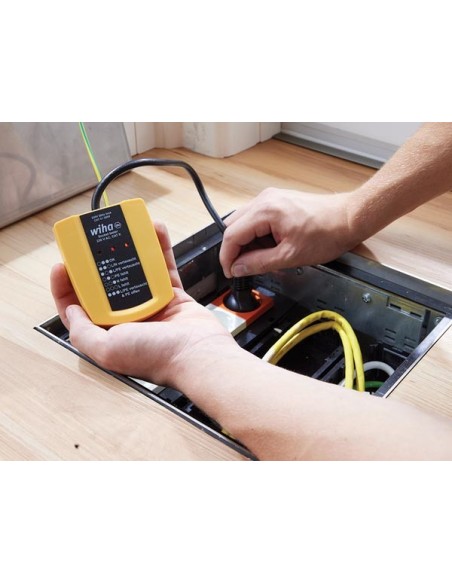

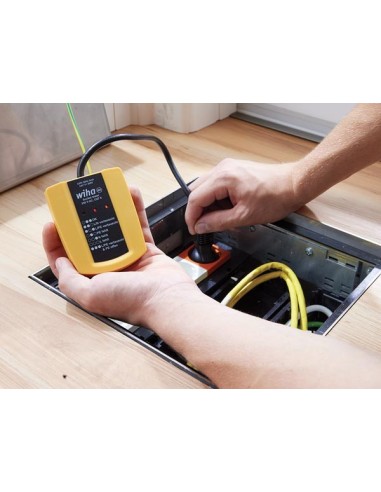

[youtube]KR0-UyhdWnc[/youtube] Was the socket connected correctly? The socket tester from Wiha allows easy testing of Schuko sockets for correct wiring. Errors are clearly indicated by an LED display and allocated to the error source. Thanks to a flexible cable on the Schuko socket, the socket tester from Wiha can also be used in cramped work situations and allows easy reading of the measurement results at all times. In line with the measurement category CAT II up to 300 V, the socket tester from Wiha offers maximum security when working on electrical circuits. EN 61010-1 (DIN VDE 0411-1).

Specification(s):

• Makes handling easier: Schuko socket with a flexible cable for easier access.
• Simplifies your work: Easy error detection via LED display.
• Application: For testing and error recognition of Schuko sockets, cable drums, and extension cables.
• Measuring category: CAT II up to 300 V.
• Standard: IP40., CE-certified.

Feature(s):

• Physical properties
• Display: Yes
• Display type: LED
• Electrical data
• Maximum voltage tolerance: 5 V
• Technical data
• Pollution degree: 2
• Safety rating: CAT II / 300 V
• Safety standard: EN 61010-1 (DIN VDE 0411-1)
• Overvoltage protection: 300 V
• Environmental data
• IP rating: IP40
• Usage location: Indoor & outdoor
• Storage temperature: -10-50 °C
• Operating temperature: -10-50 °C
• Operational properties
• Instruction manual languages: Danish, Dutch, English, French, German, Italian, Polish, Portuguese, Spanish, Swedish
• Electrical connections
• Mains plug type: France/Germany (type E/F)
• Power supply
• Battery required: Yes
• Input frequency rating: 50 Hz
• Battery operated: Yes
• Number of batteries: 2
• Battery: Yes
• Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
• Battery voltage rating: 3 V
• Voltage rating VAC: 230 V AC
• Included
• LED indicators: Yes
• Product basic info
• Colour: Yellow
• Additional colour: Black
• Depth: 31 mm
• Height: 93 mm
• Weight: 150 g
• Width: 75 mm

• EAN: 4010995452209
