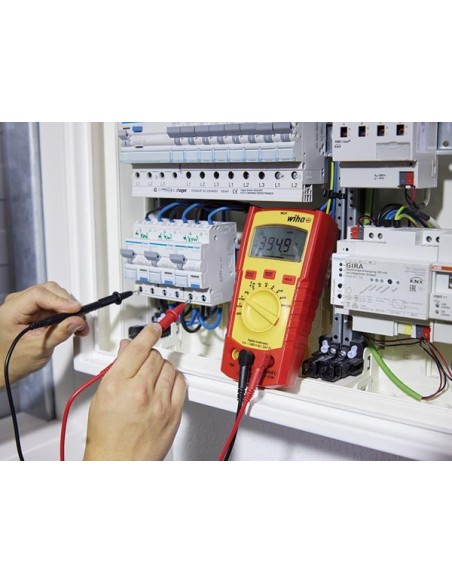

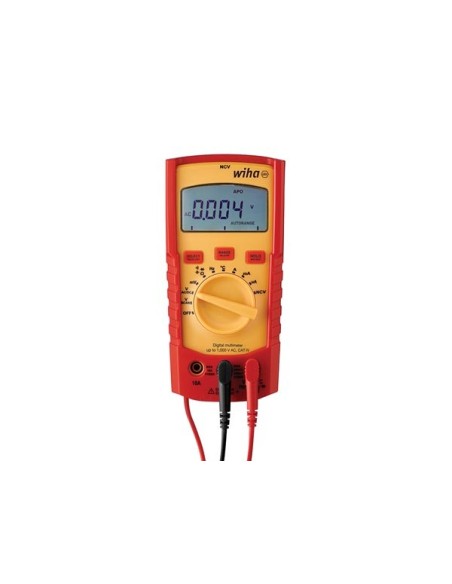

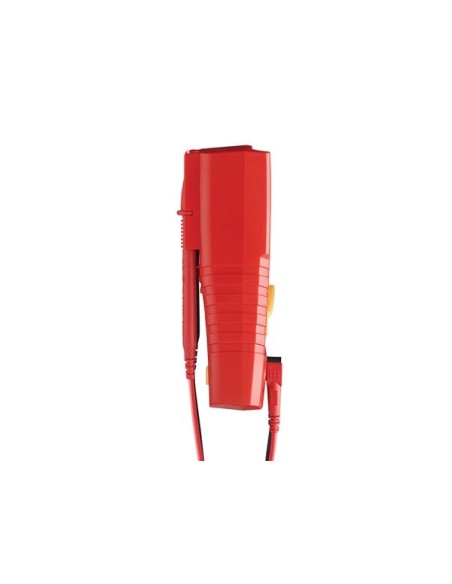

Wiha digital multimeter up to 1.000 VAC - CAT IV (45215)

[youtube]KR0-UyhdWnc[/youtube] Are you looking for a multimeter that covers the relevant measurement variables needed during the workday of an electrician? The digital multimeter from Wiha optimally equips you for a wide variety of measurements. This single tool can be used to make voltage, current, resistance, frequency, capacity, and temperature measurements. In addition, continuity and diode tests are also possible. A large LCD display with background illumination and data hold function makes the measurement results immediately readable even beyond the measurement process. The additional bar graph display ensures the quick and clear recognition of changes. An additional signal sound indicates the current flow during the continuity check. Thanks to the automatic measuring range selection, the manual pre-selection of specific measurement ranges is no longer required. The Measurement of TRUE-RMS values facilitates the application of the measurement results. The storage of previous measurement values and their comparison to future measurement results allows various control options. Add to this optimal result finding through the generation of minimum and maximum values. According to the measurement categories CAT III up to 1.000 VAC and CAT IV up to 600 V, the digital multimeter from Wiha offers maximum safety for working on building installations and directly on the sources of low-voltage installations. EN 61010-1, EN 61010-2-033, EN 61010-031.

Specification(s):

• Simplifies your work::
• Effective values due to True RMS function facilitate the right application.
• Large LCD display with bar graph and background illumination as well as signal sound for easy to read measurement results.
• Simplifies storage and relative value measurement and expedites the comparison of measured values.
• Increases your efficiency:: Quick result finding based on minimum and maximum values.
• Makes handling easier: Automatic measuring range setting saves the manual pre-selection.
• Application: For multi-functional use in different application locations.
• Standard: CE certified

Feature(s):

• Physical properties
• Backlight: Yes
• Maximum digits display: 6
• Display type: LCD
• Electrical data
• AC current measurements: 0-600 µA, 10 A
• AC voltage measurements: 0-1000 V
• Audible continuity measurement: Yes
• Automatic polarity indication: Yes
• Capacity measurements: 60 mF
• DC current measurements: 0-600 µA, 10 A
• DC voltage measurements: 0-1000 V
• Diode test: Yes
• Diode test specifications:

  up to 2 V

• Frequency measurements: 60 mHz
• Fuse type: F 0.60 A/1000V, ceramic 6.3 x 32 mm, F10 / 1000 V, ceramic 6.3 x 32 mm
• Out of range indication: Yes
• Resistance measurements: 200 MOhm
• True RMS: Yes
• Continuity test: Yes
• Continuity test specifications:

  < 30 ohm

• Technical data
• Pollution degree: 2
• Data-hold function: Yes
• Safety rating: CAT III / 1000 V, CAT IV / 600 V
• Voltage tester type: AC/DC
• Automatic power-off function: Yes
• Safety standard: EN 61010-031, EN 61010-1, EN 61010-2-033
• Relative value measurement: Yes
• Remote voltage test: Yes
• Environmental data
• IP rating: IP40
• Usage location: Indoor & outdoor
• Operating temperature °C: 0-50 °C
• Storage temperature °C: -10-60 °C
• Operational properties
• Instruction manual languages: Dutch, English, French, German, Italian, Polish, Spanish, Swedish
• Temperature measuring range °C: -200-1350 °C
• Range setting: Automatic, Manual
• Power supply
• Number of batteries: 2
• Batteries: Yes
• Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
• Battery composition: Alkaline
• Low-battery indicator: Yes
• Included
• Set contents:

  test leads

• Product basic info
• Colour: Red
• Depth: 45 mm
• Height: 150 mm
• Weight: 330 g
• Width: 80 mm
• Material: ABS

• EAN: 4010995452155
