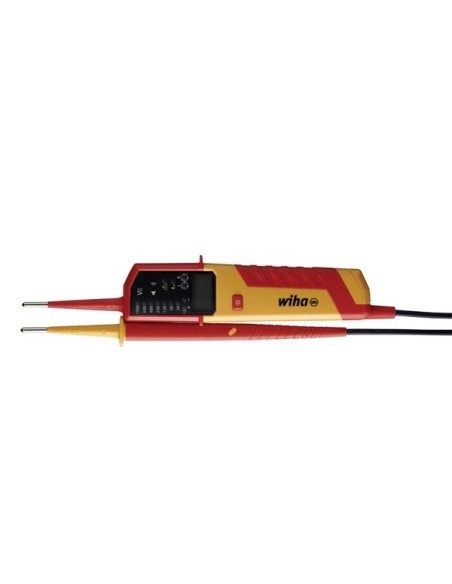

Wiha voltage and continuity tester eMobility 12-1.000 VAC - CAT IV (44319)

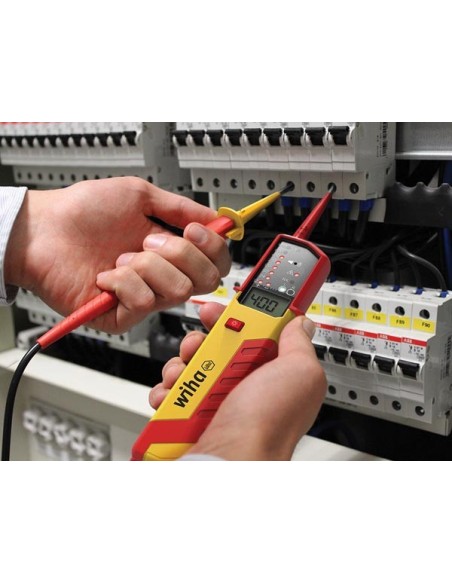

[youtube]KR0-UyhdWnc[/youtube] Before starting work on live parts, it must be ensured that the system is electrically isolated. In addition to the standard work of electricians or electrical specialists, this now also applies to work on electrical cars and e-scooters, which is why the two-pole voltage tester is also part of 'every car repair workshop's basic equipment. Thanks to the large measuring range from 12 to 1.000 VAC or 1.500 VDC and compliance with the highest safety level CAT IV, the voltage tester is also suited for testing hybrid and electric vehicles as well as photovoltaic systems. Thanks to the illuminated LED display, during a measurement, the present voltage is 'shown' on an 8-level scale, as well as 'the' actual value in the illuminated LC display. The voltage and continuity tester additionally offers the option of single-pole phase testing, optical rotational field display, as well as automatic polarity recognition. In addition, it can be used for quick one-handed testing thanks to the integrated spacer. Due to the integrated 'measuring' point illumination, the two-pole voltage tester is also suited for work in poorly 'lit working' environments. For additional safety, a low battery charge is indicated directly on the LC display. It is complaint with the standards EN 61010-1 and EN 61243-3:2014.

Specification(s):
  • simplifies your work:
  • Illuminated LC display, LED scale and signal sound for easy to read measurement results.
  • Quick one-hand testing on power sockets due to the 19 mm contact distance.
  • Increases your flexibility: Two-pin voltage tester covers a large voltage range from 12-1.000 VAC, as well as 12-1.500 VDC.
  • Application:
  • To ensure electrical isolation.
  • For voltage testing, flow testing and rotational field testing.
  • Also suited for testing hybrid and electric vehicles as well as photovoltaic systems.
  • Standard: IP64, CE certified and GS tested
Feature(s):
  • Physical properties
  • Display type: LED and LCD
  • Electrical data
  • AC voltage measurements: 12-1000 V
  • DC voltage measurements: 12-1500 V
  • Continuity test: Yes
  • Continuity test specifications:

    0 - 500 kohm

  • Rotation field indication: LED L, LED R
  • Technical data
  • Pollution degree: 2
  • Safety rating: CAT IV / 1000 V
  • Safety standard: EN 61010-1, EN 61423-3:2014
  • ATEX approval (EX): No
  • Measurement specifications:
    • 30 s ON (operation time)
    • 240 s OFF (recovery time)
    • Inherent time 1 s
    • Safety circuit < 3.5 mA (at 1.000 V)
  • Remote voltage test: No
  • Test specifications:
    • Single-pole phase test 100 - 700 VAC
    • Rotation field test 170 - 1.000V phase to phase
    • Permeability test measuring range 0 - 500 kohm + 50%
  • Photovoltaic compatible: No
  • eMobility compatible: Yes
  • FI check: No
  • LCD:
    • LED ELV display > 50 VAC, > 120 VDC
    • LCD range 4-digit LC display
    • LCD resolution 1 V
    • LCD precision +/- 3%, +/- 3 digits
    • LCD overflow display OL
  • Set-up options
  • Alarm sound type: Buzzer, Optical
  • Environmental data
  • IP rating: IP64
  • Usage location: Indoor & outdoor
  • Storage temperature: -20-70 °C
  • Maximum operating humidity: <= 85 %
  • Operating temperature: -15-40 °C
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
  • Power supply
  • Battery required: Yes
  • Battery operated: Yes
  • Number of batteries: 2
  • Batteries: Yes
  • Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
  • Battery composition: Alkaline
  • Battery voltage rating: 3 V
  • Input voltage rating VAC: 12-1000 V
  • Input voltage rating VDC: 12-1500 V
  • Included
  • LED light: Yes
  • Product basic info
  • Colour: Red
  • Additional colour: Yellow
  • Depth: 30 mm
  • Height: 240 mm
  • Weight: 250 g
  • Width: 75 mm
  • Material: ABS


  • EAN: 4010995443191
