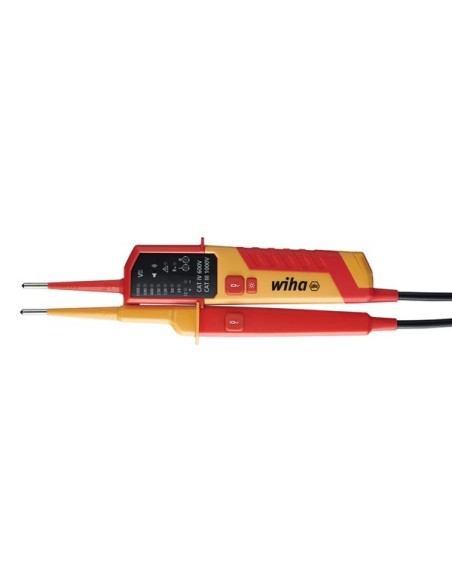

Wiha voltage and continuity tester 12-1.000 VAC/1500 VDC - CAT IV (45216)
WH45216
Out-of-Stock
€115.45
Tax included
Wiha voltage and continuity tester 12-1.000 VAC/1500 VDC - CAT IV (45216)
[youtube]KR0-UyhdWnc[/youtube]

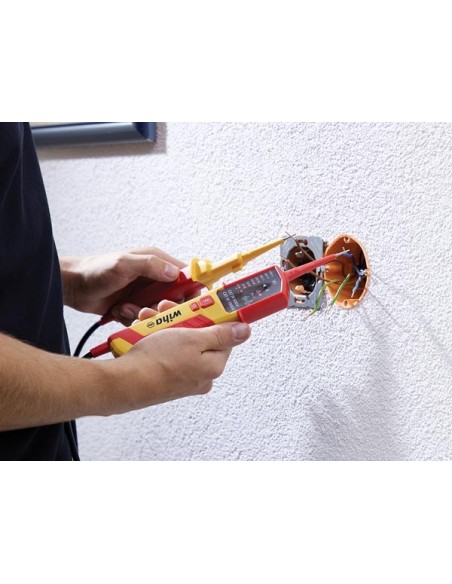

Safety rule: determine zero voltage! The voltage and continuity tester from Wiha is your ideal daily companion to easily check this prerequisite of the safety rule and to support you with the various requirements in your daily work. It allows voltage testing of a convenient range from 12 V to 1.000 VAC or 1.500 VDC. In addition, it can be used for continuity testing, optical rotational field testing, single-pole testing, and automatic polarity detection. LED display ensures easy to read measurement results. An additional signal sound indicates the current flow during the continuity check. The check can also be conveniently carried out on sockets with a single hand thanks to the integrated spacer. In addition, the voltage tester from Wiha has an integrated flashlight function, providing optimal illumination conditions even in poorly lit work environments. Simultaneous pressing of both buttons on both handles of the test tips allows the functional test of the FI protective switch by connecting a load. According to the measurement categories CAT III up to 1.000 V and CAT IV up to 600 V, the voltage and continuity tester from Wiha offers maximum safety for working on building installation and directly on the sources of low-voltage installations.
IEC 61243-3:2014.
Specification(s):
Specification(s):
- Simplifies your work:
- Quick one-hand testing on power sockets due to the 19 mm contact distance.
- An integrated flashlight function ensures optimal illumination.
- Meets your requirements: Checking the FI trigger by means of two load buttons.
- Application:
- For standardized voltage testing, continuity testing, rotational field testing incl. FI protective switch measurement.
- To determine zero voltage.
- Standard: IP 64. CE certified.
- Physical properties
- Display type: LED
- Electrical data
- AC voltage measurements: 12-1000 V
- DC voltage measurements: 12-1500 V
- Continuity test: Yes
- Continuity test specifications:
0 - 500 kohm
- Rotation field indication: LED L, LED R
- Technical data
- Pollution degree: 2
- Safety rating: CAT III / 1000 V, CAT IV / 600 V
- Safety standard: EN 61423-3:2014
- ATEX approval (EX): No
- Measurement specifications:
- 30 s ON (operation time)
- 240 s OFF (recovery time)
- Inherent time: 1 s
- Safety circuit: < 3.5 mA (at 1.000 V)
- Remote voltage test: No
- Test specifications:
- Single-pole phase test :100 - 700 VAC
- Rotation field test: 170 - 1.000V phase to phase
- Permeability test measuring range: 0 - 500 kohm + 50%
- Photovoltaic compatible: No
- eMobility compatible: No
- FI check: Yes
- LCD:
- LED ELV display:
- > 50 VAC
- > 120 VDC
- LCD range: 4-digit LC display
- LCD resolution: 1 V
- LCD precision: +/- 3%, +/- 3 digits
- LCD overflow display: OL
- LED ELV display:
- Set-up options
- Alarm sound type: Buzzer, Optical
- Environmental data
- IP rating: IP64
- Usage location: Indoor & outdoor
- Storage temperature: -20-60 °C
- Maximum operating humidity: <= 85 %
- Operating temperature: -15-50 °C
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Power supply
- Battery required: Yes
- Battery operated: Yes
- Number of batteries: 2
- Batteries: Yes
- Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
- Battery composition: Alkaline
- Battery voltage rating: 3 V
- Input voltage rating VAC: 12-1000 V
- Input voltage rating VDC: 12-1500 V
- Included
- LED light: Yes
- Product basic info
- Colour: Yellow
- Additional colour: Red
- Depth: 30 mm
- Height: 240 mm
- Weight: 250 g
- Width: 75 mm
- Material: ABS
- EAN: 4010995452162
