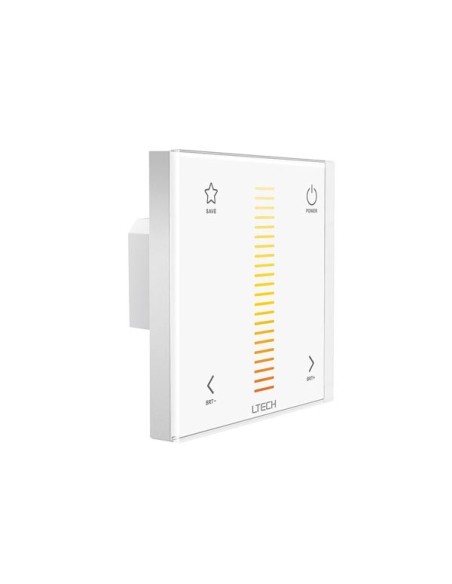

Colour temperature LED dimmer with touch panel
CHLSC52
Colour temperature LED dimmer with touch panel
Control and dim your 12 V and 24 V LED strips with this built-in dimmer. The intelligent tunable white technology allows you to set the desired colour temperature. The LED strip can be connected directly to the dimmer.
Specification(s):
Specification(s):
- Output: PWM power output
- User-friendly: The capacitive touch control technology on the full colour range makes colour selection easy.
- Easy and convenient: The LED strips can be connected directly to the power output.
- The touch panel is directly controllable by remote.
- Physical properties
- Light colour range LED: Tunable white
- Electrical data
- Maximum output current per channel: 4000 mA
- Maximum output current: 4 A
- Protection: Overload, Short-circuit
- Output power rating 12 V: 96 W
- Output power rating 24 V: 192 W
- Technical data
- Mounting type: Built-in
- Number of wireless setup zones: 1
- Set-up options
- Adjustable brightness: Yes
- Output protocols type: Manual control
- Output zones type: Single zone
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operating temperature: -20-55 °C
- Operational properties
- Instruction manual languages: English
- Power supply
- Input voltage rating VAC: 12-24 V
- Included
- On/off switch: Yes
- Brightness touch slider: Yes
- Zone selection: No
- Product basic info
- Colour: White
- Depth: 36 mm
- Height: 86 mm
- Weight: 225 g
- Width: 86 mm
- Material: PC (polycarbonate)
- EAN: 5410329754570
