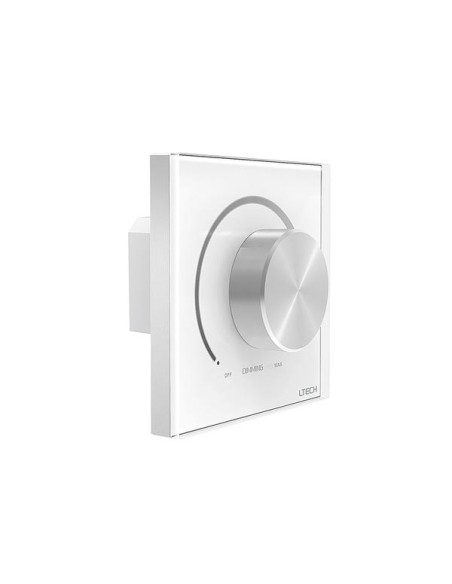

Single-channel LED rotary dimmer
CHLSC51
Available
€59.96
Tax included
Single-channel LED rotary dimmer
Control and dim your 12 V and 24 V LED strips with this built-in dimmer. The rotary knob allows you to continuously set the desired light intensity. The LED strip can be connected directly to the dimmer.
Specification(s):
Specification(s):
- Output: PWM power output
- Easy and convenient: The LED strips can be connected directly to the power output.
- 2 functions: Dimming and switching
- Physical properties
- Light colour range LED: Single colour
- Electrical data
- Maximum output current per channel: 6000 mA
- Maximum output current: 6 A
- Protection: Overload, Short-circuit
- Output power rating 12 V: 72 W
- Output power rating 24 V: 144 W
- Technical data
- Mounting type: Built-in
- Number of wireless setup zones: 1
- Set-up options
- Adjustable brightness: Yes
- Output protocols type: Manual control
- Output zones type: Single zone
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operating temperature: -10-55 °C
- Operational properties
- Instruction manual languages: English
- Power supply
- Input voltage rating VAC: 12-24 V
- Included
- On/off switch: No
- Brightness touch slider: No
- Zone selection: No
- Product basic info
- Colour: White
- Depth: 25 mm
- Height: 86 mm
- Weight: 220 g
- Width: 86 mm
- Material: PC (polycarbonate)
- EAN: 5410329754563
