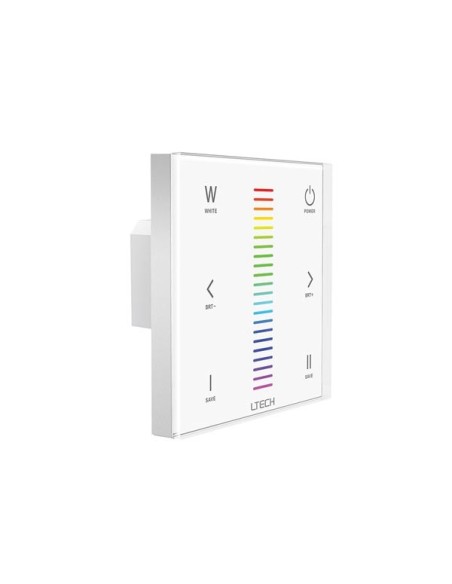

This 12-24 V built-in dimmer is suitable for controlling and dimming RGBW LED strips. The touch panel allows you to continuously set the desired light intensity. The LED strip can be connected directly to the dimmer.
Specification(s):
Specification(s):
- Output: PWM power output
- Easy and convenient: The LED strips can be connected directly to the power output.
- Scene mode: Save any scene you like and recall the scene with a single press on the same key.
- User-friendly: The capacitive touch control technology on the full colour range makes colour selection easy.
- The touch panel is directly controllable by remote.
- Physical properties
- Light colour range LED: RGBW
- Electrical data
- Maximum output current per channel: 3000 mA
- Maximum output current: 12 A
- Protection: Overload, Short-circuit
- Output power rating 12 V: 144 W
- Output power rating 24 V: 288 W
- Technical data
- Mounting type: Built-in
- Number of wireless setup zones: 1
- Set-up options
- Adjustable brightness: Yes
- Output protocols type: Manual control
- Output zones type: Single zone
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operating temperature: -20-55 °C
- Operational properties
- Instruction manual languages: English
- Power supply
- Input voltage rating VAC: 12-24 V
- Included
- On/off switch: Yes
- Brightness touch slider: Yes
- Zone selection: No
- Product basic info
- Colour: White
- Depth: 36 mm
- Height: 86 mm
- Weight: 225 g
- Width: 86 mm
- Material: PC (polycarbonate)
- EAN: 5410329754587
