MS5-R
Available
€2.81
Tax included

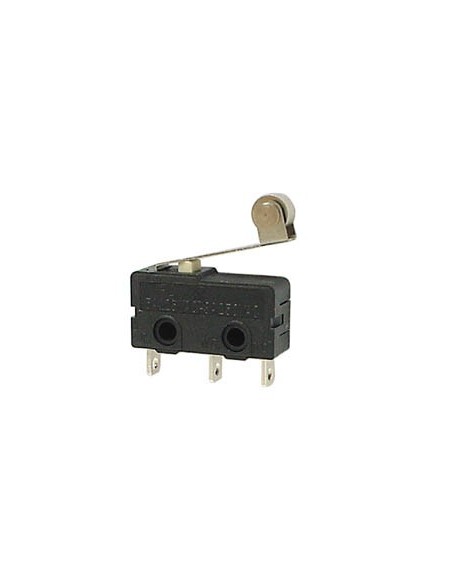

MICROSWITCH 5A, LEVER WITH LONG ROLLER


Specification(s):
  • roller long
Feature(s):
  • contact resistance: initially max. 30mohm
  • insulation resistance: min. 100Mohm at 500Vdc
  • dielectric strength: 1000Vac for 1 minute
  • mechanical life: min. 1000000 operations
  • electrical life: min. 200000 operations
  • ratings: 5A / 125Vac, 3A / 250Vac

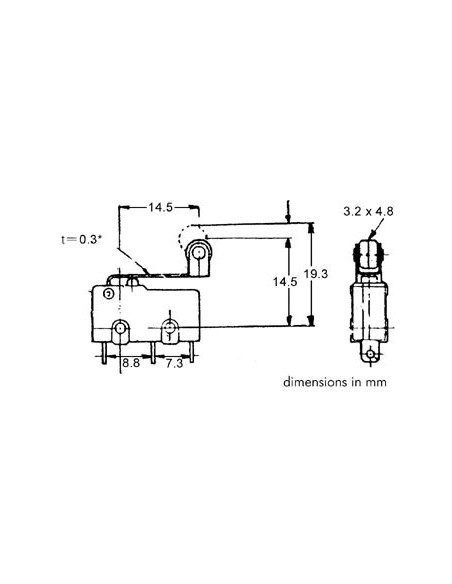

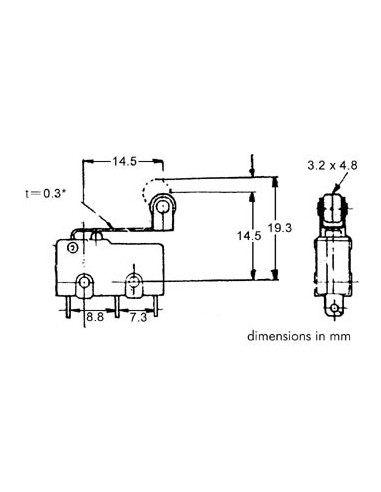

  • dimensions: 10.2 x 19.8 x 6.4mm


  • EAN: 5410329294304
