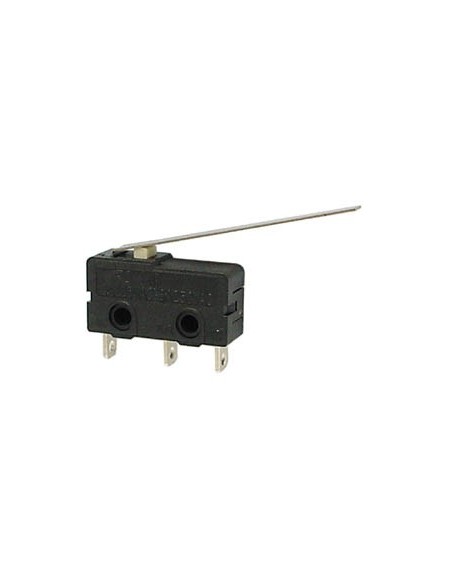

MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER
MICROSWITCH 5A, LONG LEVER

MICROSWITCH 5A, LONG LEVER

MS5-L
Available
€2.81
Tax included
MICROSWITCH 5A, LONG LEVER


Specification(s):
  • long lever
Feature(s):
  • contact resistance: initially max. 30mohm
  • insulation resistance: min. 100Mohm at 500Vdc
  • dielectric strength: 1000Vac for 1 minute
  • mechanical life: min. 1000000 operations
  • electrical life: min. 200000 operations
  • ratings: 5A / 125Vac, 3A / 250Vac

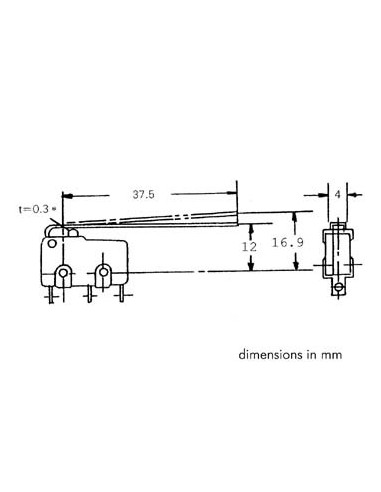

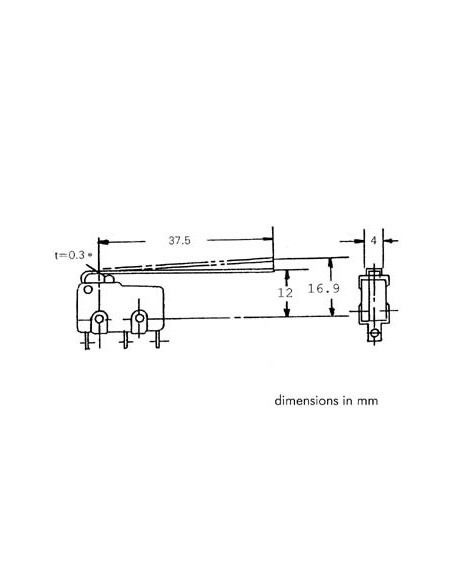

  • dimensions: 10.2 x 19.8 x 6.4mm


  • EAN: 5410329571276
