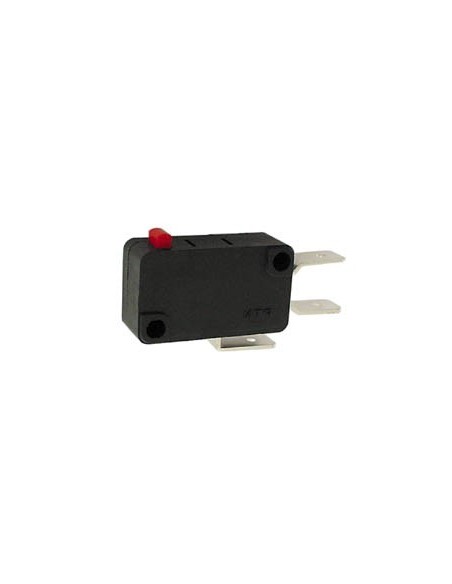

MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR
MICROSWITCH 12A, NO ACTUATOR

MICROSWITCH 12A, NO ACTUATOR

MS12
Out-of-Stock
€2.81
Tax included
MICROSWITCH 12A, NO ACTUATOR


Specification(s):
  • no actuator
Feature(s):
  • operating force: 60g
  • contact resistance: initially max. 15M ohms
  • insulation resistance: min. 100M ohms (at 500VDC)
  • dielectric strength: 1000VAC for 1 minute
  • mechanical life: min. 1 000 000 operations
  • electrical life: min. 100 000 operations (full load)

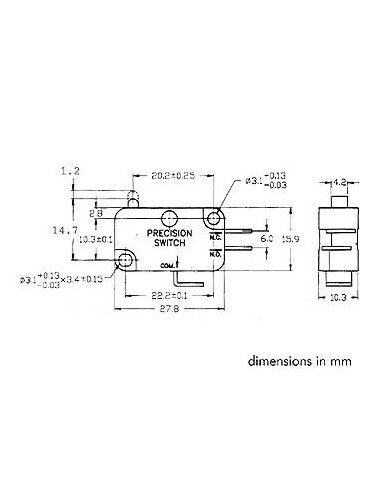

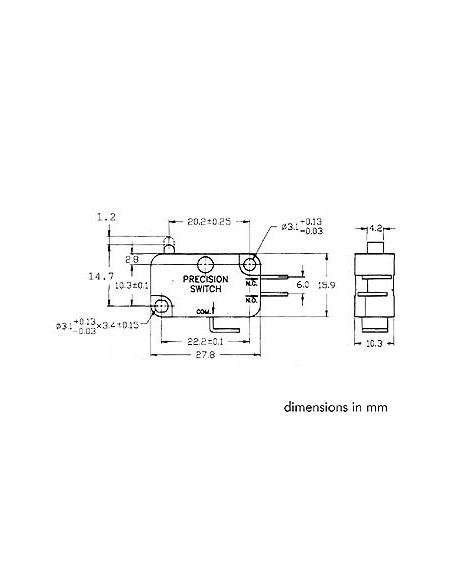

  • dimensions: 15.9 x 27.8 x 10.3mm
  • ratings: 12A / 125VAC, 6A / 250VAC
  • return force: 7g


  • EAN: 5410329596873
