MS12-L
Available
€2.81
Tax included

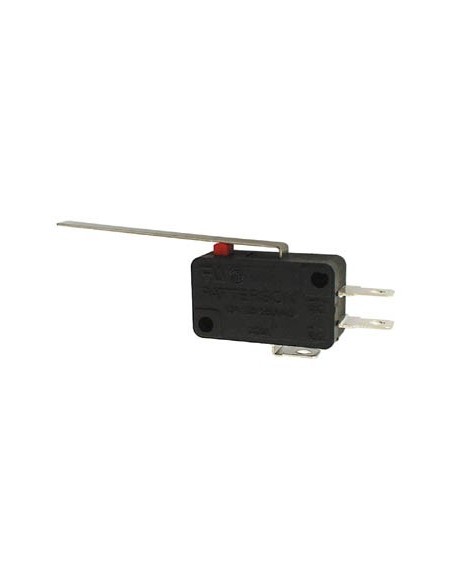

MICROSWITCH 12A, LONG LEVER


Specification(s):
  • long lever
Feature(s):
  • operating force: 60g
  • contact resistance: initially max. 15M ohms
  • insulation resistance: min. 100M ohms (at 500VDC)
  • dielectric strength: 1000VAC for 1 minute
  • mechanical life: min. 1 000 000 operations
  • electrical life: min. 100 000 operations (full load)

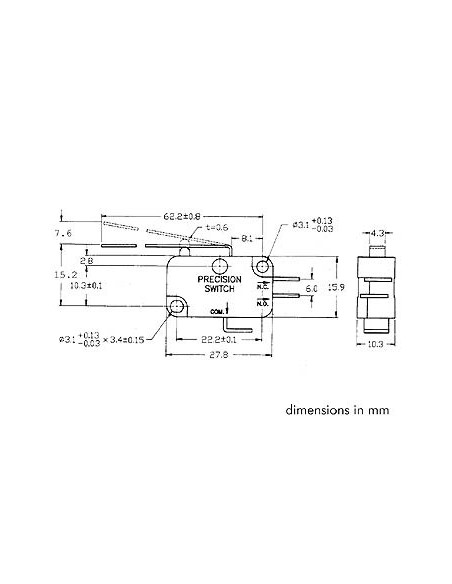

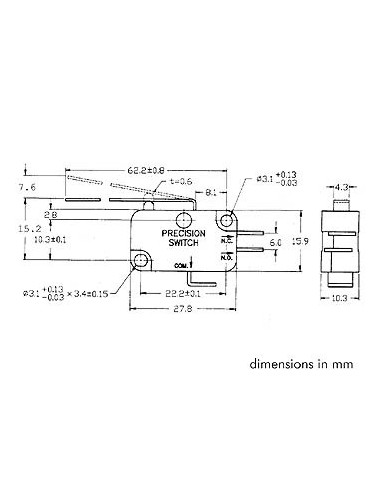

  • dimensions: 15.9 x 27.8 x 10.3mm
  • ratings: 12A / 125VAC, 6A / 250VAC
  • return force: 7g


  • EAN: 5410329666033
