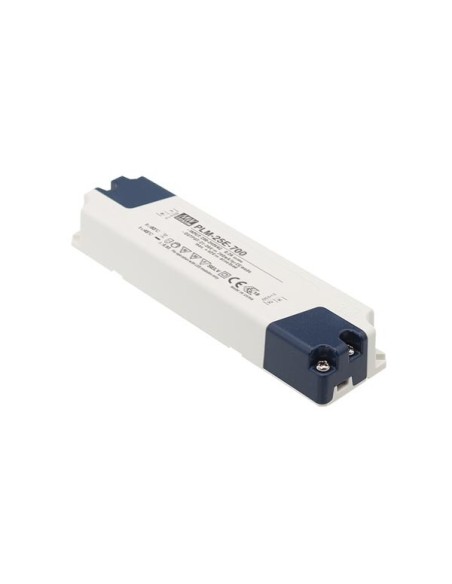

Constant Current LED Driver - Single Output - 700 mA - 25 W

PLM-25 is a 25 W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-25 provides a high power factor value greater than 0.9. In addition, with the low no load power consumption below 0.5 W, and the setup time less than 500 ms, PLM-25 is complied with the ERP regulation required by European Union for lighting fixtures. PLM-25 is a class II (without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types of models with different input voltage range are offered: PLM-25 series, which operates from 110-295 VAC, and PLM-25E series, which operates from 180-295 VAC. These two series are both constant current output design, supplying models with the current of 350 mA, 500 mA, 700 mA and 1050 mA, respectively.

Specification(s):

• 230 VAC only or full range (up to 295 VAC) models available
• built-in active PFC function
• constant current design
• protections: short circuit
• cooling by free air convection
• fully isolated plastic case
• class II power unit, no FG
• class 2 power unit (for PLM-25-500/700/1050)
• no load power consumption < 0.5W
• high reliability, low cost

Feature(s):

• Physical properties
• Number of outputs: 1
• Housing type: Enclosed
• Electrical data
• Output current rating: 700 mA
• Output power rating: 25.2 W
• Technical data
• Series: PLM
• Input efficiency: 85 %
• Dimmable: No
• Set-up options
• Dimming type: No dimming
• Environmental data
• IP rating: IP30
• Power supply
• Input current rating: 0.15 A
• Input voltage rating VAC: 180-295 V
• Output voltage rating VDC: 21-36 V
• Technology type: Constant current mode
• Input voltage rating VDC: 254-417 V
• Product basic info
• Colour: White
• Additional colour: Blue
• Depth: 145 mm
• Height: 22 mm
• Weight: 110 g
• Width: 38 mm

• EAN: 8720207870412
