CONSTANT CURRENT LED DRIVER - DIMMABLE -  SINGLE OUTPUT - 1400 mA - 40 W
CONSTANT CURRENT LED DRIVER - DIMMABLE -...

CONSTANT CURRENT LED DRIVER - DIMMABLE - SINGLE OUTPUT - 1400 mA - 40 W

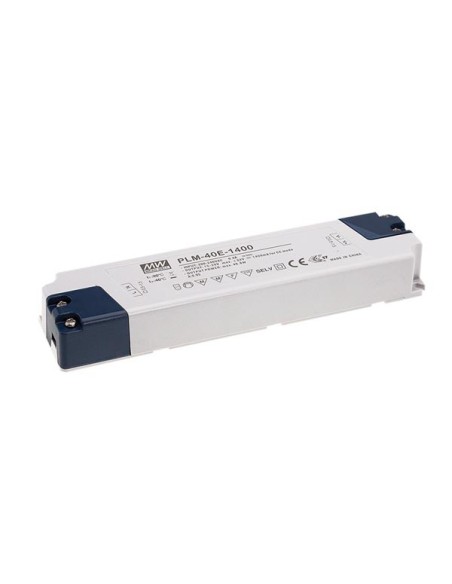

PLM-40E-1400
Available
€20.96
Tax included
CONSTANT CURRENT LED DRIVER - DIMMABLE - SINGLE OUTPUT - 1400 mA - 40 W


Specification(s):
  • 230 VAC only or full range (up to 295 VAC) models available
  • built-in active PFC function
  • constant current design
  • protections: short circuit
  • cooling by free air convection
  • fully isolated plastic case
  • class II power unit, no FG
  • no load power consumption <0.5W
  • high reliability, low cost
Feature(s):
  • output:
  • rated current: 1400 mA
  • operating voltage range: 15 - 29 V
  • current accuracy: 8.0 %
  • rated power: 40.6 W
  • ripple & noise (max): 3 Vp-p
  • no load output voltage: 34 V
  • setup time: 500 ms / 230 VAC at full load
  • input:
  • voltage range: 180 - 295 VAC, 254 - 417 VDC
  • frequency range: 47 - 63 Hz
  • power factor: PF > 0.95 / 230 VAC, PF > 0.9 / 277 VAC (at full load)
  • total harmonic: THD < 20% when output loading > 60% at 230 VAC input and output loading > 75% at 277 VAC input
  • efficiency: 86 %
  • AC current: 0.3 A/ 230 VAC, 0.25 A / 277 VAC
  • inrush current: cold start 15 A (twidth=50µs measured at 50% Ipeak) at 230 VAC
  • MAX. No. of PSUs on 16A circuit breaker: 47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230 VAC
  • leakage current: < 0.5 mA / 240 VAC
  • protection:
  • short circuit: hiccup mode, recovers automatically after fault condition is removed
  • over temperature: hiccup mode, recovers automatically after temperature goes down
  • environment:
  • working temperature: -30 - +40 °C
  • working humidity: 20 - 95% RH non-condensing
  • storage temperature, humidity: -40 - +80 °C, 10 - 95% RH
  • temperature coefficient: ±0.06% / °C (0 - 40 °C)
  • vibration: 10 - 500Hz, 2G 10min. / 1cycle, period for 60min. each along X, Y, Z axes
  • safety & EMC:
  • safety standards: UL8750, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1),IP30 approved
  • withstand voltage: I/P-O/P:3.75K VAC
  • isolation resistance: I/P-O/P:100M Ohms / 500 VDC / 25 °C / 70% RH
  • EMC emission: compliance to EN55015, GB17743, GB17625.1,EN61000-3-2 Class C(> 75% load);EN61000-3-3
  • EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11;EN61547, light industry level, criteria B(surge 2KV)
  • others:
  • MTBF: 822.7K hrs min. MIL-HDBK-217F (25 °C)
  • dimensions: 175 x 42 x 24 mm (L x W x H)


  • EAN: 5410329691141
