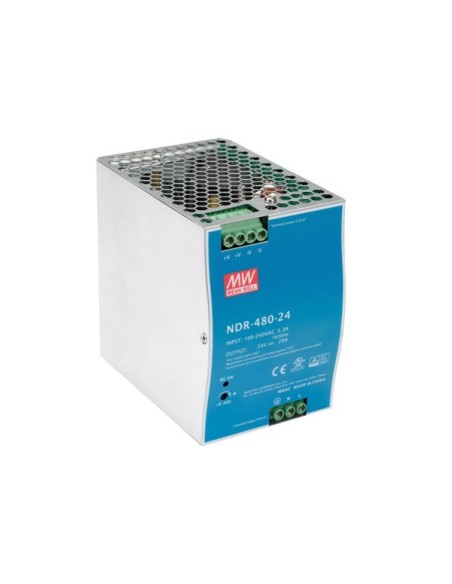

480 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 V 20 A
NDR-480-24
Available
€179.01
Tax included
480 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 V 20 A
The NDR-480 series is an economical slim 480 W Din rail power supply series that can be installed on TS-35/7.5 or TS-35/15 mounting rails.
With a body width of 85.5 mm, the device allows space saving @@@inside the cabinets.
The series adopts the full range AC input from 90 VAC to 264 VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
NDR-480 has a metal housing to enhance power dissipation.
With working efficiency up to 93%, the series can operate at the ambient temperature between -20 °C and 70 °C under air convection.
It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications.
Its protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, etc.) make the NDR-480 a very competitive power supply solution for industrial applications.
Specification(s):
Specification(s):
- with universal AC input / full range
- protection: short circuit / overload / over voltage / thermal
- can be installed on DIN rail TS-35/7.5 or TS-35/15
- industrial control equipment (UL 508) approved
- EN61000-6-2 (EN50082-2) industrial immunity level
- 100% full load burn-in test
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Electrical data
- Output current rating: 20 A
- Output power rating: 480 W
- Technical data
- Input efficiency: 92.5 %
- Mounting type: DIN rail
- Power supply series: NDR
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 4.8 A
- Input current rating at 230 VAC: 2.4 A
- Input voltage rating VAC: 90-264 V
- Output voltage rating VDC: 24 V
- Range input frequency: 47-63 Hz
- Input voltage rating VDC: 127-370 V
- Product basic info
- Colour: Grey
- Depth: 128.5 mm
- Height: 125.5 mm
- Weight: 1500 g
- Width: 85.5 mm
- Material: Flame-retardant PC (polycarbonate)
- EAN: 8720207878500
