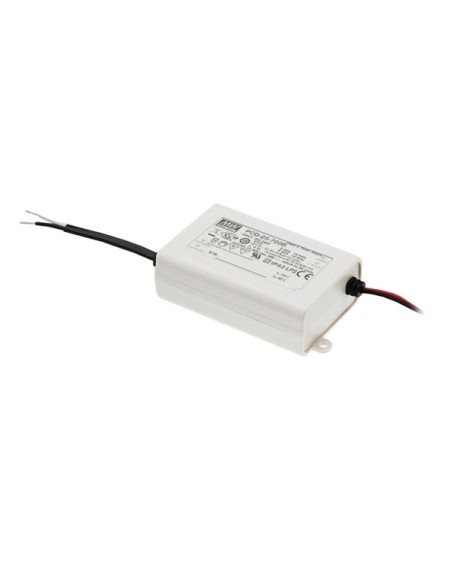

CONSTANT CURRENT LED DRIVER - DIMMABLE - SINGLE OUTPUT - 350 mA - 25 W
PCD-25-350B
Available
€37.96
Tax included
CONSTANT CURRENT LED DRIVER - DIMMABLE - SINGLE OUTPUT - 350 mA - 25 W
Specification(s):
- AC phase-cut dimming
- work with leading edge and trailing edge TRIAC dimmers
- 115 VAC or 230 VAC models available
- built-in active PFC function
- constant current design
- protections: short circuit / over temperature
- cooling by free air convection
- fully isolated plastic case
- IP42 design
- class II power unit, no FG
- suitable for LED related fixture or appliance
- 100% full load burn-in test
- high reliability, low cost
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 350 mA
- Output power rating: 20.3 W
- Technical data
- Series: PCD
- Input efficiency: 82 %
- Dimmable: Yes
- Set-up options
- Dimming type: AC phase cut
- Environmental data
- IP rating: IP42
- Power supply
- Input current rating: 0.3 A
- Input voltage rating VAC: 115-277 V
- Output voltage rating VDC: 40-48 V
- Technology type: Constant current mode
- Product basic info
- Colour: White
- Depth: 84 mm
- Height: 29.5 mm
- Weight: 160 g
- Width: 57 mm
- EAN: 8720207840262
