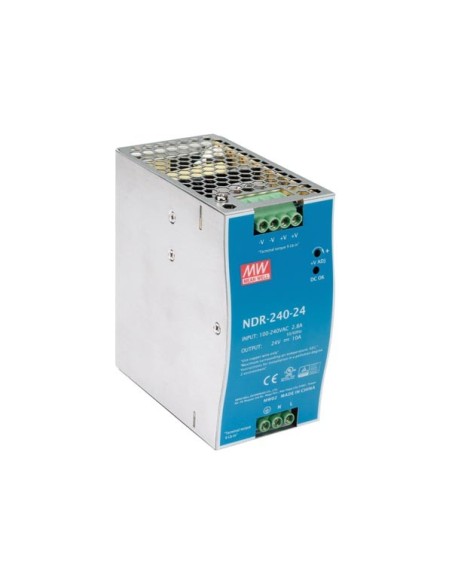

240 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 V 10 A

NDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -20°C and 70 °C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make NDR-240 a very competitive power supply solution for industrial applications.

Specification(s):

• with universal AC input / full range
• protection: short circuit / overload / over voltage / thermal
• can be installed on DIN rail TS-35/7.5 or TS-35/15
• industrial control equipment (UL 508) approved
• EN61000-6-2(EN50082-2) industrial immunity level
• 100% full load burn-in test
• [b]for professional use only[/b]
• This device must be installed by a qualified person.

Feature(s):

• Physical properties
• Number of outputs: 1
• Electrical data
• Output current rating: 10 A
• Output power rating: 240 W
• Technical data
• Input efficiency: 88.5 %
• Mounting type: DIN rail
• Power supply series: NDR
• Environmental data
• IP rating: IP20
• Usage location: Indoor only
• Power supply
• Input current rating at 115 VAC: 2.5 A
• Input current rating at 230 VAC: 1.3 A
• Input voltage rating VAC: 90-264 V
• Output voltage rating VDC: 24 V
• Range input frequency: 47-63 Hz
• Input voltage rating VDC: 127-370 V
• Product basic info
• Colour: Grey
• Depth: 113.5 mm
• Height: 125.2 mm
• Weight: 1000 g
• Width: 63 mm
• Material: Flame-retardant PC (polycarbonate)

• EAN: 8720207891264
