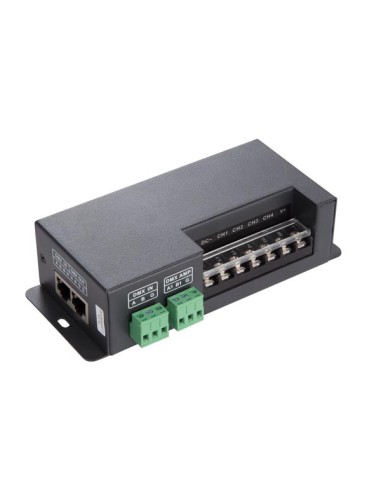

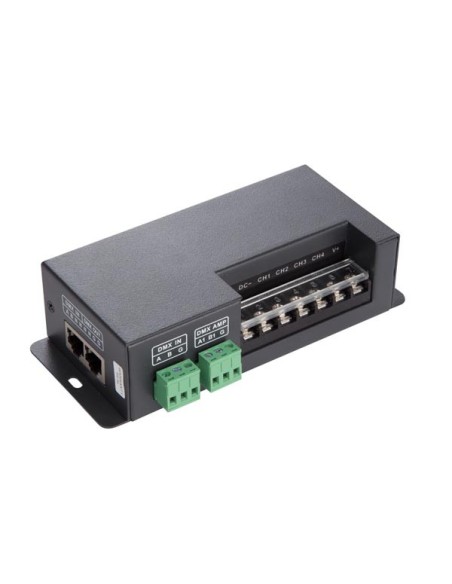

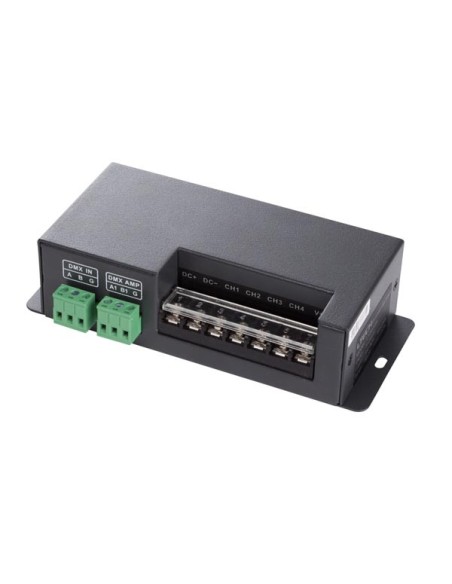

HIGH POWER DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS
HIGH POWER DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS
HIGH POWER DMX CONTROLLER FOR LED STRIPS - 4...
HIGH POWER DMX CONTROLLER FOR LED STRIPS - 4...

HIGH POWER DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS

CHLSC26
Out-of-Stock
€99.96
Tax included
HIGH POWER DMX CONTROLLER FOR LED STRIPS - 4 CHANNELS


Specification(s):
  • 4 channel DMX controller for LED strips
  • single colour: 4 strips
  • RGBW: 1 strip
  • DMX or test program selection via DIP switches
Feature(s):
  • Physical properties
  • Number of channels: 4
  • Light colour range LED: RGBW
  • Number of outputs: 4
  • Electrical data
  • Maximum LED output current per output: 6 A
  • Maximum current rating: 24 A
  • Protection: Overload, Short-circuit
  • Output power rating 5 V: 120 W
  • Output power rating 12 V: 288 W
  • Output power rating 24 V: 576 W
  • LED dimmer output type: CV-PWM
  • Overload protection: No
  • Reverse polarity: Yes
  • Technical data
  • Protocol type: DMX, RDM
  • Mounting type: Screw, Surface mount
  • Dimming curve: Linear
  • Set-up options
  • Dimming range: 0-100 %
  • Driver configuration: DIP switches
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Operating temperature: -30-55 °C
  • Operational properties
  • Instruction manual languages: English
  • Restart after protection: No
  • Connections
  • Wire size: 2.5 mm²
  • IT connections
  • Connection type: Green terminal
  • Power supply
  • Input voltage rating VDC: 5-24 V
  • Included
  • Power adapter/charger: No
  • Product basic info
  • Colour: Black
  • Additional colour: Green
  • Depth: 163 mm
  • Height: 78 mm
  • Weight: 430 g
  • Width: 40 mm
  • Material: Metal
  • Additional material: ABS


  • EAN: 5410329667801
