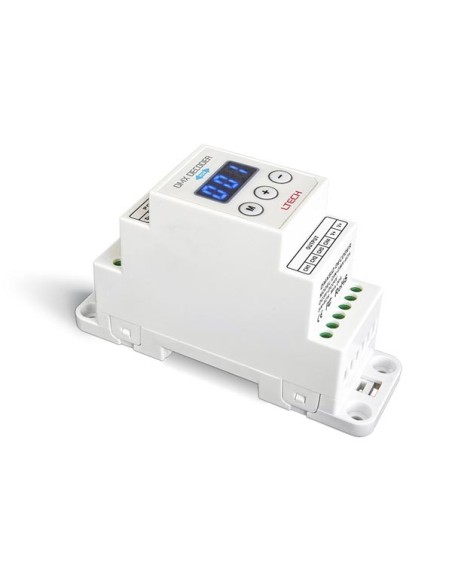

DMX 4 CHANNEL LED DIMMER FOR DIN RAIL
DMX 4 CHANNEL LED DIMMER FOR DIN RAIL

DMX 4 CHANNEL LED DIMMER FOR DIN RAIL

CHLSC10N
Available
€99.96
Tax included
DMX 4 CHANNEL LED DIMMER FOR DIN RAIL


Specification(s):
  • ideal for use with RGBW LED strips. See our [link url=https://www.velleman.eu/products/list/?id=456520]website[/link].
  • controls: single colour, two colours, RGB or RGBW LED light
  • setup mode with digital display
Feature(s):
  • general:
  • functions: DIN-Rail, RDM
  • electronics:
  • input voltage: 5-24 VDC
  • LED output current (max per output): 4 A
  • current max.: 16 A
  • power supply: not applicable
  • LED output voltage: 5-24 V
  • output power: 80 W @ 5V, 192 W @ 12 V, 384 W @ 24 V
  • lighting:
  • colour range: RGBW
  • control:
  • output: PWM-CV
  • protocol: DMX, RDM
  • dimming range: 0-100%
  • dimming curve: linear
  • driver configuration: buttons control panel
  • number of channels: 4
  • wire type: 2.5 mm²
  • environmental:
  • operating temperature: -30-55 °C
  • approvals:
  • CE: yes
  • FCC: FCC part 15:2013
  • RoHS2: EN1122B:2001, EPA3050B:1996, EPA3052:1996, EPA3060A:1996, EPA3540C:1996, EPA7196A:1992, EPA8270D:2007, IEC62321:2008
  • ingress protection: IP20
  • protection:
  • reverse polarity: yes
  • LED output short circuit: yes
  • overload: yes
  • restart after protection: yes
  • warranty:
  • warranty: 5 year
  • weight & dimensions:
  • width x height x depth: 3.50 x 6.70 x 11.20 cm
  • weight: 0.14 kg


  • EAN: 5410329710774
