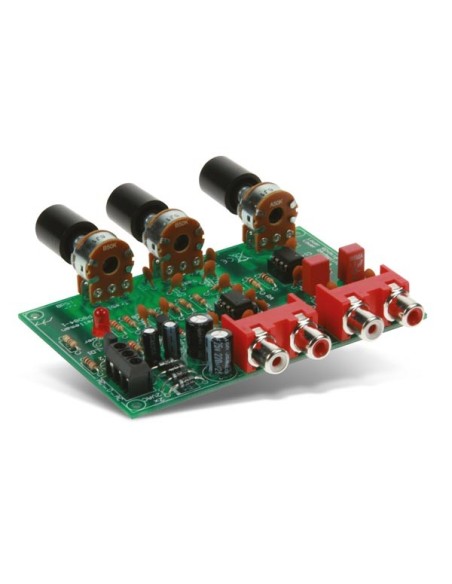

VOLUME AND TONE CONTROL - PREAMPLIFIER
WSAH8084
Available
€19.95
Tax included
VOLUME AND TONE CONTROL - PREAMPLIFIER
When using one of our amplifiers (big or small), you always need a volume control and preferably also a tone control.

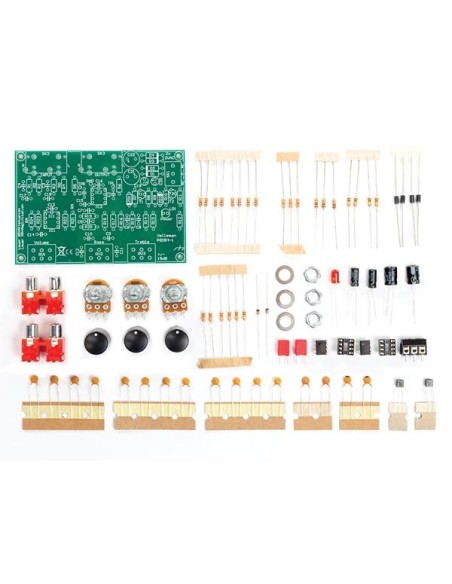

This kit comes complete with all input / output connections and potentiometers.
Furthermore it is possible to amplify or attenuate the input signal.
Specification(s):
Specification(s):
- stereo volume control
- stereo Baxandall bass and treble control
- bass and treble potentiometers with centre click
- customizable attenuation or amplification
- complete with knobs
- Technical data
- Specifications:
- supply voltage: 2 x 12 VAC / 100 mA
- frequency response: 3 Hz - 500 kHz (-3 dB)
- standard amplification: x 1
- signal-to-noise ratio: 98 dB
- total harmonic distortion: < 0.005 % (@ 1 kHz)
- maximum output: 5 Vrms
- tone control:
- + and -15 dB @ 20 Hz
- + and -15 dB @ 15 kHz
- input impedance: 50 kOhm
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Coding skill level: none
- Electronics skill level: 2
- Mechanics skill level: 1
- Soldering skill level: 2
- Product basic info
- Colour: Green
- Depth: 70 mm
- Weight: 115 g
- Width: 105 mm
- EAN: 5410329733216
