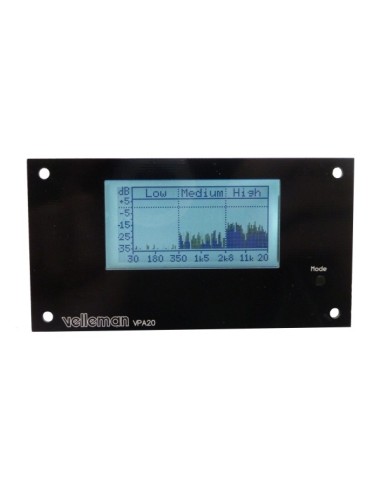

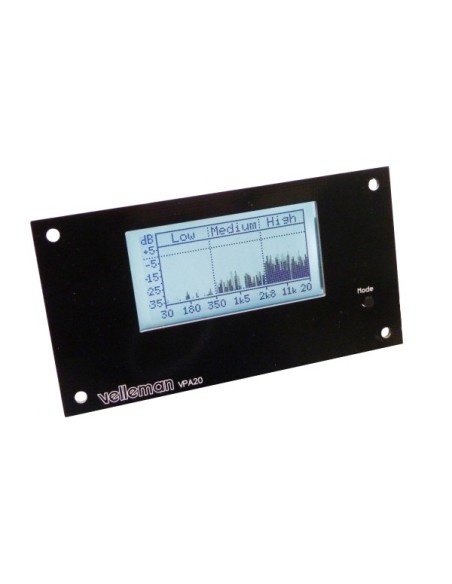

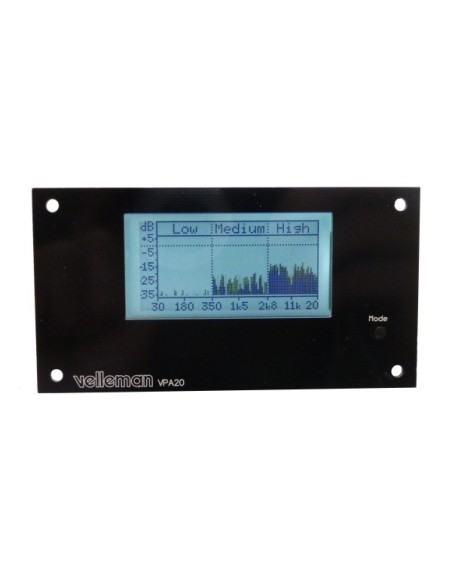

Small and compact unit, ideal for panel mounting.
Give your homemade audio gear a high-tech look. Upgrade existing equipment.
Specification(s):
Specification(s):
- measure:
- peak power
- RMS power
- mean dB
- peak dB

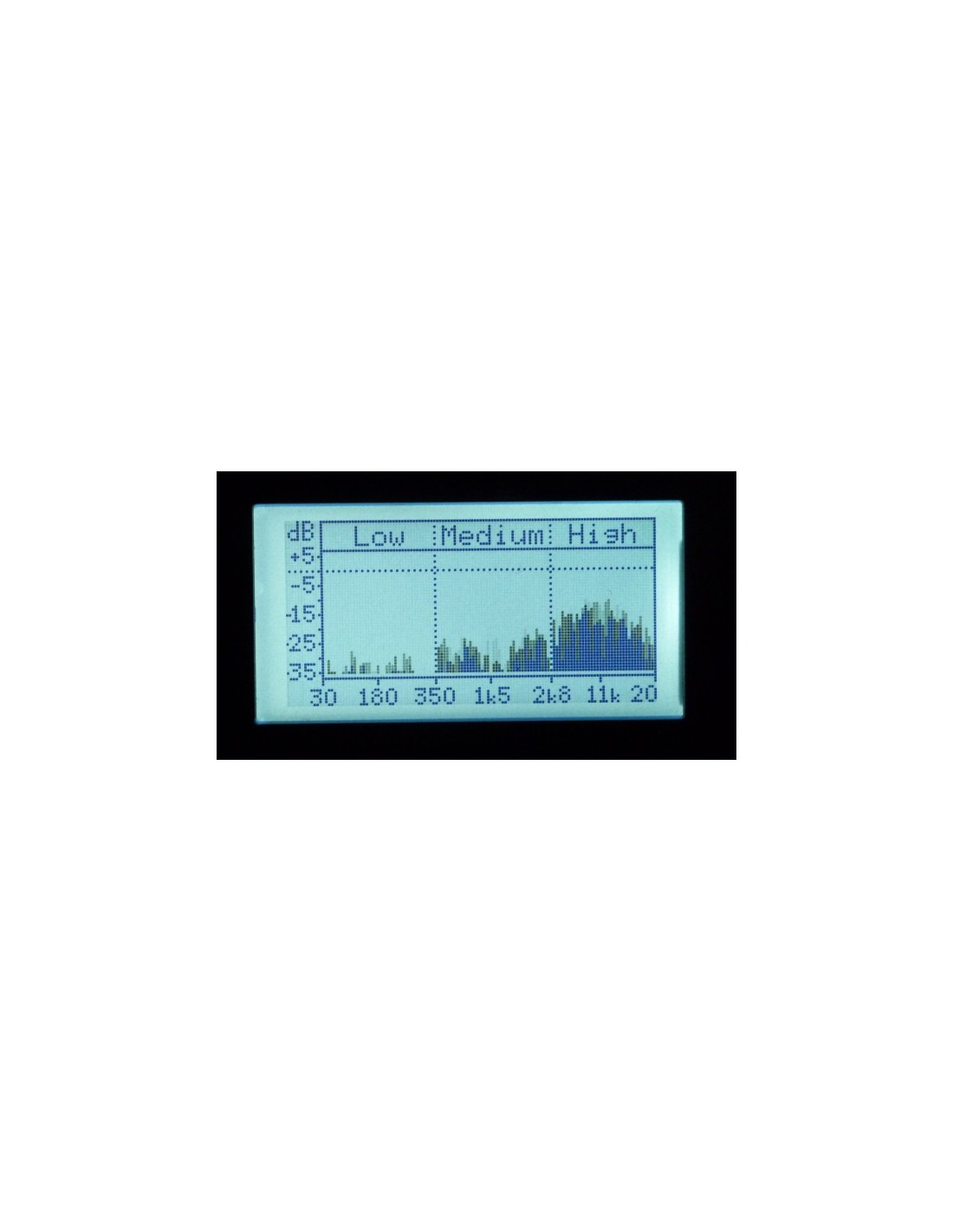

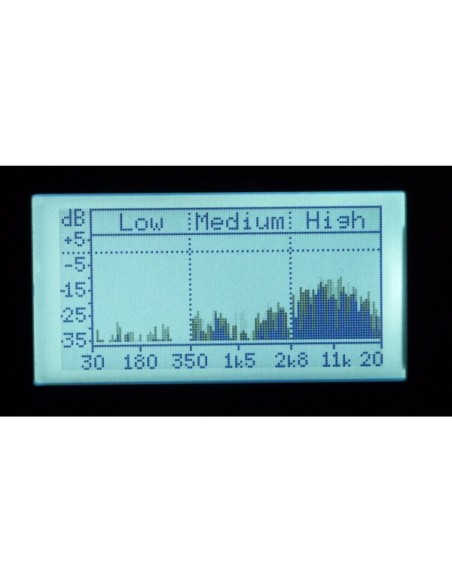

- linear audio spectrum

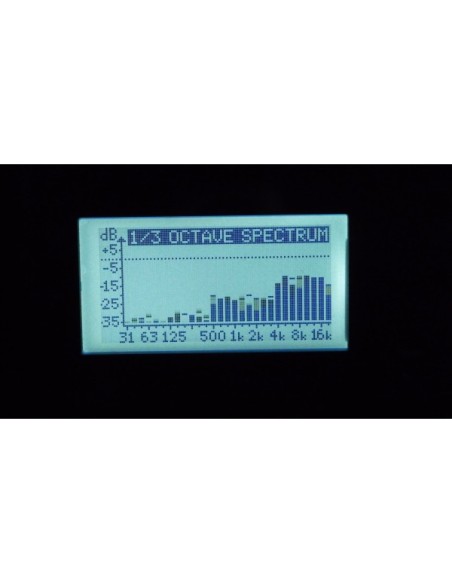

- 1/3 octave audio spectrum
- auto or manual range selection
- peak-hold function
- speaker impedance selection
- language selection
- white backlit LCD

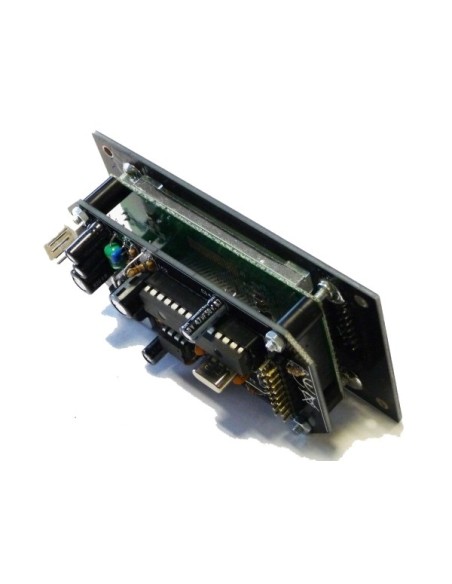

- easy panel mounting
- Technical data
- Specifications:
- power measurement into 2, 4 or 8 Ohm + bridged amp option
- range: 300 mW to 1200 W @ 2 Ohm
- sensitivity: -34 dBu (15.5 mVrms)
- max. input level: 50 Vrms @ 220 k
- frequency range: 20 Hz to 20 kHz
- power supply: 12 VDC / 75 mA
- display: 128 x 64 pixels (46 x 23 mm)
- mounting depth: 35 mm
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Coding skill level: none
- Electronics skill level: 1
- Mechanics skill level: 2
- Soldering skill level: 3
- Product basic info
- Colour: Black
- Additional colour: White
- Depth: 51 mm
- Weight: 116 g
- Width: 98 mm
- EAN: 5410329733230
