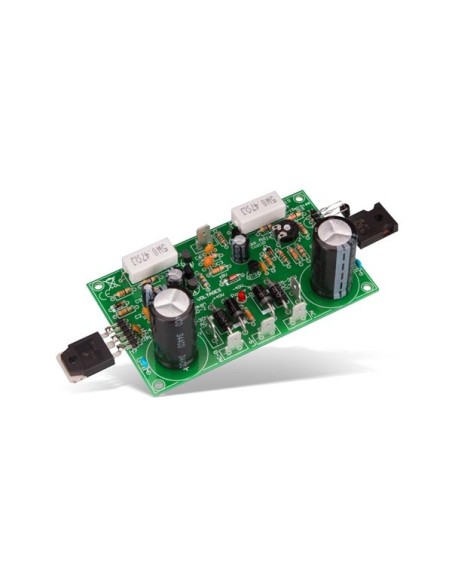

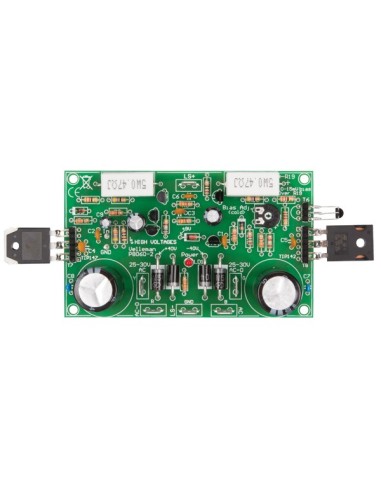

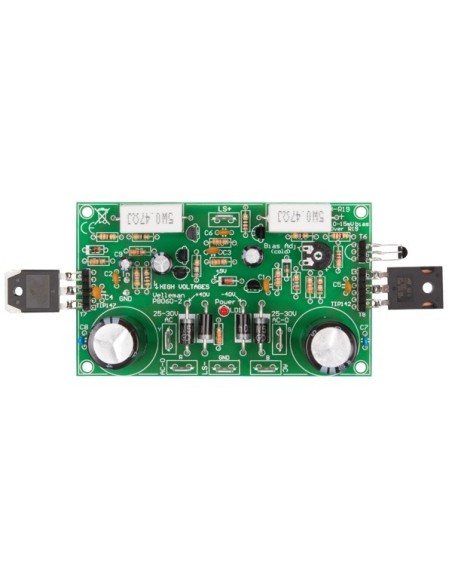

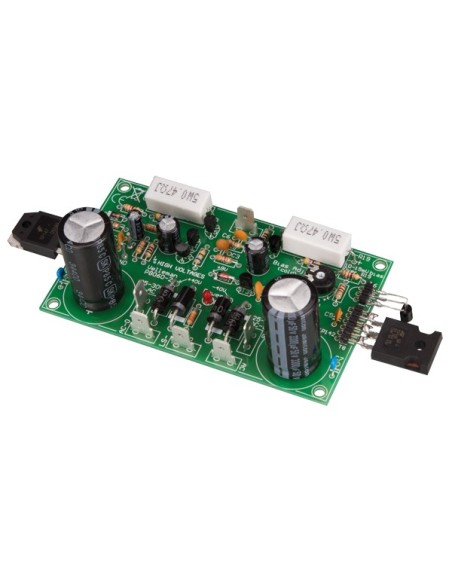

Discrete power amplifier - 200 W

200 W power amplifier Excellent value for money. Fully discrete design with epitaxial Darlington transistors. DC supply circuit with LED indication. Ideal for active speaker systems or subwoofers, guitar amps, home theatre systems, etc. 200 W music power @ 4 ohms. 100 W rms power @ 4 ohms. 70 W rms power @ 8 ohms. Distortion: 0.02 % @ 1 kHz/10 W. Frequency response: 3 Hz to 200 kHz (-3 dB). S/R ratio: 115 dB. Power supply: 2x 25-30 VAC/120 VA. Dimensions PCB: ± 107 x 62 mm. Recommended transformer: 12030. Recommended heatsink: HSVM100 (pre-drilled) or S44/75 (not pre-drilled).

Specification(s):

• Excellent value for money.
• Fully discrete design using epitaxial Darlington transistors.
• Onboard DC supply circuit with LED indication.

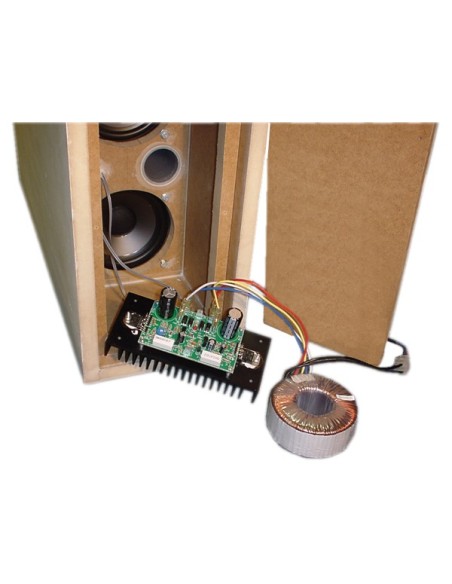

• Ideal for active speaker systems or subwoofers, guitar amps, home theatre systems, instrument amps, etc.

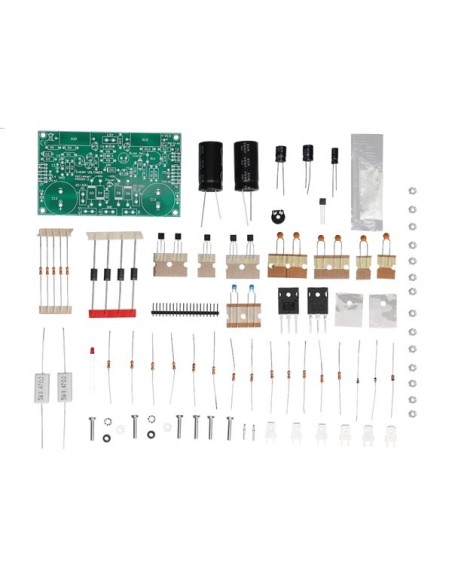

• Comes complete with transistor isolators, spacers and bolts.
• Overload and short-circuit protection.
• OPTIONAL HEATSINK REQUIRED! Also available as a completely mounted module HSVM100.

Feature(s):

• Technical data
• Specifications:
  • 200 W music power @ 4 Ohm load
  • 100 Wrms power @ 4 Ohm load
  • 70 Wrms power @ 8 Ohm load
  • distortion: 0.02 % @ 1 kHz / 10 W
  • damping factor: > 800
  • frequency response: 3 Hz to 200 kHz (-3 dB)
  • sensitivity: 0.6 Vrms
  • signal-to-noise ratio: 115 dB
  • power supply: 2 x 25 - 30 VAC / 120 VA

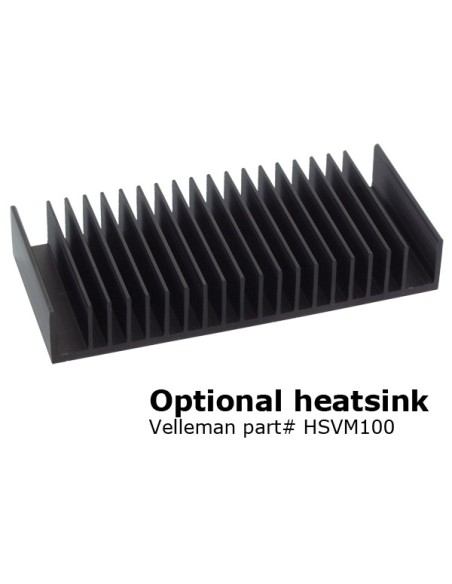

  • recommended heatsink: HSVM100
  • recommended power transformer:
    • 230 VAC input, 2 x 30 VAC output
    • 115 / 230 VAC input, 2 x 25 VAC output (output power reduced by ± 15 %)
• Operational properties
• Instruction manual languages: Dutch, English, French, German, Spanish
• Coding skill level: none
• Electronics skill level: 2
• Mechanics skill level: 2
• Soldering skill level: 2
• Product basic info
• Colour: Green
• Depth: 107 mm
• Weight: 140 g
• Width: 62 mm

• EAN: 5410329730437
