Specification(s):
- excellent value for money
- fully discrete design using Epitaxial Darlington transistors
- DC supply circuit on board with LED indication
- ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
- comes fully adjusted and tested
- overload and short-circuit protection
- Technical data
- Specifications:
- 200 W music power @ 4 Ohm load
- 100 Wrms power @ 4 Ohm load
- 70 Wrms power @ 8 Ohm load
- distortion: 0.02 % @ 1 kHz / 10 W
- damping factor: > 800
- frequency response: 3 Hz to 20 kHz (-3 dB)
- sensitivity: 0.6 Vrms
- signal-to-noise ratio: 115 dB
- power supply: 25 - 30 VAC 120 VA

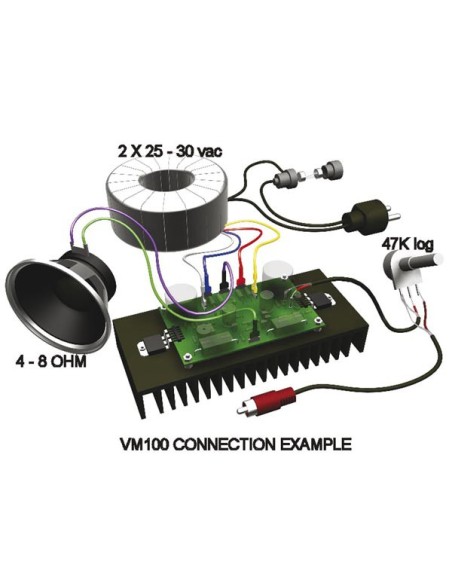

- recommended power transformer:
- 230 VAC input, 2 x 30 VAC output
- 115 / 230 VAC input, 2 x 25 VAC output (output power reduced by ± 15 %)
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Coding skill level: none
- Electronics skill level: 2
- Mechanics skill level: 2
- Soldering skill level: none
- Product basic info
- Colour: Green
- Depth: 62 mm
- Weight: 600 g
- Width: 107 mm
- EAN: 5410329732813
