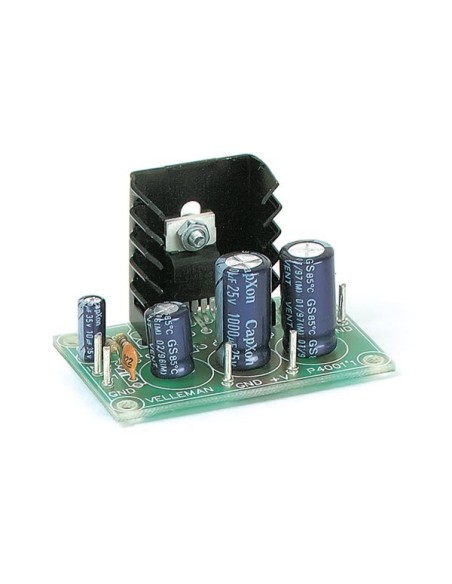

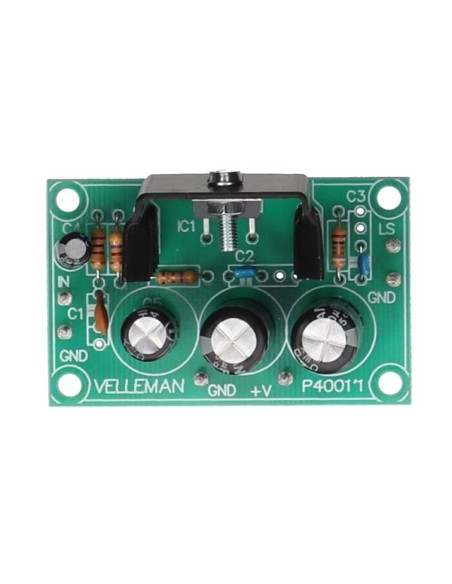

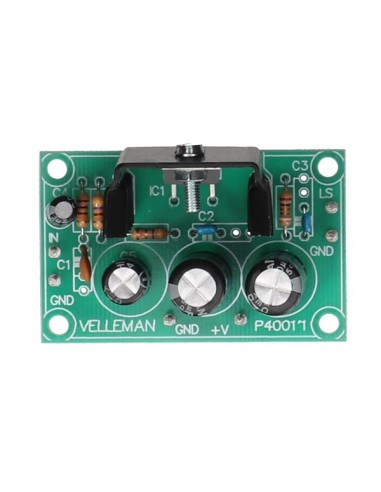

This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4ohms. The IC is completely thermally and short-circuit protected. A conventional direct current can be connected as supply.
Specification(s):
Specification(s):
- also available in kit version: [product name=WSAH4001][/product]
- Technical data
- Specifications:
- music power output: 7 W / 4 Ohm
- output: 3.5 Wrms / 4 Ohm or 2 Wrms / 8 Ohm
- total harmonic distortion: 0.05 % (1 W / 1 kHz)
- frequency response: 20 Hz to 20 kHz (-3 dB)
- signal-to-noise ratio: 86 dB (A-weighted)
- input sensitivity: 40 mV / 150 kOhm
- overload and short-circuit protected
- supply voltage: 15 VDC (8 to 18 VDC possible) / 0.5 A
- Operational properties
- Instruction manual languages: English
- Coding skill level: none
- Electronics skill level: 2
- Mechanics skill level: 1
- Soldering skill level: none
- Product basic info
- Colour: Green
- Depth: 35 mm
- Weight: 48 g
- Width: 55 mm
- EAN: 5410329732820
