STEREO AMPLIFIER MODULE 2 x 30W
STEREO AMPLIFIER MODULE 2 x 30W

STEREO AMPLIFIER MODULE 2 x 30W

VM113
Out-of-Stock
€25.56
Tax included
STEREO AMPLIFIER MODULE 2 x 30W

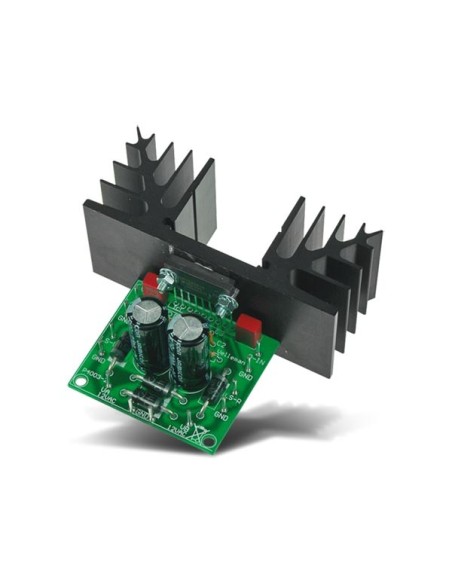

This small amplifier is constructed with the TDA2616 IC, with a maximum supply capability of 2 x 15Wrms (4 ohm) of 2 x 10Wrms (8 ohm). The IC is thermally and short-circuit protected. Additional rectifier and smoothing filter are unnecessary, as alternating current can be directly connected to the unit.

Specification(s):
  • also available in kit version: [product name=K4003]K4003[/product]
Feature(s):
  • music power output: 2 x 30W / 4ohm
  • RMS output: 2 x 15Wrms / 4ohm or 2 x 10Wrms / 8ohm
  • total harmonic distortion: 0.07% (1W / 1kHz)
  • channel separation: 70dB
  • frequency response: 7Hz to 60kHz (-3dB)
  • signal-to-noise ratio: 98dB (A-weighted)
  • input sensitivity: 300mV / 150Kohm
  • transient suppression on/off switch
  • overload and short-circuit protection: max. 1h
  • supply voltage: 2 x 12Vac / 2A (50W transfo recommended)
  • dimensions: 70 x 50mm


  • EAN: 5410329310974
