PSWRU500
Out-of-Stock
€1.71
Tax included
RESETTABLE FUSE 5.0-10.0A / 30Vdc

The minimum purchase order quantity for the product is 5.


The PTC resistor resets automatically and protects your circuit permanently.

Specification(s):
  • low resistance
  • high hold current
  • solid state
  • radial leads
Feature(s):
  • hold current Ih (A): 5.00
  • trip current It (A): 10.00

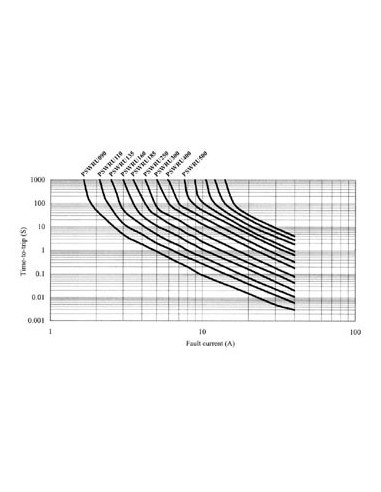

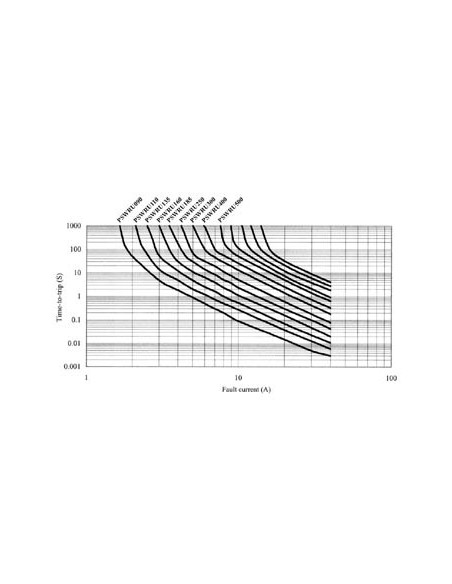

  • max. time to trip (at 5 x Ih): 14.5
  • max. current Imax (A): 40
  • rated voltage Vmax (Vdc): 30
  • typ. power Pd (W): 3.0
  • resistance tolerance:
  • Rmin (ohm): 0.010
  • Rmax. (1 hour after tripping) (ohm): 0.05

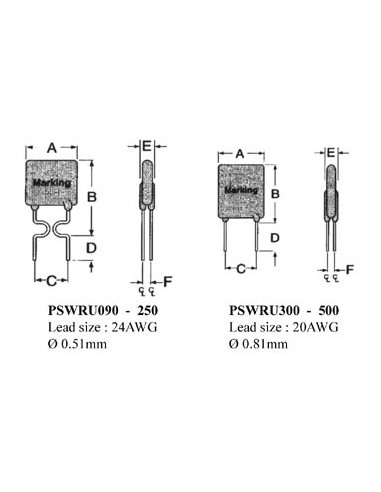

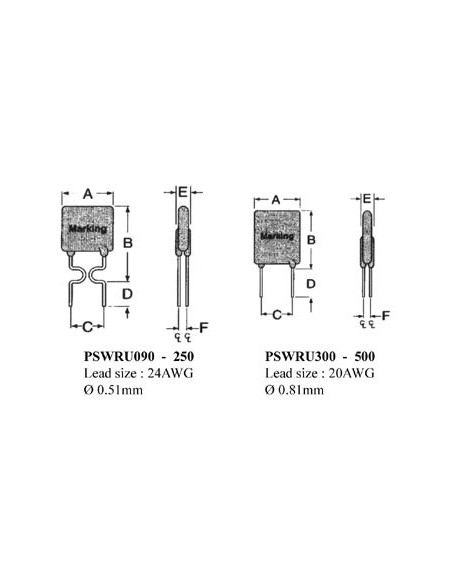

  • dimensions:
  • A (max): 14.0
  • B (max): 24.9
  • C (typ): 10.2
  • D (min): 7.6
  • E (max): 3.0
  • F (typ): 1.2
  • operating current: 900mA ~ 9.0A
  • maximum current: 40A
  • maximum voltage: 30V
  • temperature range: -40°C to +85°C
  • materials:
  • leads: tin-plated copper
  • insulating: flame-retardant epoxy, meets requirement UL-94V-O


  • EAN: 5410329214739
