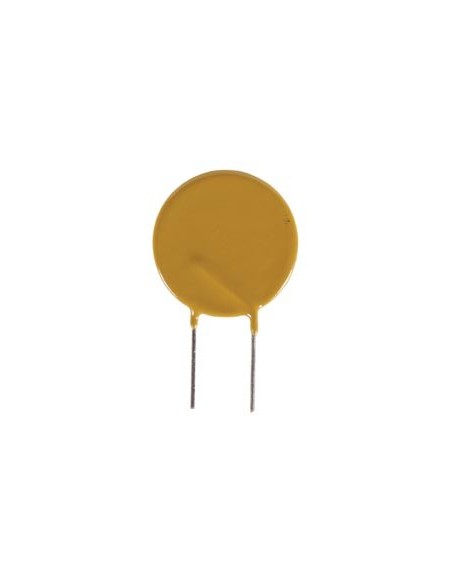

RESETTABLE FUSE 0.4-0.8A / 60Vdc
PSWRX040
Out-of-Stock
€1.10
Tax included
RESETTABLE FUSE 0.4-0.8A / 60Vdc
The PTC resistor resets automatically and protects your circuit permanently.
Specification(s):
Specification(s):
- low hold current
- solid state
- radial leads
- hold current Ih (A): 0.40
- trip current It (A): 0.80

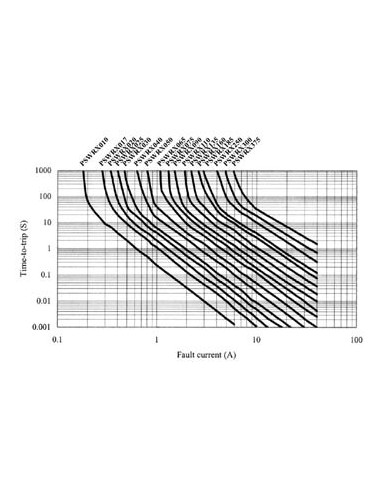

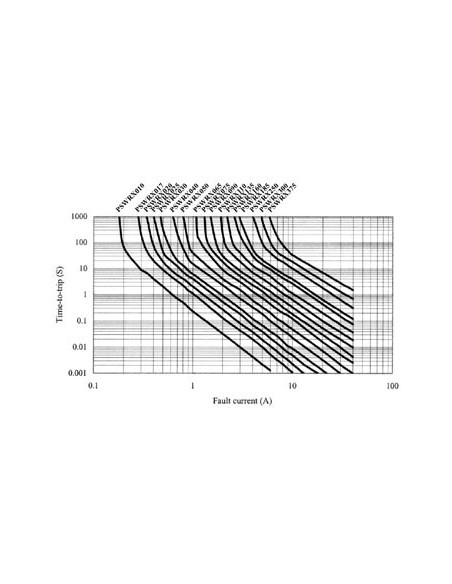

- max. time to trip (at 5 x Ih): 3.8
- max. current Imax (A): 40
- rated voltage Vmax (Vdc): 60
- typ. power Pd (W): 0.56
- resistance tolerance:
- Rmin (ohm): 0.55
- Rmax. (1 hour after tripping) (ohm): 1.29

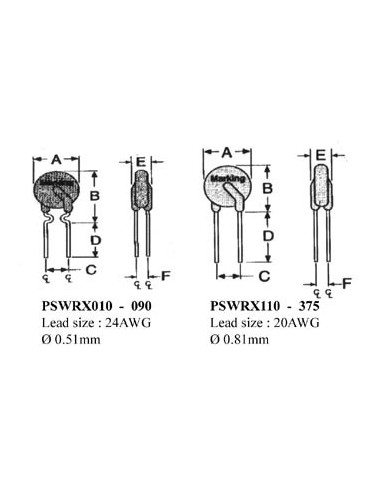

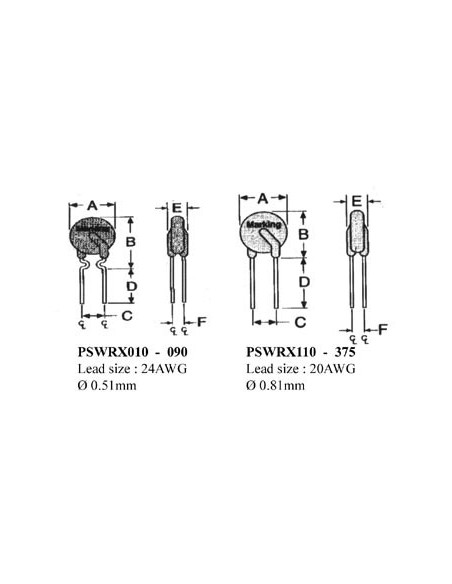

- dimensions:
- A (max): 7.6
- B (max): 13.5
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.1
- F (typ): 1.1
- operating current: 100mA ~ 3.75mA
- maximum current: 40A
- maximum voltage: 60V
- temperature range: -40°C to +85°C
- materials:
- leads: tin-plated copper
- insulation: flame-retardant epoxy, meets requirement UL-94V-O
- EAN: 5410329214166
