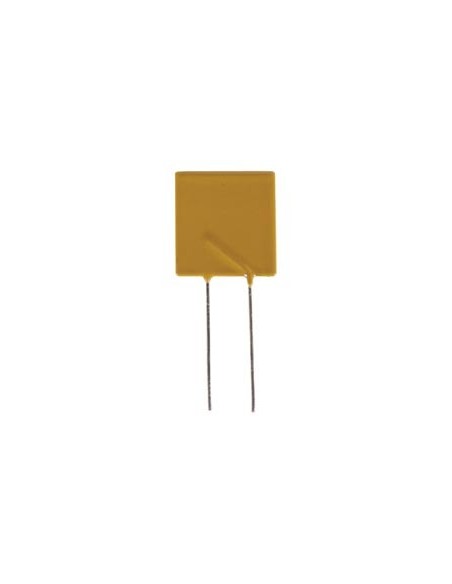

The PTC resistor resets automatically and protects your circuit permanently.
Specification(s):
Specification(s):
- low resistance
- high hold current
- solid state
- radial leads
- hold current Ih (A): 1.85
- trip current It (A): 3.70

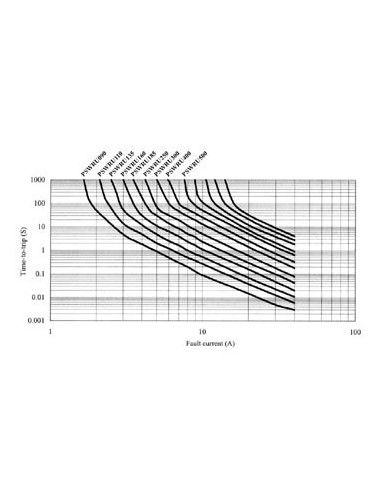

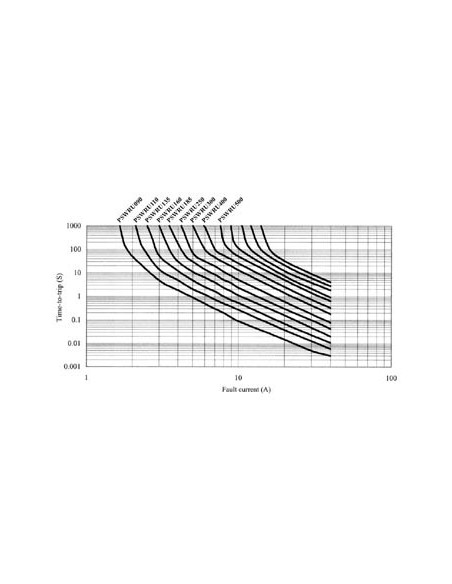

- max. time to trip (at 5 x Ih): 8.7
- max. current Imax (A): 40
- rated voltage Vmax (Vdc): 30
- typ. power Pd (W) : 1.0
- resistance tolerance:
- Rmin (ohm): 0.030
- Rmax. (1 hour after tripping) (ohm): 0.09

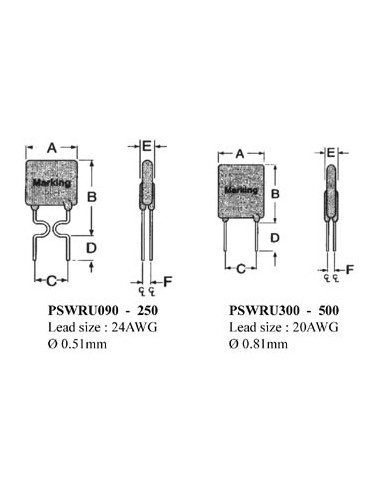

- dimensions:
- A (max): 10.2
- B (max): 15.7
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.0
- F (typ): 0.9
- operating current: 900mA ~ 9.0A
- maximum current: 40A
- maximum voltage: 30V
- temperature range: -40°C to +85°C
- materials:
- leads: tin-plated copper
- insulating: flame-retardant epoxy, meets requirement UL-94V-O
- EAN: 5410329214777
