WMT206
Out-of-Stock
€34.96
Tax included

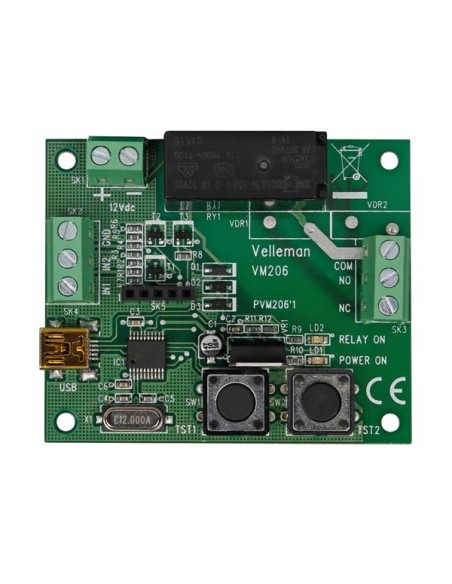

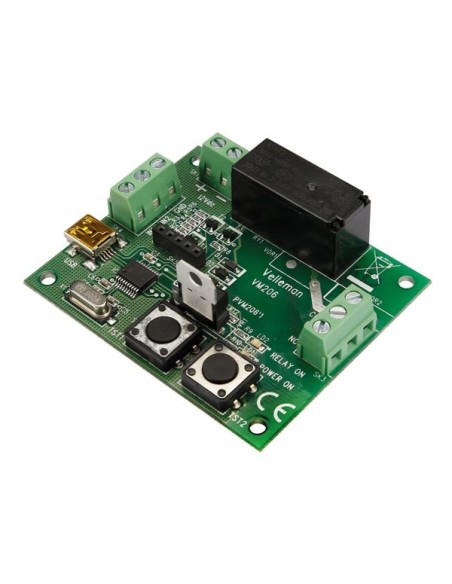

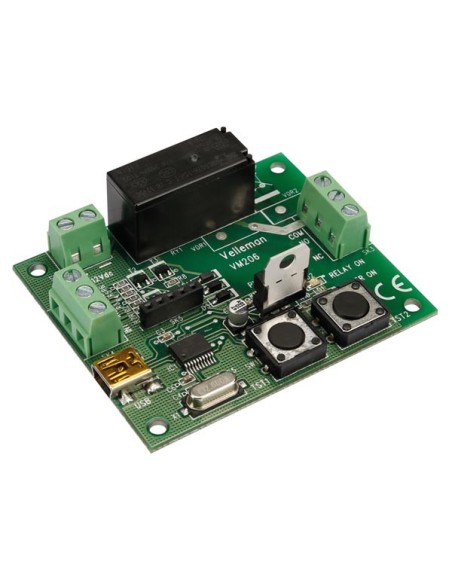

UNIVERSAL TIMER MODULE WITH USB INTERFACE


[b]No timer is universal, except this one.[/b] 2 reasons why this timer is truly universal: 1. The timer supports a wide variety of operating modes. 2. If the built-in modes or delays do not suit your application, you can tailor them to your needs using the supplied PC software.

Specification(s):
  • 10 operating modes:
  • toggle mode
  • start/stop timer
  • staircase timer
  • trigger-at-release timer
  • timer with turn on delay
  • timer with turn off delay
  • single shot timer
  • pulse-pause timer
  • pause-pulse timer

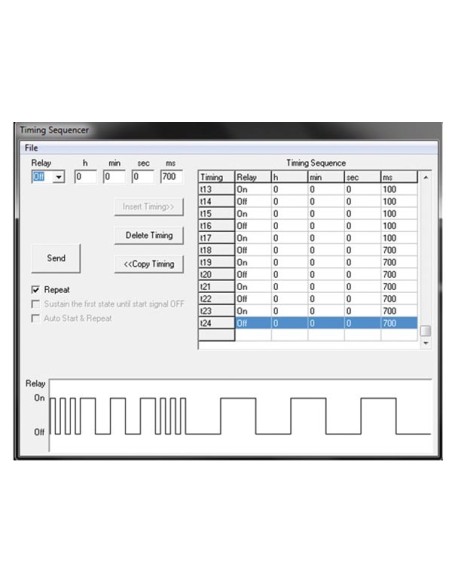

  • custom sequence timer
  • wide timing range

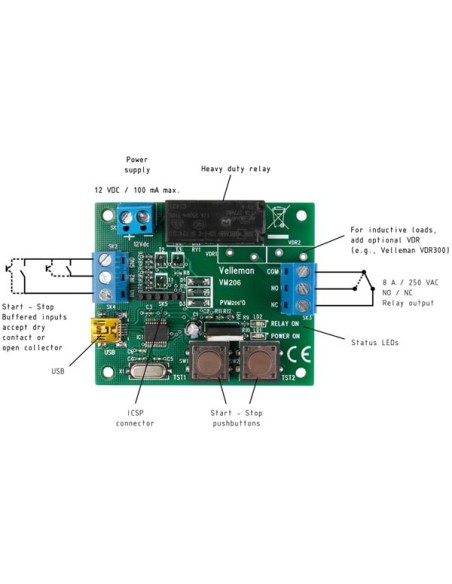

  • buffered inputs for external START / STOP buttons
  • heavy duty relay

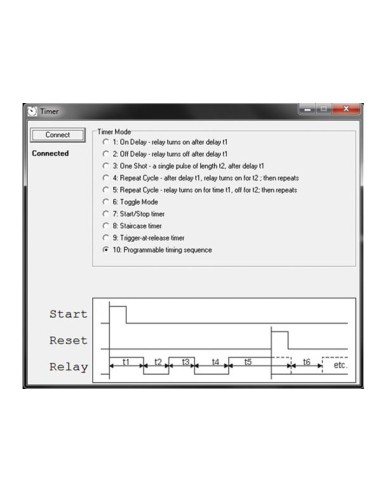

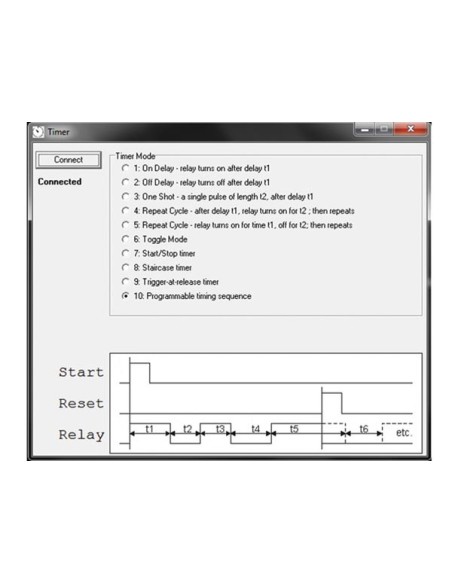

  • PC software for timer configuration and delay setting
  • open source
Feature(s):
  • power supply: 12 VDC (100 mA max.)
  • relay output: 8 A / 250 VAC max.
  • minimum event time : 100 ms
  • maximum event time: 1000 h (over 41 days)
  • dimensions: 68 x 56 x 20 mm (2.6" x 2.2" x 0.8")


  • EAN: 5410329732967
